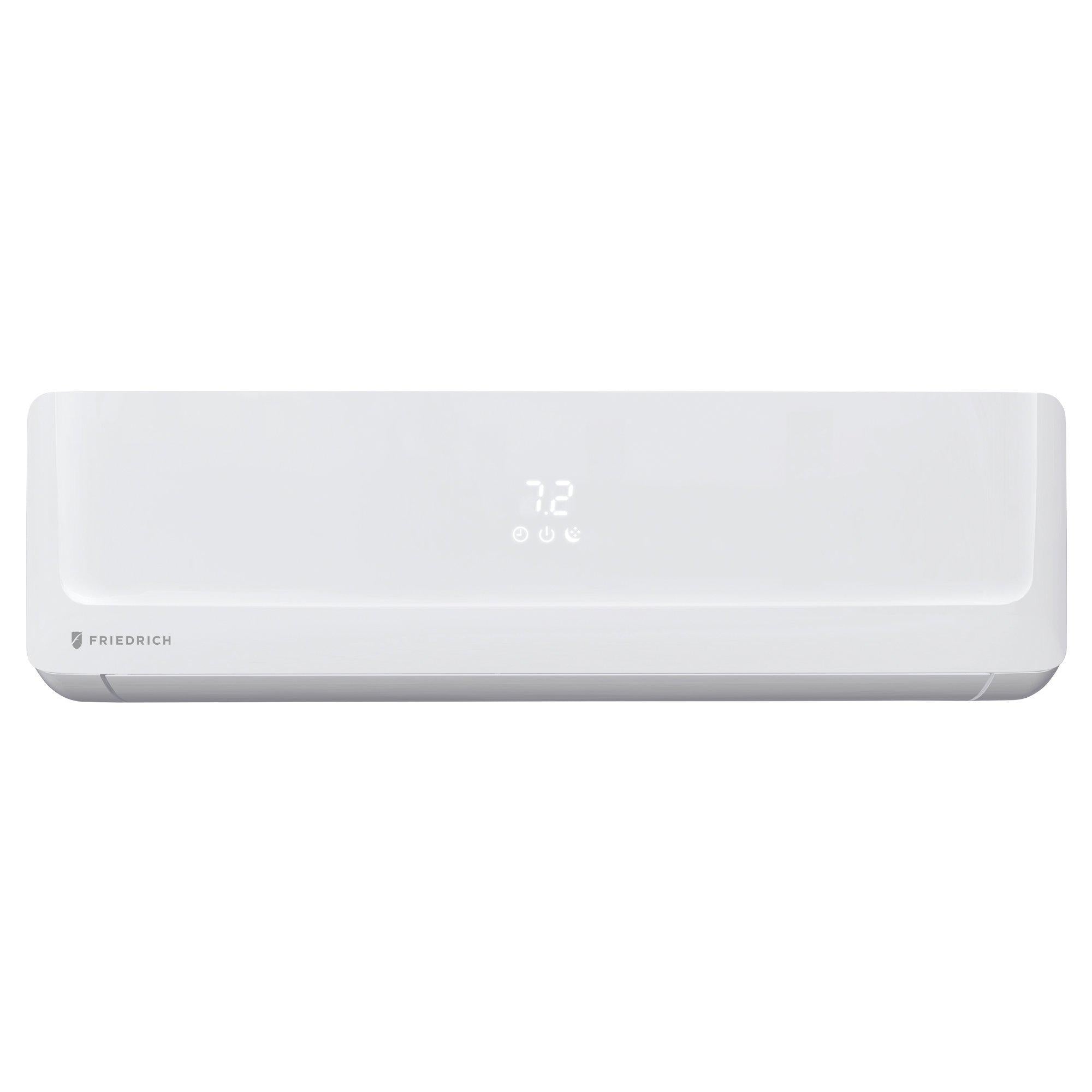

Friedrich FPHMW07A3B Split System Air Handler 7,000 BtuH

Product Description

The FRIEDRICH FPHMW07A3B split system air handler with heat pump is designed for average coverage areas of 250 to 300 sq ft. This wall-mount unit supports one indoor unit and offers cooling and heating operation modes. It features a heat pump heating method with a heating capacity of 8,500 BtuH and an airflow of 247/323/382/424 cfm. The unit operates at 208/230V AC and includes WiFi control.

• Average coverage area of 250 to 300 sq ft
• Features Cooling/Heating operation modes
• Operates at 208/230V AC

Product Highlights

Split system air handler with heat pump, ideal for maintaining a comfortable environment in small to medium-sized rooms.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FPHMW07A3B
• Country of Origin: China

Technical Specifications

• Hz: 60 Hz
• EER: 12.5
• Amps: 8.3 A
• HSPF: 10
• Item: Split System Air Handler with Heat Pump
• Phase: 1
• Voltage: 208/230V AC
• Air Flow: 247/323/382/424 cfm
• Requires: Power and Communication Cable, Refrigerant Line Set for New Installation
• Standards: AHRI, ETL
• Control Type: Electronic
• For Use With: Multi Zone Outdoor Units
• Product Type: Indoor Unit
• Heating Watts: 2,500 W
• Heating Method: Heat Pump
• Compressor Type: Rotary/Inverter
• Control Voltage: 12V DC
• Cooling Capacity: 7,000 BtuH
• Liquid Line Size: 1/4 in
• Number of Speeds: 4
• Refrigerant Type: R-410A
• Indoor Head Depth: 8.125 in
• Indoor Head Width: 37.375 in
• Suction Line Size: 3/8 in
• Indoor Head Height: 11 in
• Indoor Sound Level: 38/32/29 dBA
• Smart Connectivity: WiFi Control
• Indoor Head Mounting: Wall-Mount
• Dehumidification Rate: 2.5 pt/hr
• Operation Mode - HVAC: Cooling/Heating
• Refrigerant Precharge: 25 oz
• Programming Capability: Daily Schedules
• Remote Control Functions: Full Function
• Max. Time Delay Fuse Amps: 30
• Max. Vertical Line Length: 49 ft
• Heating Capacity - Electric: 8,500 BtuH
• Heating Capacity - Heat Pump: 8,500 BtuH
• Max. Line Length - Total System: 66 ft
• Number Of Indoor Units Supported: 1.0
• Min./Max. Line Length - Single Run: 87 ft
• Green Certification or Other Recognition: ENERGY STAR(R) Certified
• Energy Star Rated: Yes
• Minimum Average Coverage Area: 250 sq ft
• Maximum Average Coverage Area: 300 sq ft
• Compressor Technology: Variable Output (Inverter)
• Minimum Cooling Capacity: 3,600 BtuH
• Maximum Cooling Capacity: 7,000 BtuH
• Energy Efficiency Ratio (EER) Rating: 13.65
• Heat Pump Heating Capacity - Minimum: 3,600 BtuH
