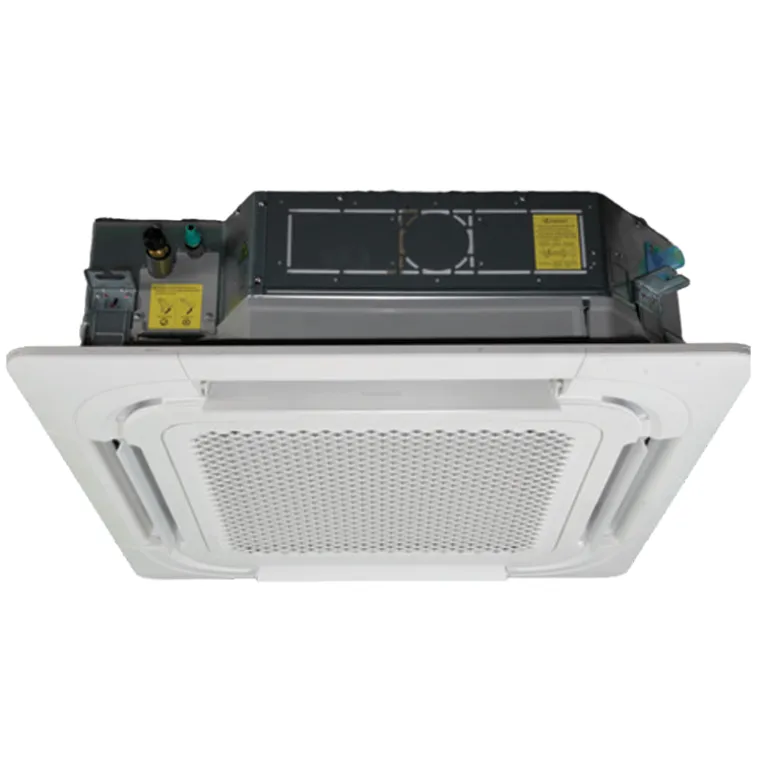

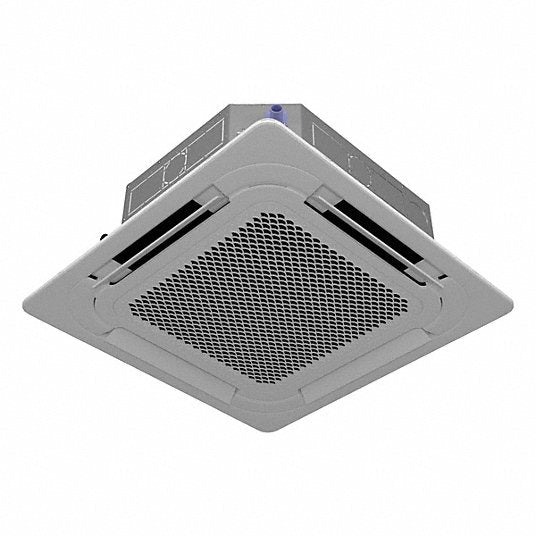

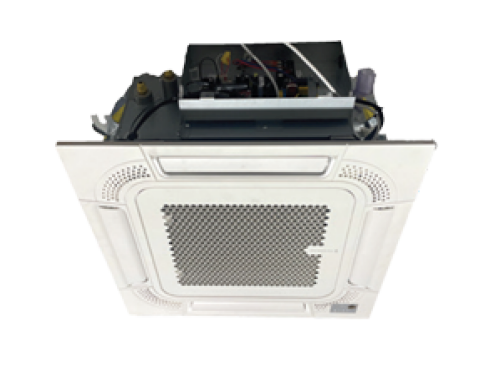

Friedrich FPHFC24A3D Floating Air Ceiling Cassette Indoor Unit 2 Ton

Product Description

The Friedrich FPHFC24A3D 2 Ton Floating Air Ceiling Cassette Indoor Unit is designed for customized comfort. Friedrich Floating Air Ductless Mini-split Systems are available in single- and multi-zone options. Every unit offers high energy efficiencies and quiet operation. It features precise air distribution and an LCD remote.

• Precision Inverter Technology (variable speed compressor)
• Built-in Wi-Fi
• 360/8-way air flow

Product Highlights

This Friedrich mini-split air handler installs into a ceiling to distribute cooled or heated air from overhead. It is commonly installed in the center of a room within a cutout or drop ceiling.

Product Information

Standard Information

• Brand: FRIEDRICH
• Manufacturer Part Number: FPHFC24A3D
• Country of Origin: China

Technical Specifications

• Voltage: 208V/230V~,60Hz,1P
• Max. Airflow: 647 CFM
• Min. Airflow: 400 CFM
• Nominal Tons: 2 Ton
• Brand: FRIEDRICH
• Refrigerant: R454B
• Cooling Capacity: 24,000 Btu/h
• Heating Capacity: 24,000 Btu/h
• Sound Level: 44/40/38 dB(H/M/L)
• Connection: Flare
• Moisture Removal: 4.7 pints/hr
• Manufacturer Part Number: FPHFC24A3D
• Air Filtration: Air Filtering
• Minimum Average Coverage Area: 1,400 sq ft
• Maximum Average Coverage Area: 1,500 sq ft
• Compatible Apps: ComfortPro
• Compressor Technology: Variable Output (Inverter)
• Compressor Type: Rotary
• Control Location: Built-In
• Control Type: Electronic
• Minimum Cooling Capacity: 10,900 BtuH
• Maximum Cooling Capacity: 30,000 BtuH
• Current: 8.5 A
• Energy Efficiency Ratio (EER) Rating: 12
• For Line Length - Minimum: 25 ft
• For Line Length - Maximum: 35 ft
• Frequency: 60 Hz
• Heat Pump Heating Capacity - Minimum: 8,200 BtuH
• Heat Pump Heating Capacity - Maximum: 34,000 BtuH
• Heating Method: Heat Pump
• Includes Air Filter: Air Filter Included
• Indoor Depth: 33.125 in
• Indoor Height: 9.25 in
• Indoor Mounting: Ceiling Mount
• Indoor Width: 33.125 in
• Liquid Line Size: 3/8 in
• Number of Speeds: 3
• Operation Mode: Cooling/Heating
• Outdoor Sound Level: 71 dBA
• Phase: Single
• Power Source: Hardwired
• Programming Capability: Weekly Schedules
• Refrigerant Precharge: 74.1 oz
• Seacoast Corrosion Protection: Front and Rear Coil
• Seasonal Energy Efficiency Ratio 2 (SEER2) Rating: 20.0
• Smart Connectivity: Wi-Fi
• Standards: AHRI Certified; cETL Approved; ETL Approved
• Suction Line Size: 5/8 in
• System Component: Air Handler Only
• Wattage - Cooling: 2,000 W
• Wattage - Heating: 2,000 W
• Category: Ductless Mini-Splits
• Product Marketing Name: Friedrich Floating Air Pro X Ductless Mini-split Ceiling Cassette (Indoor Unit)
• EER(2): 12.0
• SEER(2): 20.0
• Cooling Area (Sq Ft.): Up to 1,500
