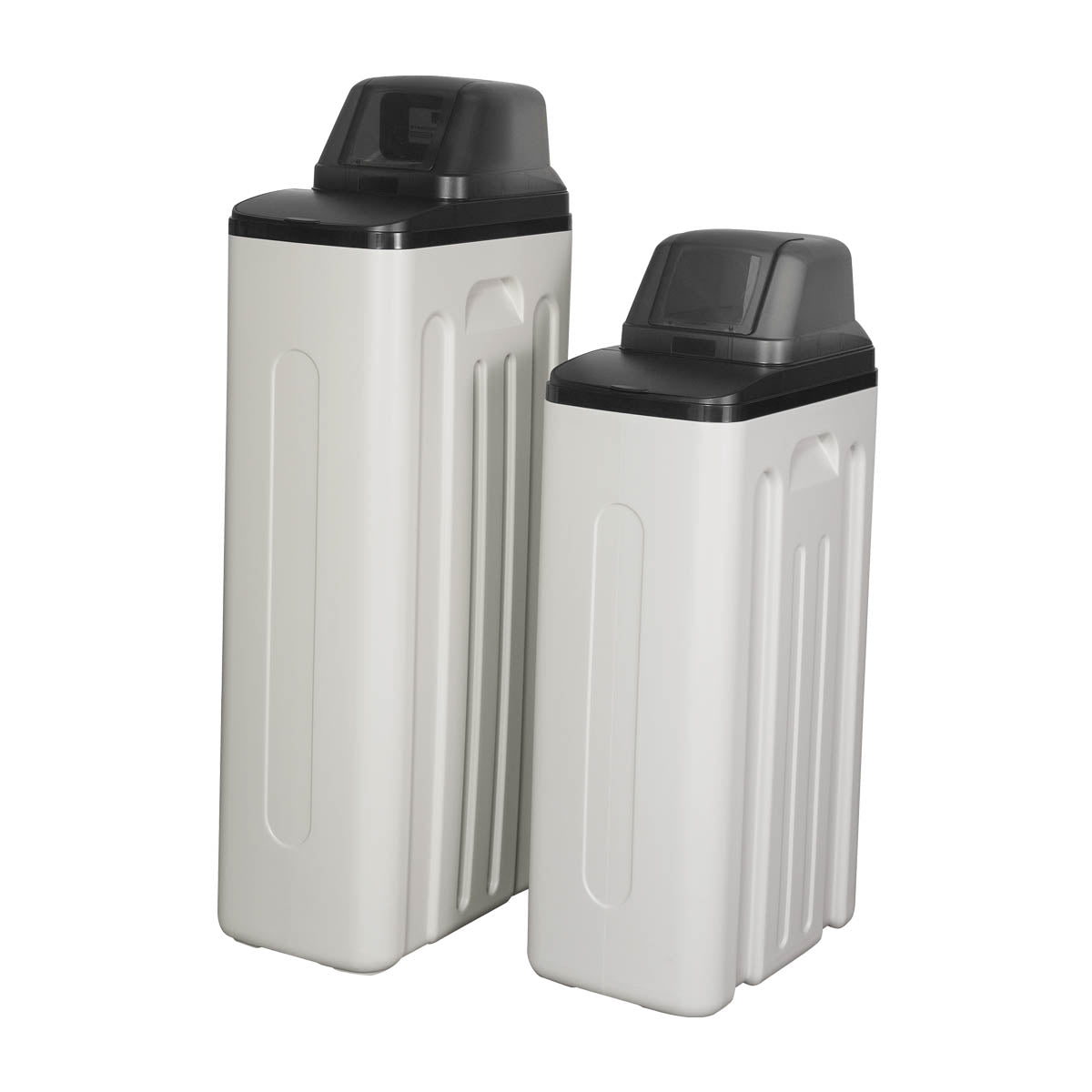

FRANKLIN ELECTRIC NESCC-1-S Water Softener System

Product Description

The FRANKLIN ELECTRIC NESCC-1-S water softener system is suitable for areas with limited installation space. This system features a two-tank design and includes a stainless steel bypass valve.

• Designed for limited spaces with two-tank system
• Constructed with non-corrosive fiberglass and stainless steel
• Includes a safety brine valve to prevent overflow

Product Highlights

This water softener effectively removes ferrous iron and is built to ensure long-lasting performance.

Product Information

Standard Information

• Brand: FRANKLIN ELECTRIC
• Product Type: Water Softener System

Technical Specifications

• Single Tank Maximum Grain Capacity: 30,000
• Single Tank Maximum Flow Rate: 10 gpm
• Contaminant Removal: Iron
• Maximum Operating Pressure: 100 psi
• Minimum Operating Pressure: 25 psi
• Maximum Operating Temperature: 100 Degree F
• Minimum Operating Temperature: 33 Degree F
• Overall Height: 45 in
• Overall Width: 22 in
• Overall Depth: 13 in
• Pipe Size: 3/4 in
• Number of Resin Tanks: 1
• Total Number of Tanks: 2
• Brine Tank Diameter: 14 in
• Brine Tank Height: 34 in
• Tank Capacity: 66 gal
