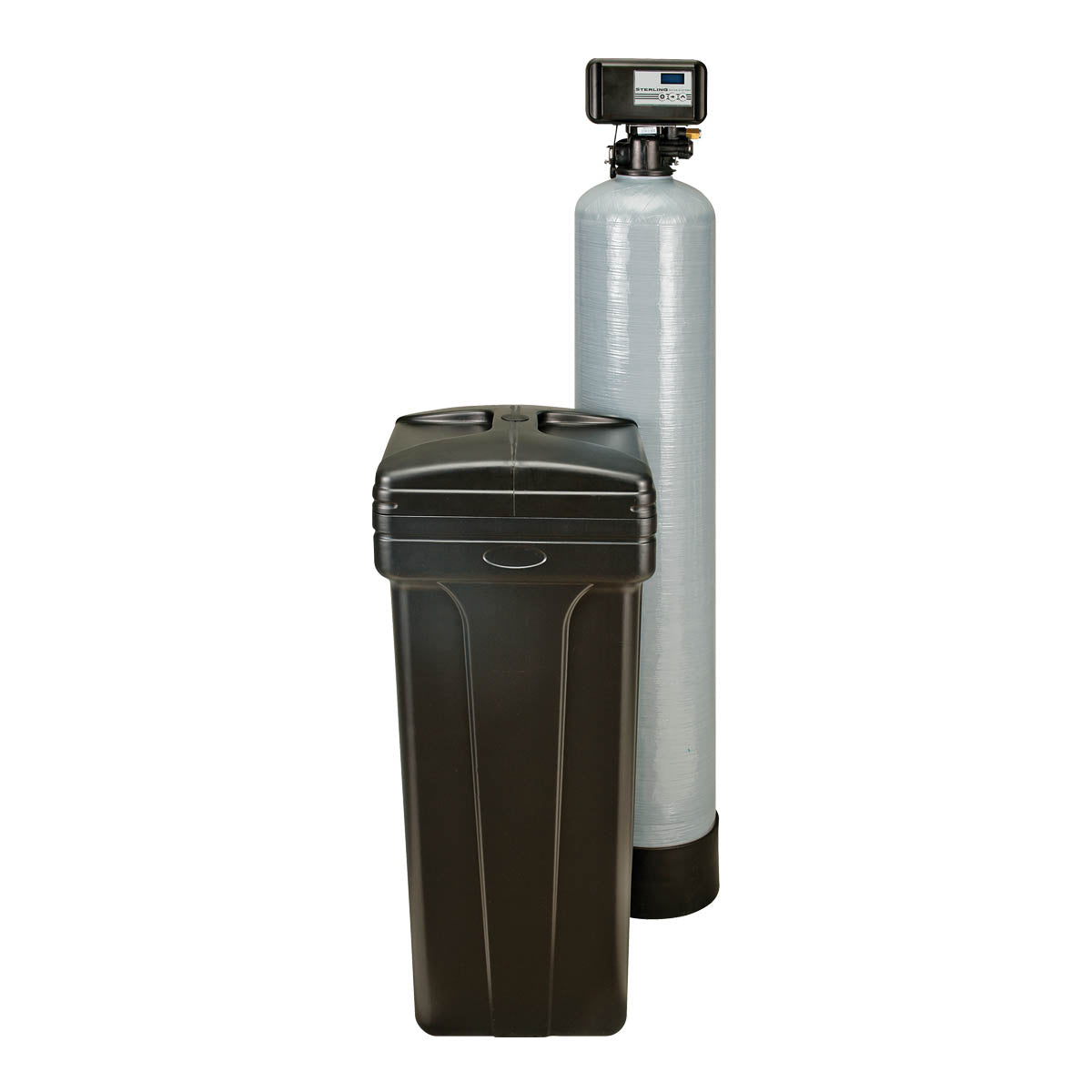

Franklin Electric NES-1.5 Water Softener System

Product Description

The Franklin Electric NES-1.5 is a water softener system for treating hard water effectively. It includes a stainless steel bypass valve to manage water flow easily. This system features a control valve, which plays a key role in regulating the softening process, and a safety brine valve designed to prevent overflow. The regeneration process is based on actual water usage data. A backlit display provides clear visibility of the time and the gallons remaining before the next regeneration.

• Includes a stainless steel bypass valve.
• Constructed with non-corrosive fiberglass and stainless steel.
• Safety brine valve installed to prevent overflow.

Product Highlights

This water softener system is built for efficiency and durability.

Product Information

Standard Information

• Brand: Franklin Electric
• Product Type: Water Softener System

Technical Specifications

• Grain Capacity: 45,000
• Maximum Operating Pressure: 100 psi
• Maximum Operating Temperature: 100 Degree F
• Minimum Operating Pressure: 25 psi
• Minimum Operating Temperature: 33 Degree F
• Brine Tank Diameter: 14 inches
• Brine Tank Height: 34 inches
• Overall Depth: 18 inches
• Overall Height: 62 inches
• Overall Width: 28 inches
• Pipe Size: 3/4 inches
• Single Tank Maximum Flow Rate: 13 gpm
• Tank Capacity: 72 gallons
• Number of Brine Tanks: 1
• Number of Resin Tanks: 1
• Total Number of Tanks: 2
• Control Valve Warranty: 5 years
• Resin Tank Warranty: 10 years
• Bypass Valve: Stainless steel
• Brine Valve: Safety type
• Manufacturer Warranty: 10 years
