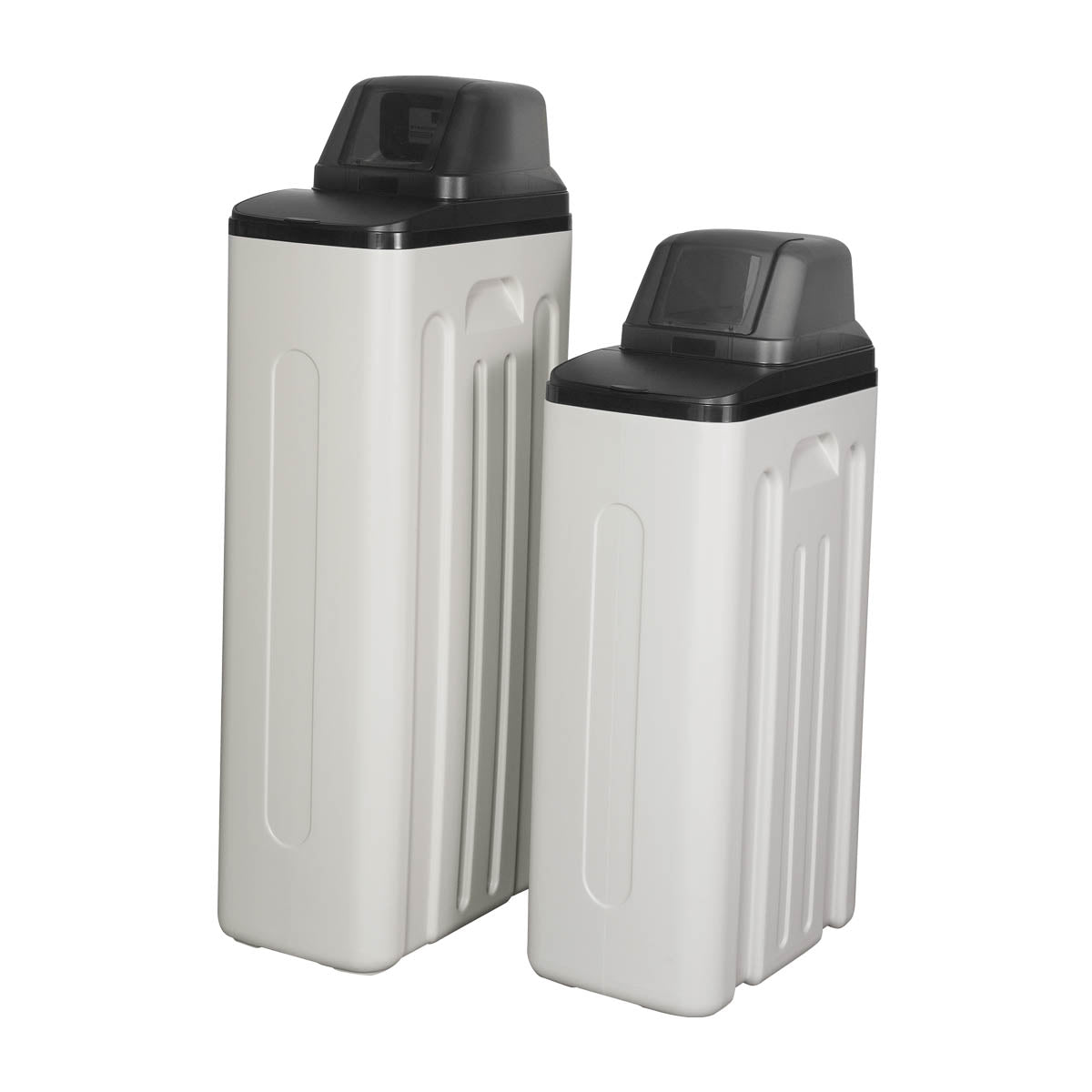

Franklin Electric NECS-1 Water Softener System

Product Description

The Franklin Electric NECS-1 Water Softener System is suitable for tight spaces. It features a two-tank design for efficient water softening. The system includes a stainless steel bypass valve, non-corrosive fiberglass, and stainless steel construction.

• Two-tank setup for compact installations
• Safety brine valve prevents overflow
• Removes ferrous iron effectively

Product Highlights

This water softener is ideal for homes with limited installation space. It enhances water quality by removing unwanted minerals.

Product Information

Standard Information

• Brand: Franklin Electric
• Product Type: Water Softener System

Technical Specifications

• Brine Tank Diameter: 14 inches
• Brine Tank Height: 34 inches
• Number of Brine Tanks: 1
• Number of Resin Tanks: 1
• Total Number of Tanks: 2
• Tank Capacity: 66 gallons
• Maximum Operating Pressure: 100 psi
• Minimum Operating Pressure: 25 psi
• Maximum Operating Temperature: 100 degrees F
• Minimum Operating Temperature: 33 degrees F
• Overall Depth: 13 inches
• Overall Height: 45 inches
• Overall Width: 22 inches
• Pipe Size: 3/4 inches
• Single Tank Maximum Flow Rate: 10 gpm
• Single Tank Maximum Grain Capacity: 30,000
