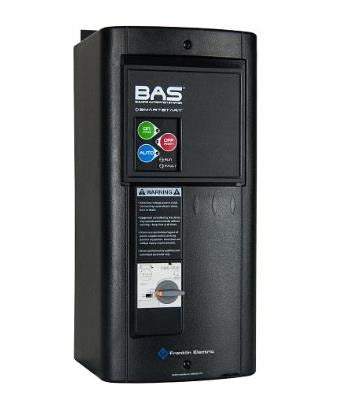

Franklin Electric BAS1-9/P-G2.5-40 Motor Starter 3ph

Product Description

The FRANKLIN ELECTRIC BAS1-9/P-G2.5-40 is a three-phase manual motor starter rated for use with motors up to 1.5 HP. It operates across a wide voltage range of 200 to 600 VAC at 50/60 Hz and carries a 2.5 amp trip current setting. The unit is housed in a Type 1 enclosure, making it suited for indoor electrical panels and motor control applications. With interrupt ratings of 100/65/25 kAIC depending on system voltage, this starter provides coordinated short-circuit protection. Licensed electricians and industrial maintenance technicians are the primary installers for this class of device.

This starter is designed for three-phase motor circuits in commercial and light industrial settings. Rated full load amperage (FLA) values are listed at 2.4, 2.2, 2.1, and 2.4 amps across supported motor configurations, accommodating 1/2 HP, 1 HP, and 1.5 HP motor loads. The compact form factor and Type 1 enclosure rating make it a practical choice for use inside motor control centers, enclosed panel boards, or disconnect assemblies in dry indoor locations.

Key Features

• Three-phase operation across 200 to 600 VAC at 50/60 Hz
• 2.5 amp adjustable trip current for motor overload protection
• Supports motor loads from 1/2 HP to 1.5 HP (three-phase)
• Short-circuit interrupt ratings of 100/65/25 kAIC
• Type 1 enclosure rated for indoor use
• FLA coverage: 2.4, 2.2, 2.1, and 2.4 amps across rated motor sizes

Compatibility

Designed as an OEM-style replacement or new-installation motor starter for three-phase motor circuits rated up to 1.5 HP within the 200 to 600 VAC operating range.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit before wiring or servicing this device. Verify that the supply voltage and motor HP are within the rated range before connecting. The Type 1 enclosure is rated for dry indoor locations only — do not install in wet, outdoor, or corrosive environments without additional protection.

Technical Specifications

• Motor HP Range: 1/2, 1, 1.5 HP (3 phase)
• Voltage Range: 200 to 600 VAC
• Frequency: 50/60 Hz
• Trip Current: 2.5 amps
• Full Load Amperage (FLA): 2.4 / 2.2 / 2.1 / 2.4 amps
• Interrupt Rating: 100 / 65 / 25 kAIC
• Enclosure Type: Type 1 (indoor)
• Phases: 3 phase
• Weight: 5 pounds

Standard Information

• Brand: FRANKLIN ELECTRIC
• Manufacturer Part Number: BAS1-9/P-G2.5-40
