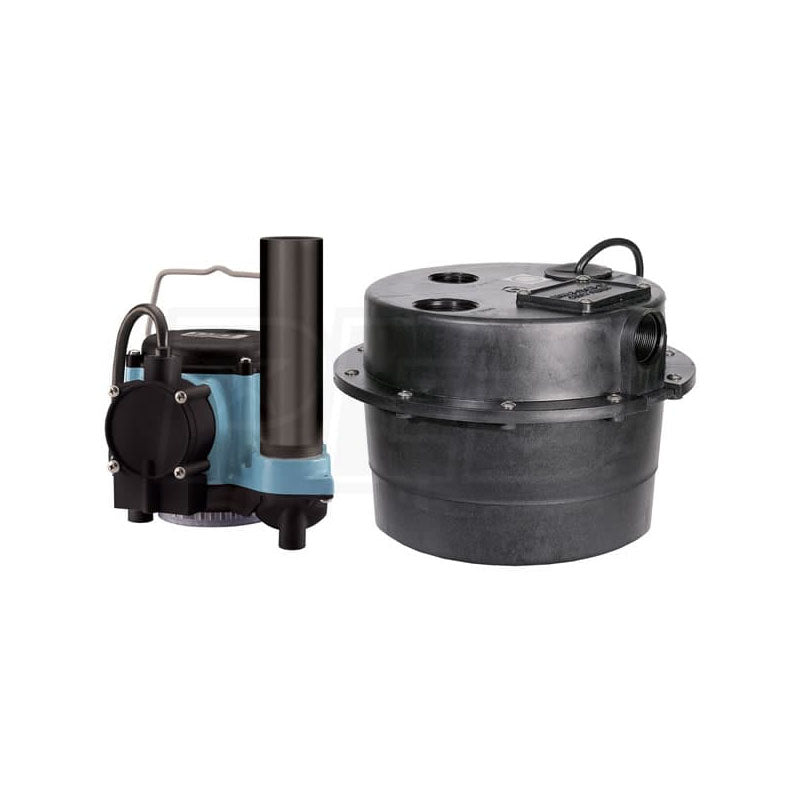

Franklin Electric 506065 Drainosaur Kit with Cord

Product Description

The Franklin Electric Drainosaur Kit with Cord, MPN 506065, is designed for efficient drainage solutions. This kit includes a cast iron housing that is coated with epoxy for protection against corrosion. Equipped with a powerful one-third horsepower motor, the unit features a thermal overload protection system to safeguard the pump.

• Compact design suitable for confined spaces
• Includes a ten-foot power cord for flexible installation
• Pre-assembled for immediate setup

Product Highlights

This drainage system is ideal for various applications, especially where limited space is present. The automatic diaphragm pressure switch enables operational efficiency, making it suitable for both residential and commercial use.

Product Information

Standard Information

• Brand: Franklin Electric Co., Inc.
• MPN: 506065

Technical Specifications

• Housing Material: Cast iron with epoxy coating
• Motor Power: 1/3 HP
• Switch Type: Automatic diaphragm
• Switch Levels: On at 4.7 inches, Off at 1.3 inches
• Basin Material: Polypropylene
• Discharge Size: 1-1/2 FNPT
• Intake Size: 1-1/2 FNPT
• Vent Size: Two FNPT openings
• Power Cord Length: 10 feet (2.44 meters)
