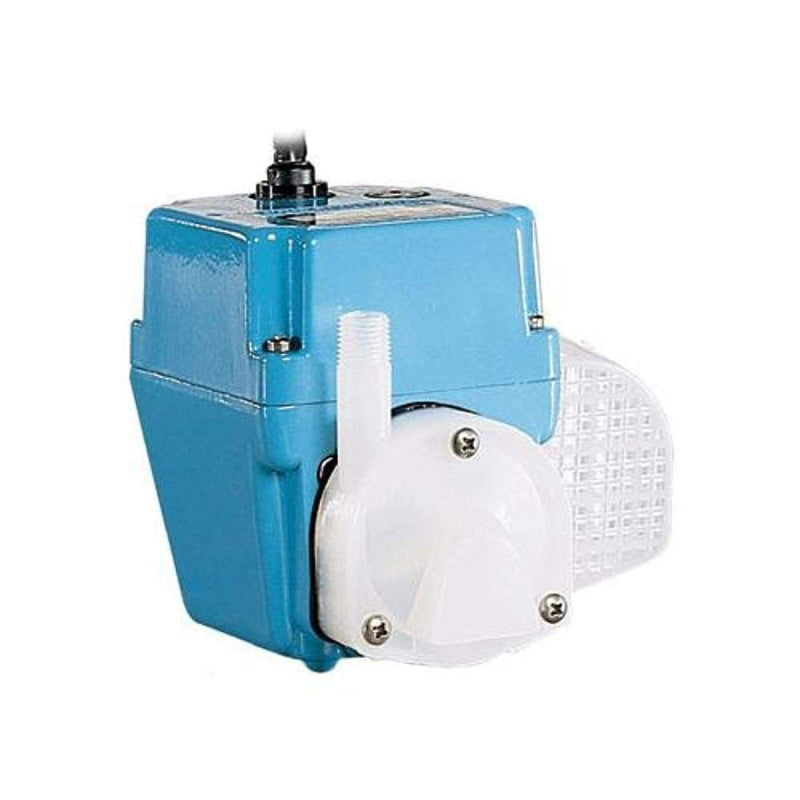

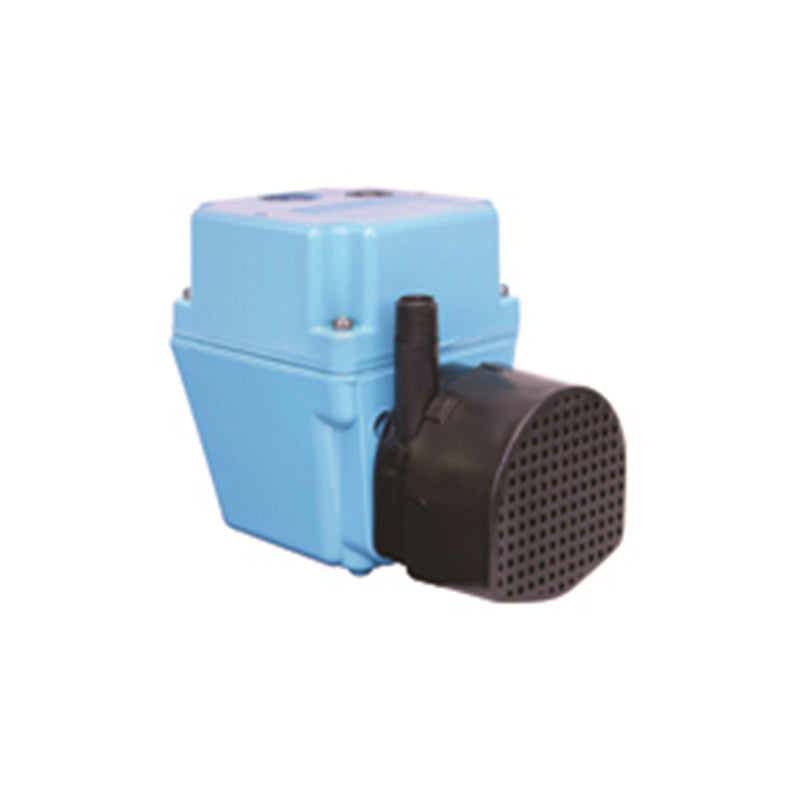

Franklin Electric 502203 300 GPH Submersible Pump

Product Description

The Franklin Electric 502203 is a submersible pump designed for transferring or recirculating liquids in various applications. This pump features an oil-filled motor housing that ensures continuous lubrication and efficient heat dissipation. It can be utilized in both submersed and in-line configurations, making it adaptable for commercial, industrial, and home use. Common applications include statuary fountains, water displays, air conditioners, and machine tool coolants.

• Discharge Size: 1/4 inch MNPT
• Maximum Flow Rate: 300 GPH

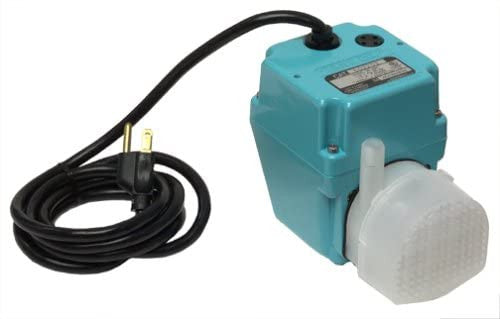

• Includes a six-foot power cord

Product Highlights

Ideal for a range of liquid transfer tasks from fountains to coolants.

Product Information

Standard Information

• Brand: Franklin Electric
• MPN: 502203

Technical Specifications

• Flow Rate: 300 GPH
• Horsepower: 1/40 HP
• Voltage: 115 VAC
• Amperage: 1.7 A
• Wattage: 100 W
• Frequency: 60 Hz
• Maximum Fluid Temperature: 120 °F
• Discharge Size: 0.5
• Discharge Type: Threaded - MNPT
• Suction Size: 0.38
• Suction Type: Threaded - FNPT
• Cord Length: 6 ft
• Housing Material: Cast Aluminum
• Impeller Material: Nylon
• Seal Material: Nitrile Rubber
• Intake Screen Material: Polypropylene
• Discharge Head Material: Thermoplastic
• Pump Volute Material: Nylon
• Maximum Head: 11.8 ft
• Pressure Rating: 5.1 psi
• Weight: 4.33 lb
• Certifications: UL
