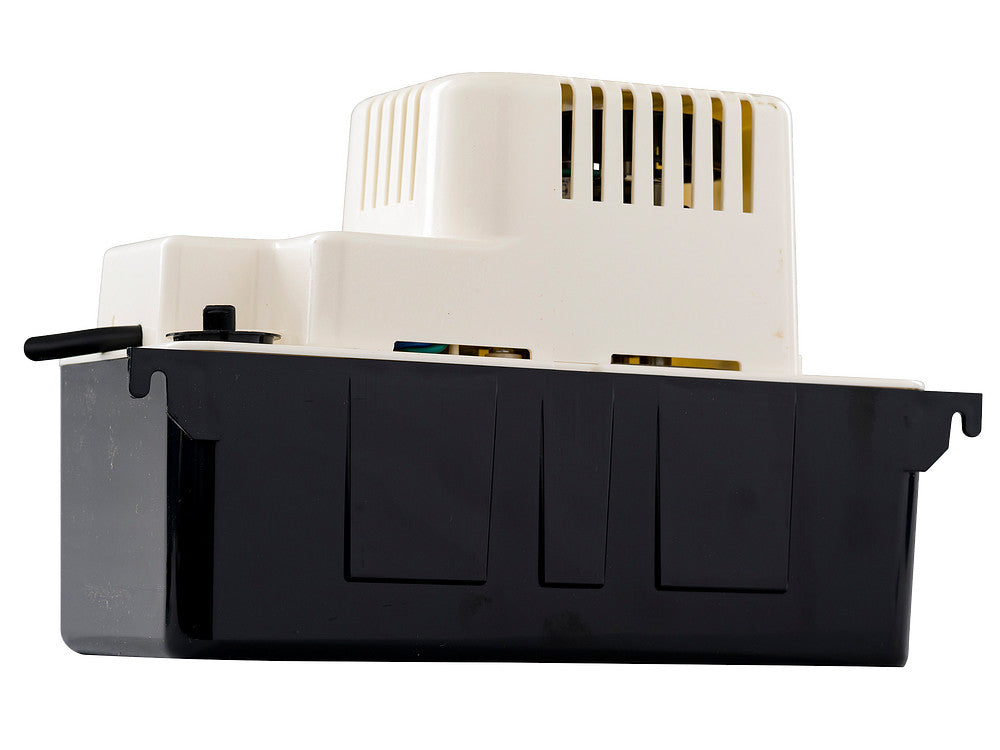

Franklin Electric 154452 Condensate Pump 1/3 hp

Product Description

The Franklin Electric 154452 is a condensate pump that collects and removes condensate from air conditioning and refrigeration systems. This pump is effective where gravity drainage is not feasible. It is built with a plastic tank and features a semi-open impeller. The unit includes a removable barbed check valve and a safety switch for enhanced operation.

• Automatic collection and removal of condensate.
• Includes a removable 3/8 inch barbed check valve.
• Features a safety switch for reliable operation.

Product Highlights

This condensate pump is ideal for HVAC applications and is simple to install in small spaces.

Product Information

Standard Information

• Brand: Franklin Electric
• MPN: 154452

Technical Specifications

• Motor Horsepower: 1/3 hp
• Input Voltage: 115 VAC
• Frequency: 60 Hz
• Full Load Amps: 1.5 A
• Power Consumption: 93 W
• Maximum Flow Rate: 1.33 gpm / 80 gph
• Max Pressure: 8.7 PSI
• Shut-Off Head: 20 ft
• Maximum Suction Lift: 6 Meters
• Tank Capacity: 0.5 gal
• Maximum Fluid Temperature: 75 °F
• Pump Base Material: Plastic
• Pump Body Material: Plastic
• Impeller Type: Semi-open
• Impeller Material: GF Polypropylene
• Check Valve: Yes
• Discharge Type: Barb
• Discharge Size: 0.38 inches
• Suction Type: Screened
• Product Length: 11 inches
• Product Width: 5 inches
• Product Height: 7 inches
• Product Weight: 4.1 lb
• Carton Length: 12 inches
• Carton Width: 5 inches
• Carton Height: 7.13 inches
• Cord Length: 6 ft
• Continuous Duty: No
• Safety Switch: Yes
