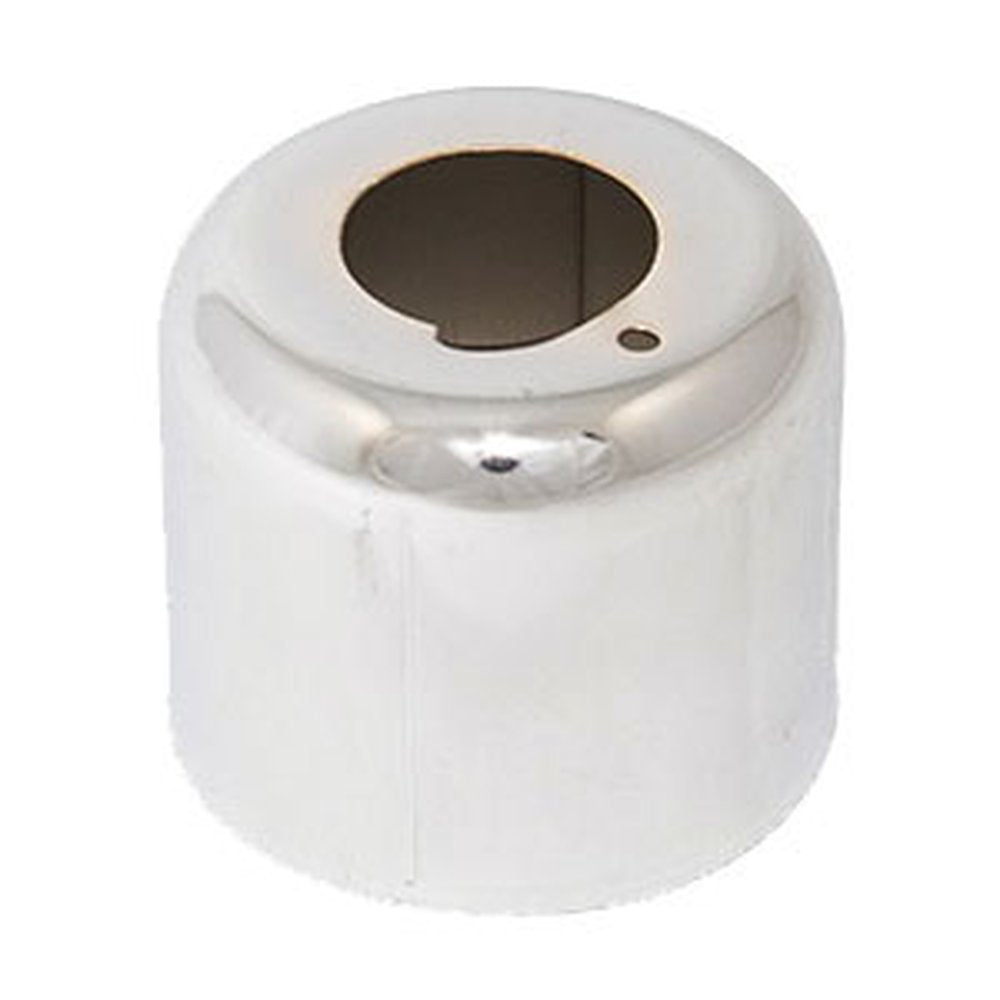

Fppi 01-620-00 Cup for Adjustable Escutcheons 3/4 in. (Replacement 4390001440)

Product Description

Fppi 01-620-00 is a chrome-plated cup for two-piece adjustable 401 escutcheons, designed for 3/4 in. sprinkler heads. The cup installs directly on the sprinkler head and, when used with skirts, provides adjustable distances between supply pipes and ceilings or walls. It is offered in retrofit (split) and non-retrofit (non-split) configurations and is available in multiple finishes. Skirt options A, B, and C provide defined adjustment lengths.

• Chrome-plated cup for two-piece adjustable 401 escutcheons; designed for 3/4 in. sprinklers
• Installs on the sprinkler head and works with skirts to vary distance to ceilings or walls (Skirt A = 3 in., Skirt B = 1-1/4 in., Skirt C = 2 in.)
• Available in retrofit (split) and non-retrofit (non-split) configurations; finishes include brass, chrome, white, off-white

Product Highlights

Chrome-plated escutcheon cup for 3/4 in. sprinklers compatible with adjustable 401 escutcheons and skirt A/B/C

Product Information

Standard Information

• Brand: FPPI
• Manufacturer Part Number: 01-620-00

Technical Specifications

• Manufacturer: FPPI
• Manufacturer Part Number: 01-620-00
• Alternate Part Number: 4390001440
• Model: Cup
• Figure Number: 01-620-00
• Compatible Sprinkler Size: 3/4 in.
• Compatible Escutcheon Type: Two-piece adjustable 401 escutcheons
• Configurations: Retrofit (split); Non-retrofit (non-split)
• Finish: Chrome plated
• Available Finishes: Brass; Chrome; White; Off-white
• Skirt Adjustment Lengths: Skirt A = 3 in.; Skirt B = 1-1/4 in.; Skirt C = 2 in.
• Corrosion Resistant: No
• UL Listed: No
• FM Approved: No
• SKU: 12-AS-CUP-CP12
