Fowler 52-585-155-0 Dial Indicator Base Kit Magnetic

Product Description

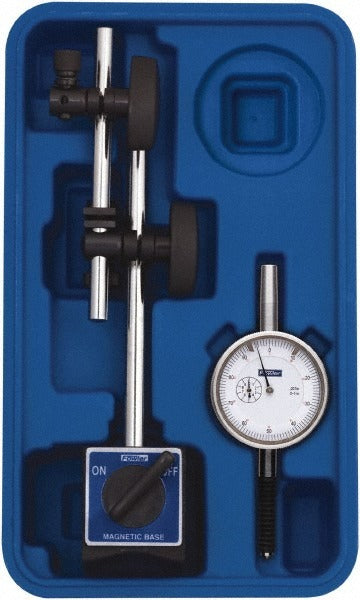

The FOWLER 52-585-155-0 is a dial indicator base kit designed for precision measurement in machining, fabrication, and mechanical service applications. The kit pairs a dial indicator with a magnetic base, giving technicians a stable, adjustable platform for checking runout, surface deviation, and part alignment. The dial indicator reads from 0 to 1 inch with 0.001 inch graduations and an accuracy of 0.001 inch. The 0-100 dial face is 2.25 inches in diameter for clear reading in shop environments. Machinists, tool-and-die workers, and precision maintenance technicians are the primary users of this type of equipment.

This kit is suited for use on machine tool tables, surface plates, lathe beds, and other ferromagnetic work surfaces where a secure, repositionable hold is needed. The magnetic base provides a firm mount without permanently modifying the workpiece or fixture. The adjustable arm and rod allow positioning the indicator in tight or elevated locations. The sealed back plate on the indicator helps protect the movement from chips, coolant splash, and shop debris. The included fitted case keeps all components organized and protected during storage and transport.

Key Features

• 0 to 1 inch measurement range with 0.001 inch dial graduation for precise deviation readings
• Magnetic base style for tool-free mounting on ferromagnetic surfaces
• 2.25 inch dial diameter for legibility in production and maintenance settings
• Sealed back plate protects indicator movement from contaminants
• 6 inch arm length and 6 inch rod length for flexible indicator positioning
• Includes fitted case for organized storage and field transport

Compatibility

Designed as a self-contained dial indicator and magnetic base kit suitable for use on any ferromagnetic surface in machine shop, maintenance, or fabrication environments.

Installation Notes

A licensed machinist or precision maintenance technician should set up and zero this instrument before use. Ensure the magnetic base is seated fully on a clean, flat ferromagnetic surface before engaging the magnet to maximize holding force. Inspect all articulating joints and lock them securely before taking readings to prevent measurement drift. Do not use the magnetic base on aluminum, stainless steel, or other non-ferromagnetic materials without a compatible adapter.
