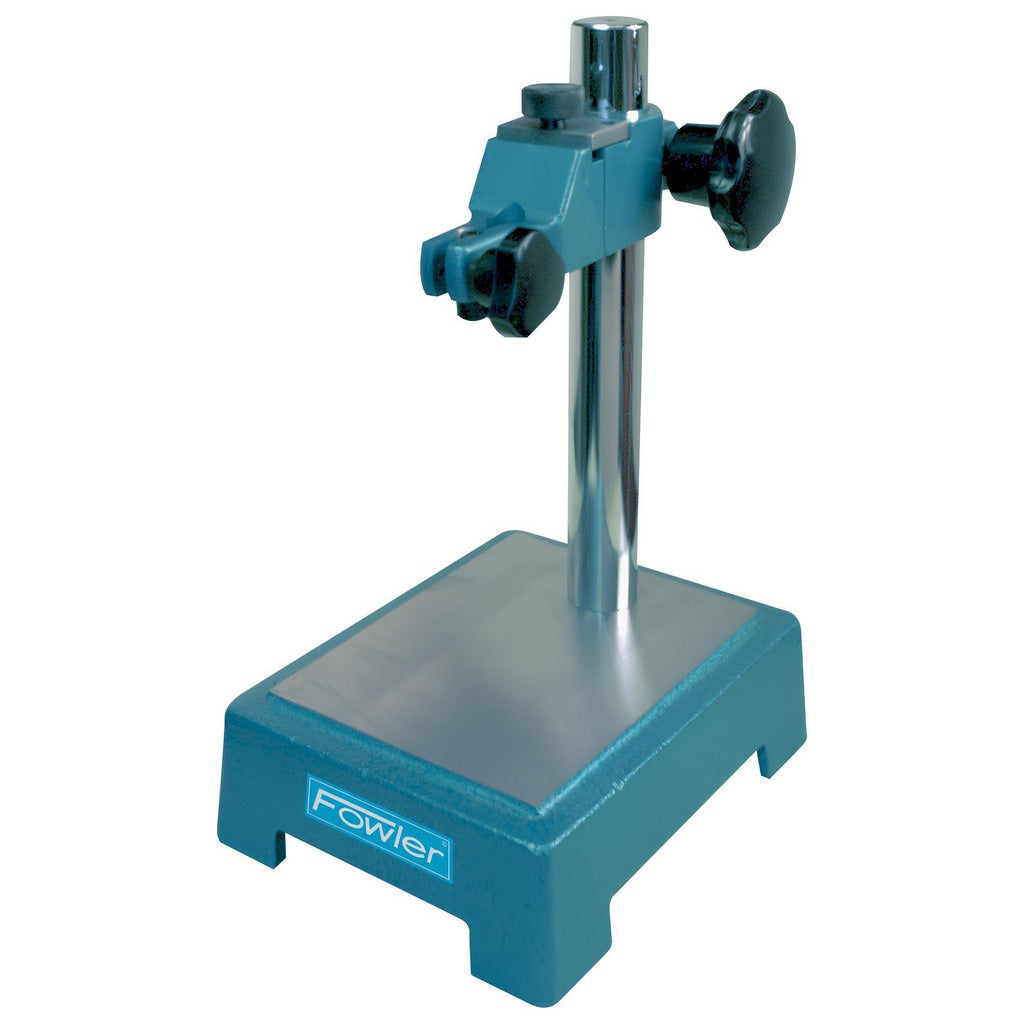

Fowler 52-580-016-0 Dial Indicator Comparator Gage Stand

Product Description

The FOWLER 52-580-016-0 is a steel dial indicator comparator gage stand designed for precise measurement setups in machine shops, quality control labs, and toolroom environments. Built around a fixed upright post arm style, this stand provides a rigid, stable platform for mounting dial indicators during inspection and comparison tasks. The rectangular base measures 7.5 inches in length and 6.25 inches in width, delivering a wide footprint for stability. A fine adjustment mechanism allows technicians to position the indicator with controlled, repeatable precision. The stand ships with an anvil and holder included. Total weight is 10 pounds.

This stand is suited for dimensional inspection work where a dial indicator must be held at a consistent height and angle relative to a reference surface. The post height of 8 inches and an overall height of 10.5 inches accommodate a wide range of part geometries on surface plates or inspection fixtures. The fixed upright post configuration is commonly used in comparator setups where a master part is referenced first, then production parts are checked against that baseline. Licensed metrology technicians, quality inspectors, and toolroom machinists are the primary users of this equipment.

Key Features

• Fixed upright post arm style for rigid, repeatable indicator positioning
• Fine adjustment mechanism for controlled vertical positioning of the indicator
• Steel construction for durability in production and inspection environments
• Rectangular base measuring 7.5 x 6.25 x 2.5 inches for broad, stable support
• Includes anvil and holder - dial indicator not included
• Post height and rod length of 8 inches with 10.5 inch overall height

Compatibility

Designed as an OEM-style comparator gage stand compatible with standard dial indicators used in toolroom and quality control inspection setups.

Installation Notes

Secure the stand on a flat surface plate or inspection table before mounting any indicator. Verify that all clamping hardware is tightened before taking readings to prevent indicator drift. Fine adjustment should only be made after coarse positioning is locked down. Dial indicator installation and removal should be performed with the stand stationary to avoid damage to the indicator spindle.
