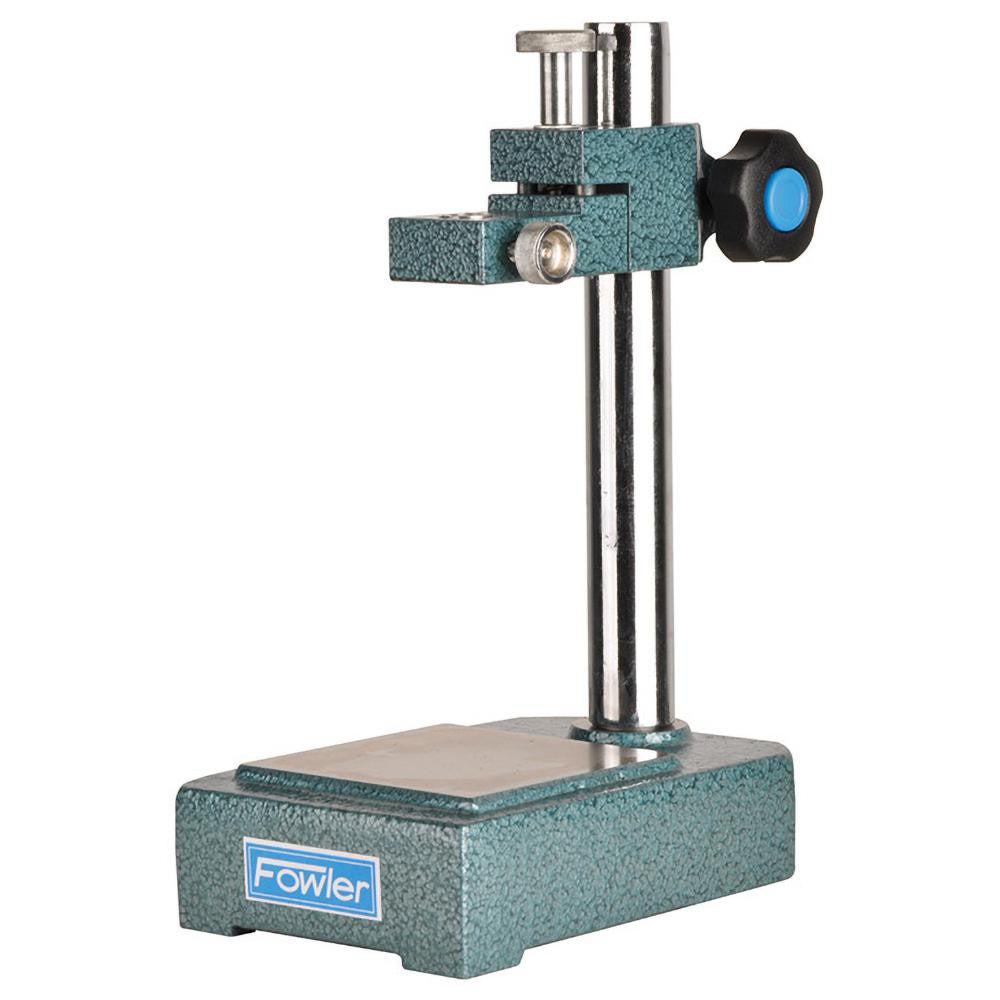

Fowler 52-580-015-0 Comparator Gage Stand Steel Rectangular Base

Product Description

The FOWLER 52-580-015-0 is a steel comparator gage stand designed for precision measurement setups in inspection and quality control environments. Standing 8.5 inches total height with a 6.5-inch post, this stand provides a stable, rigid platform for mounting dial indicators and comparator gages. The rectangular steel base measures 6 inches long by 4 inches wide by 1.5 inches high, delivering the footprint and mass needed to minimize vibration and movement during measurement. A fine adjustment mechanism allows controlled vertical positioning of the holder. A holder is included. Licensed metrology technicians and quality control inspectors are the primary users of this equipment.

This comparator gage stand is suited for use on inspection benches, surface plates, and machine shop measurement stations in both production and tool room environments. It handles standard comparator gage and dial indicator mounting tasks where repeatable, stable positioning is required. The quick positioning and adjustment feature reduces setup time when moving between measurement points or changing part fixtures. No anvil or dial indicator is included with this stand.

Key Features

• Steel construction provides rigid, stable base for accurate comparator gage measurements
• Rectangular base (6 inches x 4 inches x 1.5 inches) offers broad footprint for stability
• 8.5-inch total stand height with 6.5-inch post accommodates a range of part heights
• Fine adjustment mechanism for precise vertical positioning of the gage holder
• Quick positioning feature speeds up setup and transition between measurement tasks
• Holder included - ready for immediate use with a compatible comparator gage or dial indicator

Compatibility

Designed as an OEM-style replacement and standard fitment comparator gage stand for use with comparator gages and dial indicators requiring a rectangular-base steel stand mount.

Installation Notes

Installation is performed by metrology technicians or quality control personnel in shop or lab settings. Place the stand on a clean, flat surface plate or inspection bench to ensure accurate readings. Secure any mounted gage or indicator snugly in the holder before taking measurements. No power source is required for this mechanical stand.
