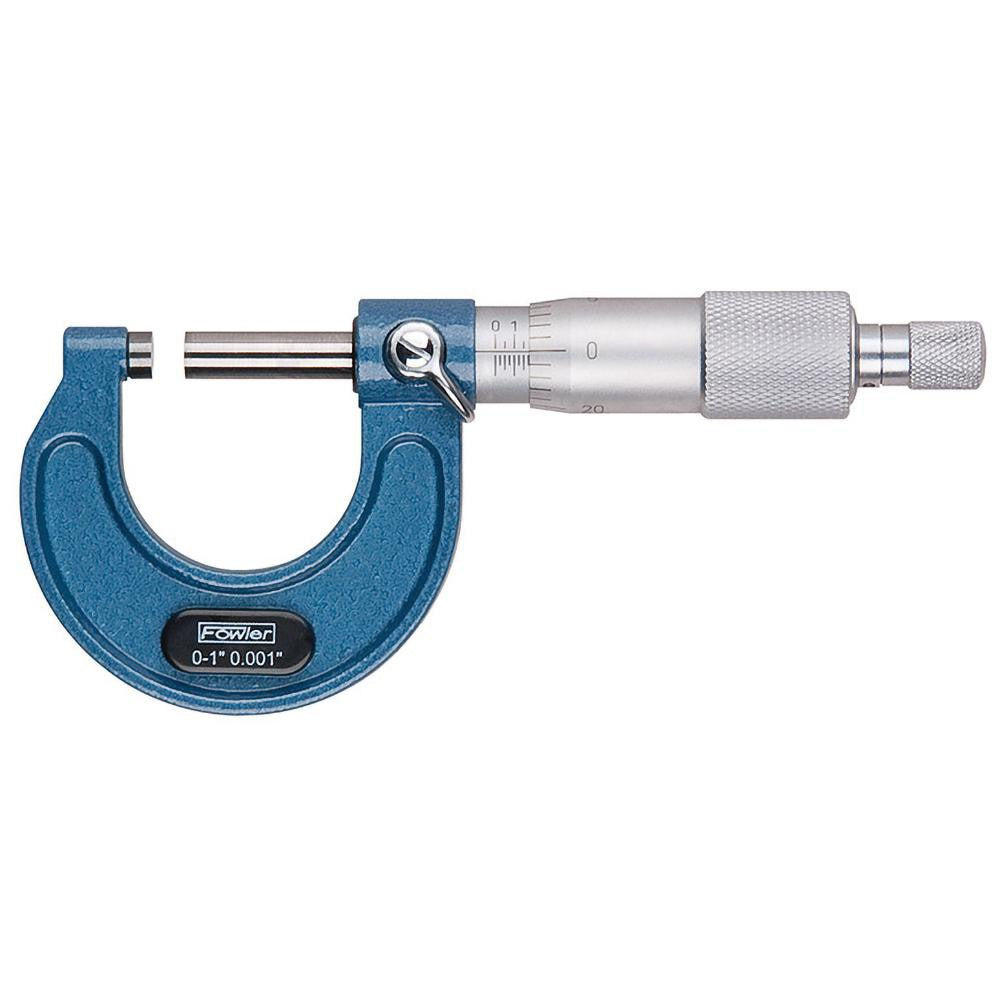

Fowler 52-253-101-1 Outside Micrometer 1 in Range

Product Description

The FOWLER 52-253-101-1 is a mechanical outside micrometer designed for precise external dimensional measurement in machining, fabrication, and inspection work. It covers a measurement range of 0 to 1 inch with a graduation of 0.001 inches and an accuracy of 0.0001 inches. The ratchet stop thimble delivers consistent measuring force on every reading, reducing operator-to-operator variation. Solid carbide measuring faces resist wear during repeated use on hard materials. A positive lever locking clamp holds the spindle in position once a reading is taken, ensuring the measurement is retained without drift. Machinists, tool and die makers, and quality control technicians are the primary users of this instrument.

This micrometer is suited for general-purpose outside measurement tasks in job shops, production floors, and field inspection environments. It handles stock verification, shaft diameter checks, and part qualification where hand-tool precision is required. The included case and wrench make it ready for transport and field use without additional sourcing of accessories. It is appropriate for both residential and light commercial fabrication settings where a reliable, manual outside micrometer is needed for everyday dimensional inspection.

Key Features

• Ratchet stop thimble applies consistent measuring force for repeatable readings
• Solid carbide measuring faces resist wear on hardened and abrasive workpieces
• Positive lever locking clamp secures spindle position during measurement transfer
• 0.0001 inch accuracy supports close-tolerance inspection work
• Non-rotating spindle prevents workpiece marking during measurement
• Includes protective case and wrench for field-ready use

Compatibility

Designed as an OEM-style mechanical outside micrometer for general-purpose external dimensional measurement applications requiring a 0 to 1 inch measuring range.

Installation Notes

Calibrate the micrometer to zero before use with the included wrench and standard procedure for the measuring range. Clean measuring faces with a lint-free cloth before each use to avoid false readings caused by debris or oil film. Store the instrument in its case when not in use to protect the measuring faces and thimble mechanism from damage or corrosion.
