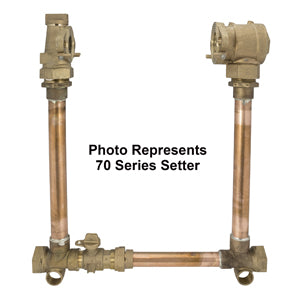

Ford Meter Box vhh77-21b-11-77-nl 2 in Meter Coppersetter

Product Description

The FORD METER BOX vhh77-21b-11-77-nl is a 2-inch flanged meter coppersetter designed for water meter installations requiring a no-lead-compliant assembly. It integrates a 2-inch key valve and a 2-inch dual check valve into a single unit, standing 21 inches high with horizontal inlet and horizontal outlet connections. The unit features 2-inch FIP by 2-inch FIP end connections and includes a built-in bypass. At approximately 34 pounds, this is a robust, commercial-grade assembly intended for installation by licensed plumbers and water utility contractors.

This coppersetter is suited for residential and light commercial water service applications where a flanged meter connection is required. The no-lead construction meets regulatory requirements for potable water systems. The integrated dual check valve provides backflow protection at the meter set, and the bypass allows for meter servicing without a full system shutdown. The horizontal in and horizontal out configuration fits standard meter pit and vault installations.

Key Features

• No-lead construction compliant with potable water regulations
• Integrated 2-inch key valve for service shutoff
• Built-in 2-inch dual check valve for backflow protection
• Bypass included for meter servicing without full shutoff
• Horizontal inlet and horizontal outlet orientation
• 2-inch FIP by 2-inch FIP end connections
• 21-inch height fits standard meter pit and vault configurations

Compatibility

Designed as an OEM-style replacement or new-installation coppersetter for 2-inch flanged water meters in standard residential and light commercial meter pit or vault settings.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements. Shut off the water main before beginning any connection or meter work. Verify that the meter flange bolt pattern and face-to-face dimension match the existing or new meter before final installation. Do not overtighten FIP connections; use appropriate thread sealant rated for potable water service.

Technical Specifications

• Inlet Connection: 2 inches FIP
• Outlet Connection: 2 inches FIP
• Height: 21 inches
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Valve Type: Key Valve with Dual Check Valve
• Lead Compliance: No Lead
• Bypass: Included
• Approximate Weight: 34 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vhh77-21b-11-77-nl
