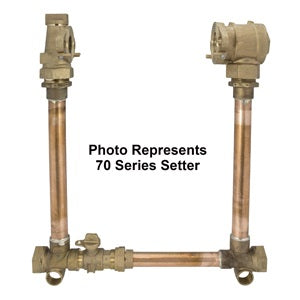

Ford Meter Box vhh76-21-11-66-nl Coppersetter Meter Setter

Product Description

The FORD METER BOX vhh76-21-11-66-nl is a 1-1/2-inch no-lead Coppersetter flanged meter setter designed for water meter installation in residential and commercial service line applications. This unit features a 21-inch height with horizontal inlet and horizontal outlet, 1-1/2-inch FIP by 1-1/2-inch FIP connections, a flanged key valve, and an integrated dual check valve. The no-lead construction meets safe drinking water requirements for potable water systems. Licensed plumbers and waterworks contractors install this setter as part of a metered service assembly.

This meter setter is used in water utility and municipal distribution applications where a flanged meter connection is required. The horizontal inlet and horizontal outlet orientation suits below-grade vault or meter pit installations common in residential and light commercial settings. The dual check valve provides backflow protection as part of the service assembly. The 1-1/2-inch FIP by 1-1/2-inch FIP end connections suit standard service line pipe configurations at this size.

Key Features

• 1-1/2-inch FIP by 1-1/2-inch FIP end connections for direct service line installation
• 21-inch height with horizontal inlet and horizontal outlet configuration
• Flanged meter connection with integral key valve
• Integrated dual check valve for backflow protection
• No-lead construction compliant with safe drinking water standards for potable systems

Compatibility

Designed as an OEM-style replacement or new-installation setter for 1-1/2-inch flanged water meter assemblies in potable water service line applications.

Installation Notes

Installation is performed by a licensed plumber or waterworks contractor in accordance with local plumbing codes and utility specifications. Shut off the water main and relieve system pressure before removing or installing any meter setter components. Confirm the meter pit or vault dimensions accommodate the 21-inch setter height before installation. Verify that all joints are properly sealed and that the dual check valve orientation is correct per the manufacturer instructions before restoring service.

Technical Specifications

• Connection Size: 1-1/2 inches
• Inlet Connection: 1-1/2 inches FIP
• Outlet Connection: 1-1/2 inches FIP
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Height: 21 inches
• Meter Connection: Flanged
• Valve Type: Key Valve with Dual Check Valve
• Lead Compliance: No Lead
• Weight: 26.21 pounds
• Box Quantity: 1

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vhh76-21-11-66-nl
