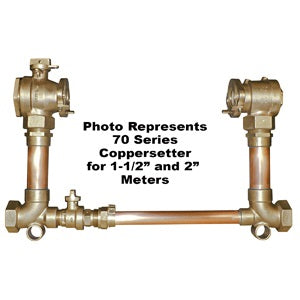

Ford Meter Box vbhh76-21-11-66-nl Meter Setter Ball Valve

Product Description

The FORD METER BOX vbhh76-21-11-66-nl is a 1-1/2 inch no-lead copper setter designed for residential and light commercial water meter installations. This flanged meter setter combines a ball valve with a dual check valve in a single assembly, providing shutoff and backflow protection at the meter set. The unit features horizontal inlet and horizontal outlet connections with 1-1/2 inch FIP by 1-1/2 inch FIP threading and stands 21 inches high. Weighing 28 pounds, it is built for direct burial applications and is compliant with no-lead material standards required in potable water service. Licensed plumbers and water utility contractors are the primary installers of this assembly.

This meter setter is used in water service line installations where a flanged meter connection is required. The 21-inch height accommodates standard meter pit depth requirements common in residential and light commercial construction. The horizontal inlet and horizontal outlet configuration suits straight-run service installations. The integrated dual check valve fulfills backflow prevention requirements at the meter set without requiring a separate backflow device in the pit.

Key Features

• No-lead construction meets potable water installation requirements
• Integrated ball valve provides full-flow shutoff at the meter
• Dual check valve built in for backflow prevention at the meter set
• 1-1/2 inch FIP by 1-1/2 inch FIP connections for standard threaded service pipe
• 21 inch height suits typical meter pit and vault installations
• Horizontal inlet and horizontal outlet orientation for straight-run service configurations

Compatibility

Designed as an OEM-style replacement or new-installation setter for 1-1/2 inch flanged water meters in residential and light commercial potable water service applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and applicable IPC requirements. Shut off the main water service and depressurize the line before removing or installing this assembly. Ensure proper thread engagement on both FIP connections and use appropriate thread sealant rated for potable water service. Inspect the pit or vault for adequate depth and drainage before setting the unit to final grade.

Technical Specifications

• Inlet Connection: 1-1/2 inches FIP
• Outlet Connection: 1-1/2 inches FIP
• Height: 21 inches
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Valve Type: Ball Valve with Dual Check Valve
• Lead Compliance: No Lead
• Weight: 28 pounds
• Box Quantity: 1

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbhh76-21-11-66-nl
