Ford Meter Box vbhh76-18-11-66-nl Coppersetter Meter Setter

Product Description

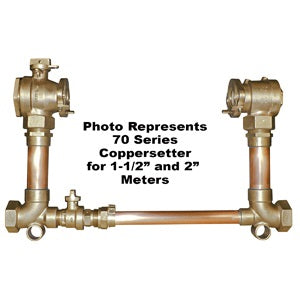

The FORD METER BOX vbhh76-18-11-66-nl is a 1-1/2 inch no-lead flanged coppersetter meter setter designed for water meter installation in municipal and residential water service applications. The unit features an integrated dual check valve and a flanged ball valve, providing shutoff and backflow protection in a single assembly. It is rated for a pipe size of 1-1/2 inches FIP inlet by 1-1/2 inches FIP outlet and stands 18 inches in height with a horizontal inlet and horizontal outlet configuration. Licensed plumbers and water utility contractors install this type of setter as part of a metered water service assembly.

This coppersetter is intended for use in water meter installations where a no-lead compliant assembly is required by local code. The horizontal inlet and horizontal outlet orientation suits standard residential and light commercial meter pit or vault installations. The 18 inch height accommodates typical meter box depths used in new construction and meter replacement service work. The 1-1/2 inch connection size supports higher-flow residential and small commercial service lines.

Key Features

• No-lead compliant construction for potable water service compliance
• Integrated flanged ball valve for service shutoff
• Dual check valve built into the assembly for backflow protection
• 18 inch height with horizontal inlet and horizontal outlet orientation
• 1-1/2 inch FIP by 1-1/2 inch FIP connections for standard threaded installation

Compatibility

Designed as an OEM-style replacement or new-installation coppersetter for 1-1/2 inch water meter assemblies requiring no-lead flanged connections with horizontal inlet and outlet configuration.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and applicable IPC requirements. Shut off the water main and depressurize the service line before beginning installation. Verify that the meter flange bolt pattern and face-to-face dimension match the meter being installed before making final connections. Do not over-torque the FIP threaded connections; use appropriate thread sealant rated for potable water service.

Technical Specifications

• Inlet Connection Size: 1-1/2 inches FIP
• Outlet Connection Size: 1-1/2 inches FIP
• Height: 18 inches
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Valve Type: Flanged Ball Valve with Dual Check Valve
• Lead Free: Yes
• Weight: 27.37 pounds
• Box Quantity: 1

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbhh76-18-11-66-nl
