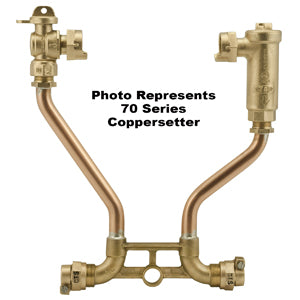

Ford Meter Box vbhc72-18w-11-33-nl Coppersetter 5/8x3/4

Product Description

The FORD METER BOX vbhc72-18w-11-33-nl is a no-lead coppersetter meter setter designed for water meter installations. It combines a ball valve with a dual cartridge check valve in a single assembly, providing both shutoff and backflow prevention in one unit. The setter is sized for 5/8 inch by 3/4 inch meter connections and stands 18 inches high with horizontal inlet and horizontal outlet orientations. Both the inlet and outlet are 3/4 inch double-purpose connections. Licensed plumbers and waterworks contractors install this type of setter during meter set or meter replacement work on residential and light commercial water service lines.

This coppersetter is intended for potable water meter setting applications where a no-lead compliant assembly is required. The 18-inch vertical height accommodates standard pit or vault depth requirements commonly encountered in residential water service installations. The horizontal inlet and horizontal outlet configuration suits typical service line routing in meter boxes or vaults. The dual cartridge check valve integrated into the body provides code-required backflow protection without the need for a separate inline check device.

Key Features

• No-lead construction for compliance with potable water system requirements
• Integrated ball valve provides positive shutoff at the meter set
• Dual cartridge check valve delivers built-in backflow prevention
• 18 inch height with horizontal inlet and horizontal outlet for standard meter pit installations
• 5/8 inch by 3/4 inch meter sizing with 3/4 inch double-purpose inlet and outlet connections

Compatibility

Designed as an OEM-style meter setter for 5/8 inch by 3/4 inch displacement water meters in residential and light commercial potable water service installations requiring no-lead compliant components.

Installation Notes

Installation should be performed by a licensed plumber or certified waterworks technician in accordance with local plumbing codes and utility requirements. Shut off and depressurize the water service line completely before removing or installing the meter setter. Verify that all fittings and connections are appropriate for potable water service and meet local no-lead compliance standards. Inspect the dual check valve cartridges after installation to confirm proper seating before restoring service pressure.

Technical Specifications

• Meter Size: 5/8 x 3/4 inches
• Setter Height: 18 inches
• Inlet Orientation: Horizontal
• Outlet Orientation: Horizontal
• Inlet Connection: 3/4 inch Double Purpose
• Outlet Connection: 3/4 inch Double Purpose
• Valve Type: Ball Valve with Dual Cartridge Check Valve
• Lead Compliance: No Lead
• Approximate Weight: 7.0 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vbhc72-18w-11-33-nl
