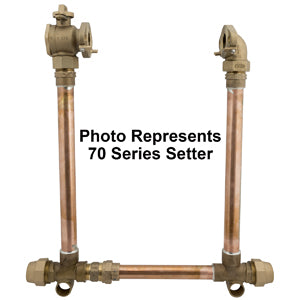

Ford Meter Box vb77-12-11-77-nl 2 in Flanged Meter Coppersetter

Product Description

The FORD METER BOX vb77-12-11-77-nl is a 2-inch flanged meter coppersetter manufactured without lead, designed for water meter installations in municipal and commercial water distribution systems. This unit combines a flanged ball valve with a flanged ell configuration, standing 12 inches high with a horizontal inlet and horizontal outlet orientation. The inlet and outlet connections are 2-inch FIP by 2-inch FIP. At approximately 28 pounds, this is a robust, full-size assembly intended for professional waterworks and utility installation crews working on metered service lines.

This coppersetter is used in water utility metering applications where a flanged connection is required at the meter set. The horizontal inlet and horizontal outlet configuration suits installations where the service line runs horizontally into the meter vault or pit. The no-lead construction meets compliance requirements for potable water system components. It is suited for both new construction meter sets and retrofit projects on 2-inch service lines in residential or light commercial utility applications.

Key Features

• No-lead construction for potable water compliance
• Flanged ball valve design for reliable shutoff at the meter
• Flanged ell configuration with horizontal inlet and horizontal outlet
• 12-inch height accommodates standard meter pit depth requirements
• 2-inch FIP by 2-inch FIP connections for direct meter hookup
• Approximately 28 pounds — heavy-duty assembly built for utility service

Compatibility

Designed as an OEM-style replacement or new-installation coppersetter for 2-inch flanged water meter assemblies in municipal and commercial potable water distribution systems.

Installation Notes

Installation of this coppersetter is typically performed by licensed plumbers or utility waterworks contractors. Shut off the main water service and relieve line pressure before removing or installing any meter set components. Connections must comply with applicable local plumbing codes and AWWA standards for metered service installations. Do not overtighten FIP connections — use appropriate thread sealant rated for potable water service.

Technical Specifications

• Connection Size: 2 inches
• Inlet Connection: 2-inch FIP Flanged
• Outlet Connection: 2-inch FIP Flanged
• Valve Type: Flanged Ball Valve
• Configuration: Flanged Ell, Horizontal Inlet, Horizontal Outlet
• Height: 12 inches
• Lead Content: No Lead
• Approximate Weight: 28 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: vb77-12-11-77-nl
