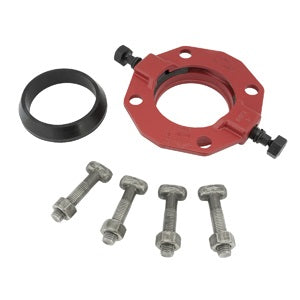

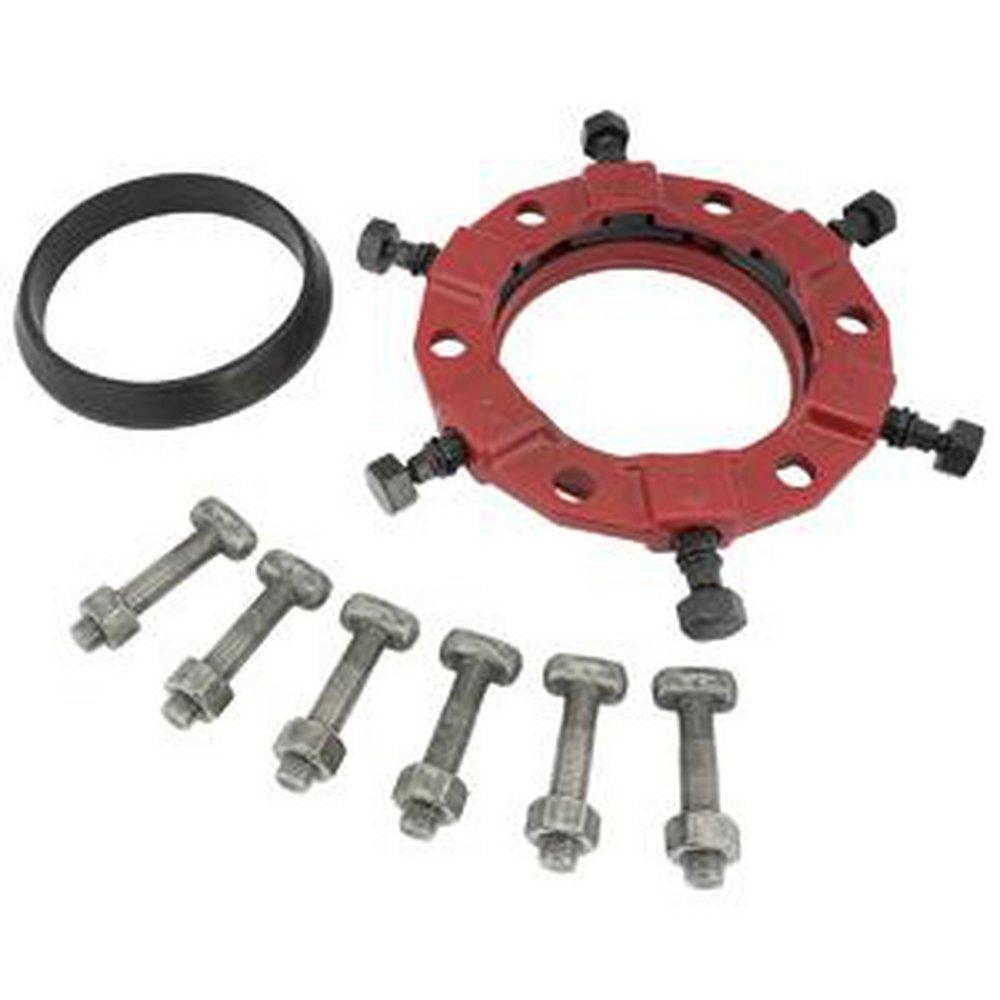

Ford Meter Box UFR1500-CA-4-U Uni-Flange® 4 in. Mechanical Joint Ductile Iron Retainer Gland

Product Description

The FORD METER BOX UFR1500-CA-4-U Uni-Flange® 4 in. Mechanical Joint Ductile Iron Retainer Gland provides full circle contact and support of the pipe wall. The Series 1500 eliminates the need to pour expensive and time-consuming concrete thrust blocks and fits C900, C909, and HDPE pipes. Gland, screws, and segments are protected with black Armor guard e-coat.

• Full circle contact and support of the pipe wall
• Eliminates the need to pour expensive and time consuming concrete thrust blocks
• Fits C900, C909 and HDPE

Product Highlights

The Uni-Flange retainer gland is designed for use with C900, C909, and HDPE pipes, offering a reliable and efficient solution for pipe restraint.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1500-CA-4-U
• Country of Origin: USA

Technical Specifications

• Type: Circle-Lock
• Series: 1500-CA
• Nominal Size: 4 inch
• Standards: AWWA
• Diameter: 4.8 inch OD
• For Use With: C909 PVC Pipes
• Connection Type: Mechanical Joint
• Material: Ductile Iron
• Hardware Material: Steel
• Domestic/Import: Import
• Finish: Black Armorguard E-Coated
• Outer Diameter: 4.8 in
• Pipe Size: 4 in
• Pressure Rating: 305 psi
• Suitable For Use With: C900 or C909 PVC Pipe
• Brand: FORD
• UNSPSC: 40175300
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: UFR1500-CA-4-U
• ANSI: ANSI A21.11, ANSI C111
• ASTM: ASTM A-536 Grade 65-45-12
• AWWA: AWWA A-21.11, AWWA C-111
• Application: PVC Pipe, HDPE Pipe
• Coating: Armorguard E-Coat
• Collection: Uni-Flange® Series UFR1500
• End Connection 1: Mechanical Joint
• End Connection 2: Mechanical Joint
• End Connections: Mechanical Joint
• Fits Pipe Size: 4 in
• Origin: Domestic
• Product Type: Joint Restraint
• Weight: 14.2
