Ford Meter Box UFR1500-CA-10-U Uni-Flange 10 in. Mechanical Joint Restrainer

Product Description

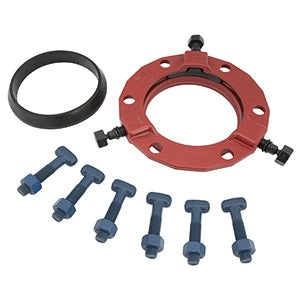

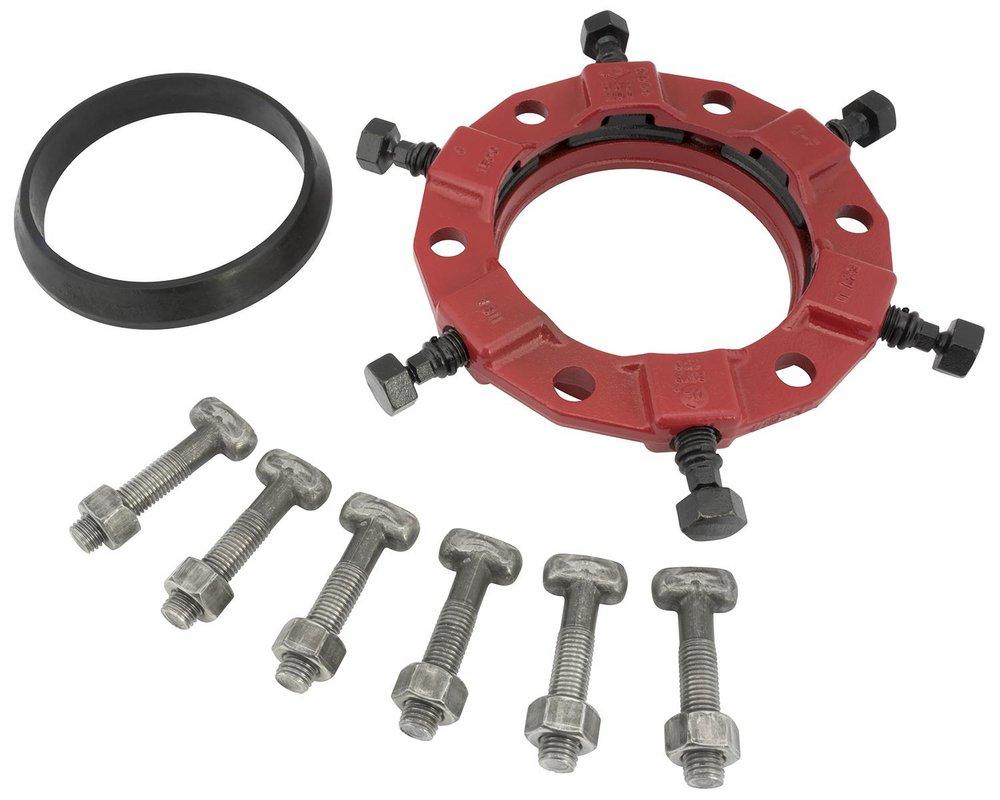

The FORD METER BOX UFR1500-CA-10-U Uni-Flange® Series 1500 eliminates the need to pour expensive and time-consuming concrete thrust blocks. It offers full circle contact and support of the pipe wall and fits C900, C909, and HDPE pipes. The gland, screws, and segments are protected with black Armor guard e-coat. Includes a set of high-strength, low-alloy t-bolts and nuts (AWWA C111).

• Full circle contact and support of the pipe wall
• Eliminates the need to pour expensive and time consuming concrete thrust blocks
• Fits C900, C909 and HDPE

Product Highlights

The Uni-Flange® Series 1500 provides reliable pipe restraint with its robust design and corrosion-resistant coating, ensuring long-lasting performance and easy maintenance.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1500-CA-10-U
• Country of Origin: Domestic

Technical Specifications

• Type: Circle-Lock
• Series: 1500-CA
• Nominal Size: 10 inch
• Standards: ANSI Specified|ASTM A536 Grade 65-45-12|AWWA C111/A21.11|FM Approved|UL Listed
• Pressure Rating: 235 psi
• Diameter: 11.1 inch Pipe OD
• For Use With: C909 PVC Pipes
• ANSI: ANSI A21.11, ANSI C111
• ASTM: ASTM A-536 Grade 65-45-12
• AWWA: AWWA A-21.11, AWWA C-111
• Application: Waterworks, PVC Pipe, PVCO Pipe, HDPE Pipe, Mechanical Joint
• Coating: Armorguard E-Coat
• Collection: Uni-Flange ®
• End Connection 1: Wedge
• End Connections: Wedge
• FM Approved: No
• Fits Pipe Size: 10 in
• Material: Ductile Iron
• NSF Certified: No
• Origin: Domestic
• Product Type: Joint Restraint
• UL Listed: No
• Connection Type: Mechanical Joint
• Hardware Material: Steel
• Domestic/Import: Import
• Finish: Black Armorguard E-Coated
• Outer Diameter: 11.1 in
• Pipe Size: 10 in
• Suitable For Use With: C900 or C909 PVC Pipe
• Brand: FORD
• UNSPSC: 40175300
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: UFR1500-CA-10-U
