Ford Meter Box UFR1400-DA-16-I 1400 restraint/import/acc 16in

Product Description

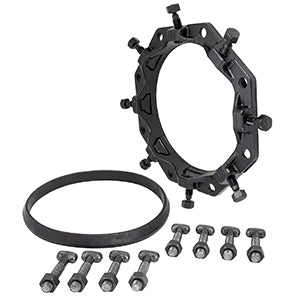

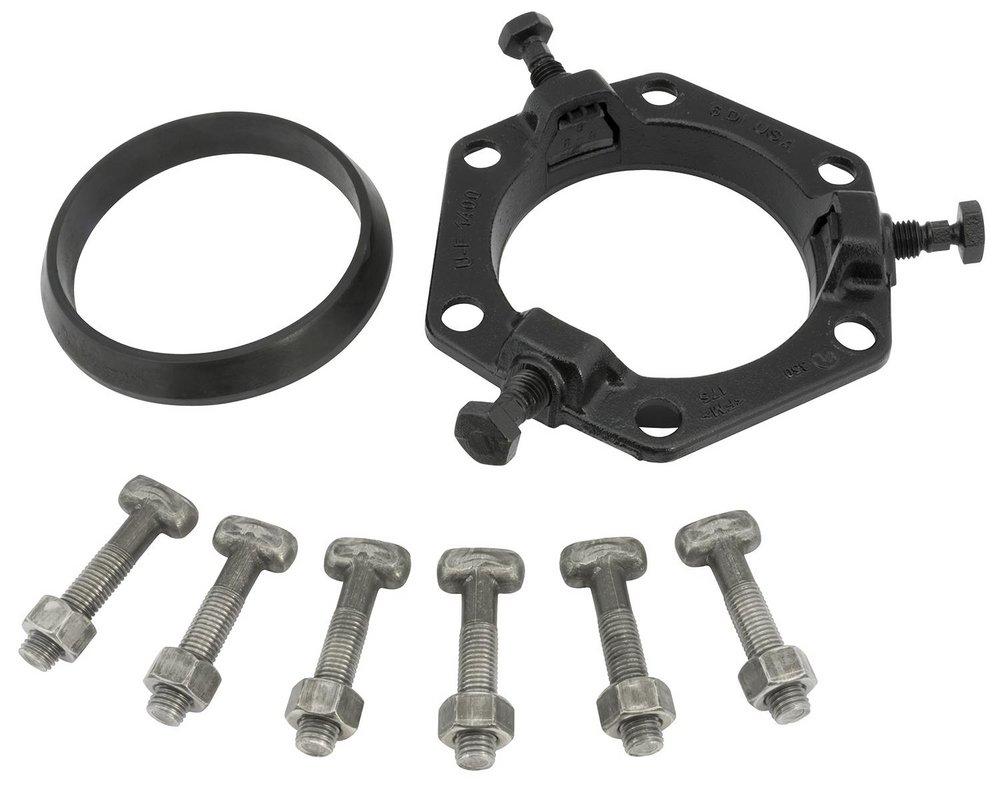

The Ford Meter Box UFR1400-DA-16-I is a 16-inch Uni-Flange Series 1400 mechanical joint ductile iron restraint. Designed for ductile iron pipe applications, this restraint eliminates the need for concrete thrust blocks and corrosion-susceptible steel tie rods. It features Auto-Tork wedge actuating screws for proper installation and contoured wedges that fit the pipe. The gland, screws, and segments are protected with an Armorguard e-coat, enhancing durability. It is FM approved and UL listed, ensuring compliance for various installations.

• Eliminates the need for costly and time-consuming concrete thrust blocks and corrosion-susceptible steel tie rods
• Auto-Tork wedge actuating screws assure proper installation
• Gland, screws, and segments are protected with black Armorguard e-coat

Product Highlights

Ductile iron restraint with Auto-Tork screws and Armorguard e-coat for secure pipe connections.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFR1400-DA-16-I
• Country of Origin: Global

Technical Specifications

• ANSI Standards: ANSI A21.11, ANSI C111
• ASTM Standards: ASTM A-536 Grade 65-45-12
• AWWA Standards: AWWA A-21.11, AWWA C-111
• Application: Ductile Iron Pipe
• Coating: Armorguard E-Coat
• Collection: Uni-Flange Series 1400
• Inside Diameter 1: 17-3/5 in
• Inside Diameter 2: 18-1/2 in
• End Connection: Mechanical Joint
• FM Approved: Yes
• Fits Pipe Size: 16 in
• Material: Ductile Iron
• Pressure Class: 350#
• Product Type: Wedge Action Retainer Gland
• UL Listed: Yes
