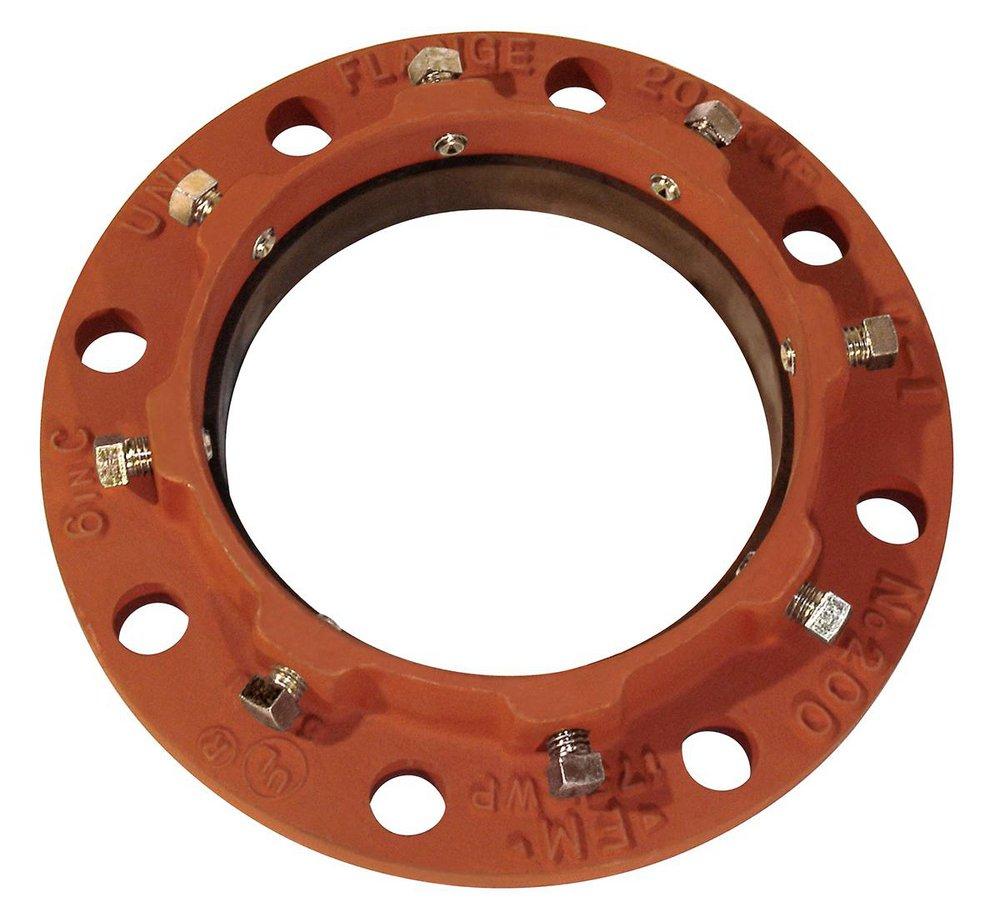

Ford Meter Box UFA200-C-4 Flange Adapter 4 in

Product Description

The FORD METER BOX UFA200-C-4 flange adapter is designed for ductile iron pipe. Restraint is provided by a set screw locking device similar to that used in mechanical joint retainer glands. The gasket is an SBR (Buna-S) mechanical joint. It is designed for ease of on-site installation.

• Gasket is an SBR (Buna-S) mechanical joint
• Designed for ease of on-site installation
• Restraint is provided by a set screw locking device

Product Highlights

The flange adapter is designed for ductile iron pipe with easy on-site installation.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: UFA200-C-4

Technical Specifications

• Box Quantity: 1
• ANSI: ANSI B16.1, ANSI B16.5
• ASTM: ASTM A-536 Grade 65-45-12
• AWWA: AWWA Class D
• Application: Ductile Iron Pipe
• Coating: Shop Coated
• Color Finish Name: Red
• Diameter: 9
• End Connection 1: Flanged
• End Connection 2: Gasket
• End Connections: Flanged x Gasket
• Fits Pipe Size: 4 in
• Length: 1-13/16
• Material: Ductile Iron, Rubber, Steel
• Material Type: SBR
• Pressure Class: 200#
• Product Type: Flange Adapter
• Proposition 65: WARNING: Cancer and Reproductive Harm WWW.p65warnings.ca.gov
• UL Listed: Yes
• Fitting/Connector Type: Flange Adapter
• Nominal Size: 4 in
• End Style: Flange
• Finish: Red
• Domestic/Import: Import
• Bolt Circle Diameter: 7-1/2 in
• Bolt Hole Size: 3/4 in
• Inside Diameter: 4-15/16 in
• Number of Bolt Holes: 4
• Outside Diameter: 9 in
• Pressure Rating: 200 psi
• Series: 200
• Thickness: 1-7/8 in
• Brand: FORD
• UNSPSC: 40175300
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: UFA200-C-4
• Standards: ANSI B16.1/B16.5|ASTM A536|AWWA Compliant
