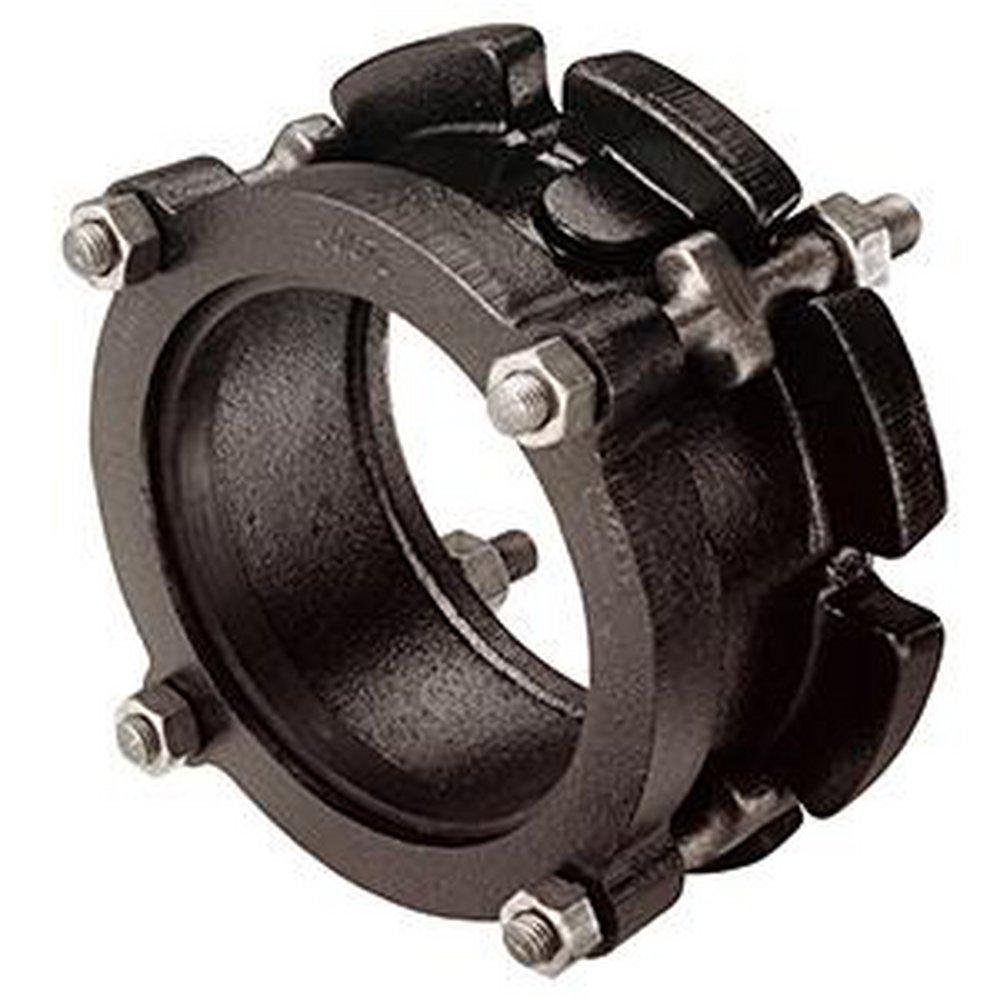

Ford Meter Box FFCA-917 8in flanged coupling adapter

Product Description

The FORD METER BOX FFCA-917 is a flanged coupling adapter designed for pipe connections. Constructed from ductile iron and rubber, this coupling adapter ensures a secure and reliable fit for plain end pipes. It conforms to ANSI A21.10, ANSI B16.1 Class 125, and ANSI C110 standards.

• Constructed from durable ductile iron and rubber materials
• Suitable for use with plain end pipes
• Compliant with ANSI A21.10, ANSI B16.1 Class 125, and ANSI C110 standards

Product Highlights

The FORD METER BOX FFCA-917 flanged coupling adapter provides a reliable connection for various piping systems.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: FFCA-917

Technical Specifications

• Weight: 42.64
• Box Quantity: 1
• OD Range: Range: 8.76 - 9.17
• ANSI: ANSI A21.10, ANSI B16.1 Class 125, ANSI C110
• ASTM: ASTM A-536 Grade 65-45-12, ASTM D-2000
• Application: Pipe Fitting, Plain End Pipe
• Coating: Shop Coated
• Collection: Style FFCA
• End Connection 1: Flanged
• End Connection 2: Flanged
• End Connections: Flanged
• FM Approved: No
• Fitting Size 1: 8
• Fitting Size 2: 8
• Fitting Sizes: 8 in
• Fitting Type: Coupling Adapter, Straight
• Length: 4-3/16
• Material: Ductile Iron, Rubber
• Material Type: Buna-N
• NSF: NSF 61
• NSF Certified: Yes
• Range (in): 8.76 in - 9.17 in
• UL Listed: Yes
