Ford Meter Box fbc-1350 Bell Joint Clamp 12 Inch

Product Description

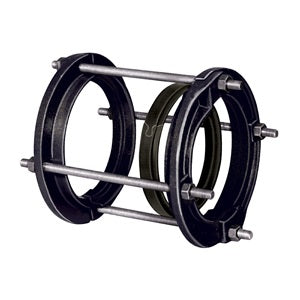

The FORD METER BOX fbc-1350 is a 12-inch bell joint clamp designed to repair and seal bell joints on pressurized water and wastewater piping systems. It provides a mechanical restraint around the bell end of a pipe joint, stopping leaks and reinforcing the joint against pressure and movement. Licensed plumbers and utility contractors install this clamp during mainline repairs where a bell joint has cracked, shifted, or begun to weep. At 33.15 pounds, it is a heavy-duty fitting built for demanding underground utility work. The clamp accommodates an OD range of 13.20 to 13.50 inches, making proper pipe measurement essential before installation.

This bell joint clamp is suited for water distribution and sewer main repair applications. It is typically used by municipal utility crews, pipeline contractors, and licensed plumbers working on cast iron, ductile iron, or similar large-diameter pipe systems. The fbc-1350 is appropriate for both new installation corrections and in-service emergency repairs where the joint must be secured quickly and reliably without full pipe replacement.

Key Features

• Fits pipe OD range of 13.20 to 13.50 inches for precise fitment on 12-inch nominal pipe
• Heavy construction at 33.15 pounds provides structural reinforcement at the bell joint
• Mechanical clamp design allows installation without full line shutdown in some repair scenarios
• Sold individually, one clamp per box, for single-joint repair applications

Compatibility

Designed as an OEM-style bell joint repair clamp for 12-inch nominal pipe with an outside diameter between 13.20 and 13.50 inches, typical of cast iron and ductile iron water and sewer mains.

Installation Notes

Installation should be performed by a licensed plumber or qualified utility pipeline technician in accordance with local plumbing codes and AWWA guidelines. Depressurize or isolate the affected line segment before positioning the clamp around the bell joint. Tighten fasteners to the specified torque range using a calibrated torque wrench. Verify joint integrity by slowly restoring line pressure and inspecting for leaks before returning the system to full service.

Technical Specifications

• Nominal Pipe Size: 12 inches
• OD Range: 13.20 to 13.50 inches
• Weight: 33.15 pounds
• Torque Specification: 60 to 70 ft. lbs.
• Box Quantity: 1

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: fbc-1350
