Ford Meter Box FB1101-3-Q-NL Ballcorp 3/4 in MIP/PEP QJ

Product Description

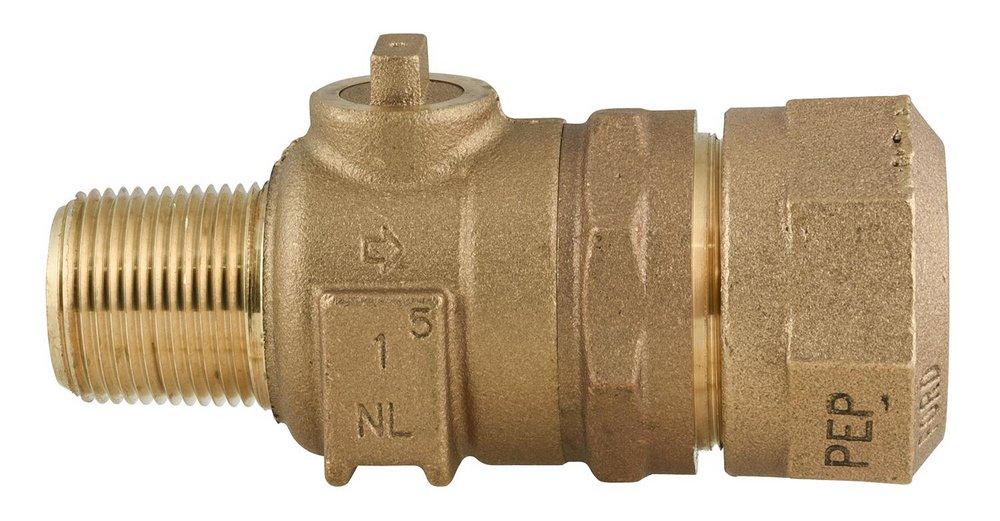

The FORD METER BOX FB1101-3-Q-NL Ball Corporation Stop is designed for use with SIDR7 PE pipe. This 3/4 in nominal valve features MNPT x Quick Joint Nut end style and a brass body. It has been tested for leaks with air pressure and conforms with AWWA Standard C800.

• Lead Law Compliant
• Designed and manufactured to conform with AWWA Standard C800
• Compatible with tapping machines of current design

Product Highlights

The FORD Ball Corporation Stop is individually inspected and features ends secured with adhesive to prevent unintentional disassembly.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: FB1101-3-Q-NL

Technical Specifications

• ANSI: ANSI 61, ANSI 372
• ASTM: ASTM B62, ASTM B584
• AWWA: AWWA C800
• End Connection 1: MPT
• End Connection 2: Quick Joint
• End Connections: MPT x Quick Joint
• Inlet Service Size: 3/4
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 4-7/16
• Material: Brass
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• OutletMeter Size: 3/4
• Pressure - Maximum: 300 psi
• Valve Size: 3/4 in
• Series: FB1101
• Type: Ball
• Nominal Size: 3/4 in
• End Style: MNPT x PEP Quick Joint
• Body Material: Brass
• Inlet to Outlet Length: 4-7/16 in
• Pressure Rating: 300 psi
• Softgoods Material: EPDM O-Ring
• Trim Material: Molded EPDM Rubber Seat
• Brand: FORD
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: FB1101-3-Q-NL
