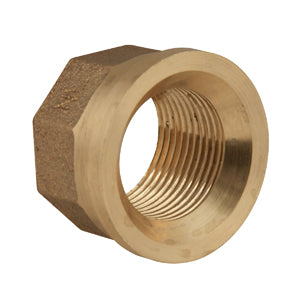

Ford Meter Box css1-33-nl 3/4 Fip Swivel Coppersetter Fitting

Product Description

The FORD METER BOX css1-33-nl is a no-lead swivel fitting designed to connect a 3/4-inch female iron pipe (FIP) thread to a 3/4-inch female coppersetter port. This type of swivel connection allows the fitting to rotate during installation, reducing stress on the pipeline and making alignment easier in tight meter pits or vault installations. The no-lead construction meets drinking water compliance requirements, making it appropriate for potable water service applications. Licensed plumbers and water utility installers typically use this fitting when setting or replacing residential and light commercial water meters.

This fitting is used in water meter installations where a coppersetter interfaces with an iron pipe threaded service line. The swivel design is particularly useful in confined meter pit environments where rigid connections are difficult to align. It is suited for residential water service assemblies and is commonly installed by utility contractors, journeyman plumbers, and meter service technicians working on cold water distribution systems.

Key Features

• No-lead construction for compliance with potable water safe drinking water regulations
• Swivel design reduces torsional stress on connected piping during installation
• 3/4-inch female iron pipe thread on one end for standard service line connection
• 3/4-inch female coppersetter port on the other end for direct meter set interface
• Compact form factor suited for meter pit and vault installations

Compatibility

Designed as an OEM-style replacement swivel fitting for 3/4-inch coppersetter water meter installations using female iron pipe threaded service connections.

Installation Notes

Installation should be performed by a licensed plumber or authorized water utility technician. Shut off the water service at the curb stop or main valve and depressurize the line before removing or installing any fitting. Use appropriate pipe thread sealant rated for potable water on FIP connections. Follow all applicable local plumbing codes and utility standards when setting or replacing water meter assemblies.

Technical Specifications

• Connection Type: 3/4 inches Female Iron Pipe (FIP) swivel to 3/4 inches Female Coppersetter
• Lead Content: No-lead
• Inlet Size: 3/4 inches
• Outlet Size: 3/4 inches

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: css1-33-nl
