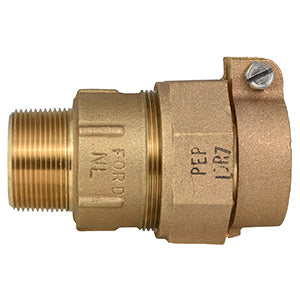

Ford Meter Box c86-66-idr7-nl Pack Joint Coupling

Product Description

The FORD METER BOX c86-66-idr7-nl is a no-lead pack joint coupling designed for connecting polyethylene pipe to threaded iron pipe installations. This three-way transition fitting joins a 1-1/2 inch IDR-7 PE pipe pack joint end to a 1-1/2 inch extra strong (XS) connection and a 1-1/2 inch male iron pipe thread. It is used in water service line applications where PE pipe transitions to metal or threaded piping systems. Licensed plumbers and water works contractors install this fitting during service line construction or repair. The no-lead construction meets drinking water compliance requirements for potable water systems.

This coupling is suited for residential and commercial water service installations where IDR-7 polyethylene pipe transitions to iron pipe thread connections. It is commonly installed at meter sets, curb stops, and service entry points. The extra strong end rating supports higher-pressure service conditions. Contractors working on water main taps and service line replacements will encounter this fitting type in standard municipal and private water service work.

Key Features

• Three-end transition: 1-1/2 inch IDR-7 PE pack joint, 1-1/2 inch extra strong, and 1-1/2 inch male iron pipe thread
• No-lead construction for potable water compliance
• Pack joint connection provides a secure mechanical grip on PE pipe without solder or adhesive
• Extra strong (XS) end rating supports elevated service pressures
• Also referenced as Q28-66 in FORD METER BOX product literature

Compatibility

Designed as an OEM-style replacement or direct-use fitting compatible with 1-1/2 inch IDR-7 polyethylene pipe in water service line applications. Also cross-references to FORD METER BOX part number Q28-66.

Installation Notes

Installation should be performed by a licensed plumber or certified water works technician in accordance with local plumbing codes and AWWA standards. Shut off and depressurize the water service line before disassembly or fitting installation. Pack joint connections require the PE pipe end to be cut square and fully seated before tightening the compression nut. Do not overtighten threaded connections; use appropriate thread sealant approved for potable water service on all iron pipe thread joints.

Technical Specifications

• Connection 1: 1-1/2 inches IDR-7 PE Pipe Pack Joint
• Connection 2: 1-1/2 inches Extra Strong (XS)
• Connection 3: 1-1/2 inches Male Iron Pipe Thread
• Lead Content: No Lead
• Weight: 3.0 pounds

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: c86-66-idr7-nl
