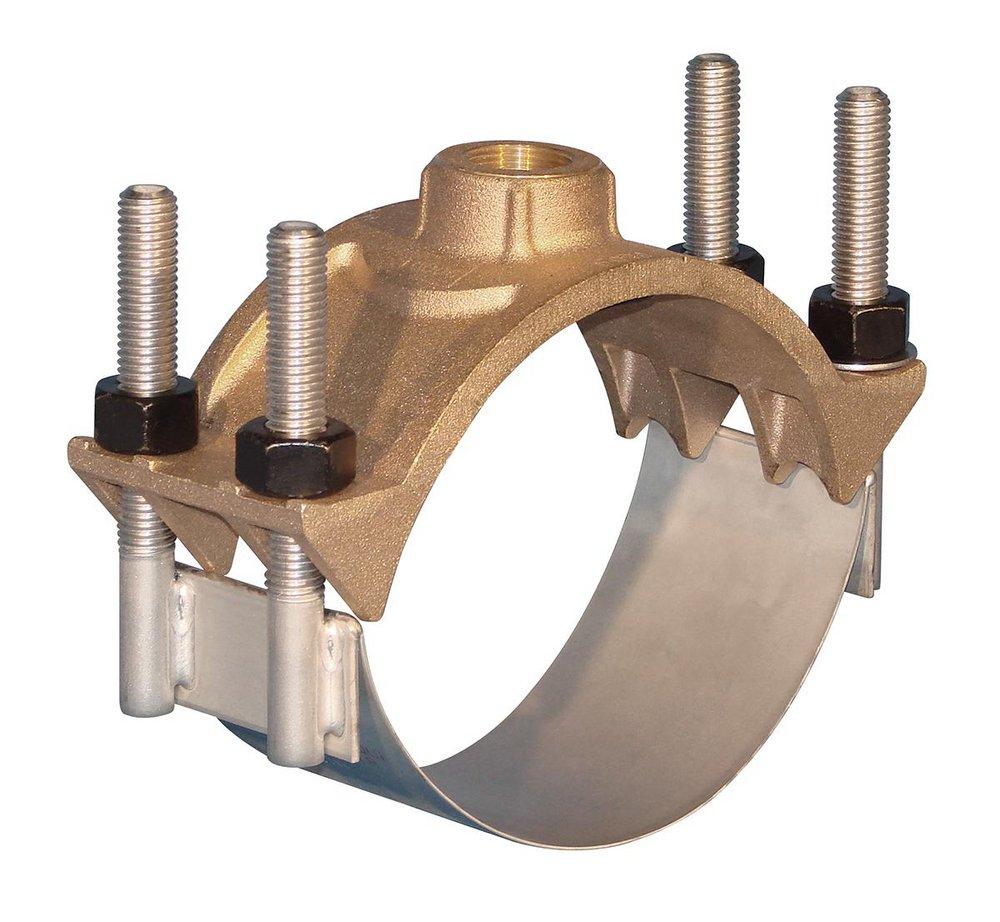

Ford Meter Box 202BS-905-IP6 Single Strap Pipe Saddle, 8 in, 1-1/2 in FNPT

Product Description

The FORD METER BOX 202BS-905-IP6 single strap pipe saddle is designed for C900 PVC, steel size PVC, or ductile iron pipe. It features stainless steel bands in place of standard silicon bronze straps, offering strength and flexibility. The stainless steel conforms to the PVC pipe surface, while the brass provides the strength to support service lines. Specially sized for tapping PVC pipe.

• Stainless steel nuts are PTFE-coated to prevent galling
• Band and 5/8 in UNC threaded studs are made of 18-8 304 stainless steel, welds are fully passivated for corrosion resistance
• Stainless Steel Band/Bolts/Studs, Teflon-Coated Stainless Steel Nuts and Washers

Product Highlights

The 202BS series service saddles incorporate stainless steel bands, ideally suited for tapping PVC pipe. Conforms to Uni-Bell and AWWA stipulations for PVC pipe use.

Product Information

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: 202BS-905-IP6
• Country of Origin: US

Technical Specifications

• Type: Single Strap
• Nominal Size: 8 in
• Connection Type: 1-1/2 in FNPT
• Bolt Material: 304 Stainless Steel
• Bolt Size: 5/8 in
• Clamp Material: Brass
• Domestic/Import: Domestic
• Gasket Material: EPDM Rubber
• Hole Diameter: 9.05 in
• Brand: FORD
• For: C900 PVC, Steel Size PVC or Ductile Iron Pipe
• Manufacturer: Ford Meter Box
• Manufacturer Part Number: 202BS-905-IP6
