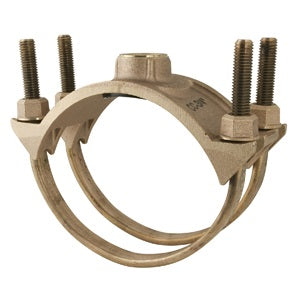

Ford Meter Box 202b-1625-ip4 Brass Double Strap Saddle

Product Description

The FORD METER BOX 202b-1625-ip4 is a double strap brass saddle designed for tapping 1-inch iron pipe (IP) connections on large-diameter water mains. Built from brass for corrosion resistance in buried and wet service environments, this saddle clamps securely around the main pipe and provides a stable, leak-resistant tap point. The double strap design distributes clamping force evenly across the pipe surface, reducing the risk of joint failure under pressure. It is sized for pipe outside diameters ranging from 15.30 to 16.25 inches, making it appropriate for 14-inch nominal pipe. Licensed plumbers and water utility crews are the primary installers of this fitting.

This saddle is used in water distribution and municipal service line applications where a new branch tap is being added to an existing main without full line shutdown. Typical installations include service line tie-ins, meter set connections, and hydrant branch feeds on water mains in the 14-inch nominal size range. The 1-inch iron pipe tap outlet accommodates standard corporation stop fittings commonly used in metered water service installations. This fitting is suited for both new construction and retrofit tap work on potable water systems.

Key Features

• Double strap design provides balanced clamping force across the pipe circumference
• Brass construction resists corrosion in buried and wet service conditions
• Compatible with pipe outside diameters from 15.30 to 16.25 inches
• 1-inch iron pipe tap outlet accepts standard corporation stops and service fittings
• Sold in a box quantity of 2 units

Compatibility

Designed for use on pipes with an outside diameter between 15.30 and 16.25 inches, corresponding to 14-inch nominal pipe, with a 1-inch iron pipe tap connection. Consult the pipe OD before ordering to confirm fit within the stated strap range.

Installation Notes

Installation of pipe saddles on pressurized water mains must be performed by a licensed plumber or qualified water utility technician in accordance with local plumbing codes and AWWA service line standards. Before drilling the tap, confirm the saddle straps are torqued evenly and the gasket is properly seated to prevent leaks. Use appropriate wet-tap drilling equipment rated for the line pressure present. Always verify local authority requirements for potable water fittings, including NSF or AWWA compliance, before placing the saddle in service.

Technical Specifications

• Material: Brass
• Strap Configuration: Double strap
• Pipe OD Range: 15.30 to 16.25 inches
• Nominal Pipe Size: 14 inches
• Tap Outlet Size: 1 inch Iron Pipe (IP)
• Weight: 15.88 pounds
• Box Quantity: 2

Standard Information

• Brand: FORD METER BOX
• Manufacturer Part Number: 202b-1625-ip4
