Fluke T5-1000 Voltage, Continuity and Current Tester

Product Description

The FLUKE T5-1000 is a versatile electrical tester designed for troubleshooting. It measures current up to 100 A without breaking the circuit, thanks to its OpenJaw design. This compact tool checks voltage, continuity, and current, automatically selecting AC or DC voltage up to 1000 V. Resistance measurements go up to 1000 Ω.

• OpenJaw design measures current without breaking the circuit.
• Automatically selects AC or DC voltage, up to 1000 V.

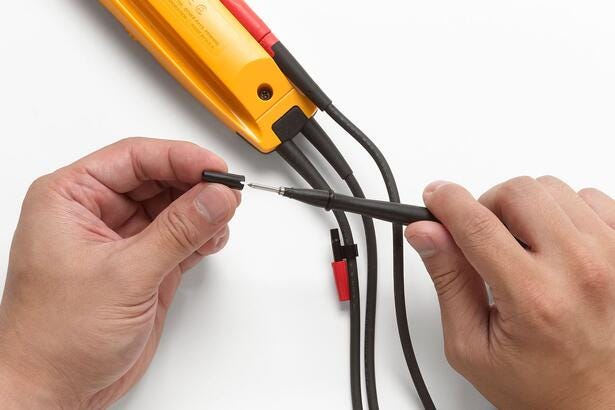

• Detachable Slim Reach probe tips for tight spaces.

Product Highlights

This electrical tester is ideal for measuring current, voltage and resistance with its automatic selection and OpenJaw design.

Product Information

Standard Information

• Brand: FLUKE
• Manufacturer Part Number: T5-1000

Technical Specifications

• Jaw opening: 12.9 mm (0.5 in)
• Max wire size: 1/0 THHN Cable
• Current range AC RMS: 0 to 100.0 A
• Accuracy AC current (50/60 Hz): 3% ± 3 counts
• AC response: Averaging
• Voltage range AC/DC: 0 to 1000 V
• Voltage accuracy AC: 1.5% ± 2 counts
• Voltage accuracy DC: 1% ± 1 count
• Resistance range: 0 to 1000 Ω
• Continuity beeper threshold: On at < 25 Ω, off at > 400 Ω
• Volts indicator LED threshold: Guaranteed on by 30 V AC
• Operating temperature: -10°C to 50°C
• Storage temperature: -30°C to 60°C
• Humidity (without condensation): 0% to 95% (5°C to 30°C); 0% to 75% (30°C to 40°C); 0% to 45% (40°C to 50°C)
• Dust/water resistance: Yes
• Operating altitude: 2000 meters max
• Temperature coefficient: 0.1 x (specified accuracy)/°C (< 18°C or> 28°C)
• Measurement Category: IEC 61010-2-032, IEC61010-2-033: CAT IV 600 V / CAT III 1000 V, 100 A ac
• Agency approvals: CSA, TUV
• Maximum voltage: 1000 V between any terminal and earth ground
• Battery life: 200 hour zinc chloride, 400 hour alkaline
• Battery type: 2 x AA
• Low battery indicator: Yes
• Current sensor opening: 12.9 mm
