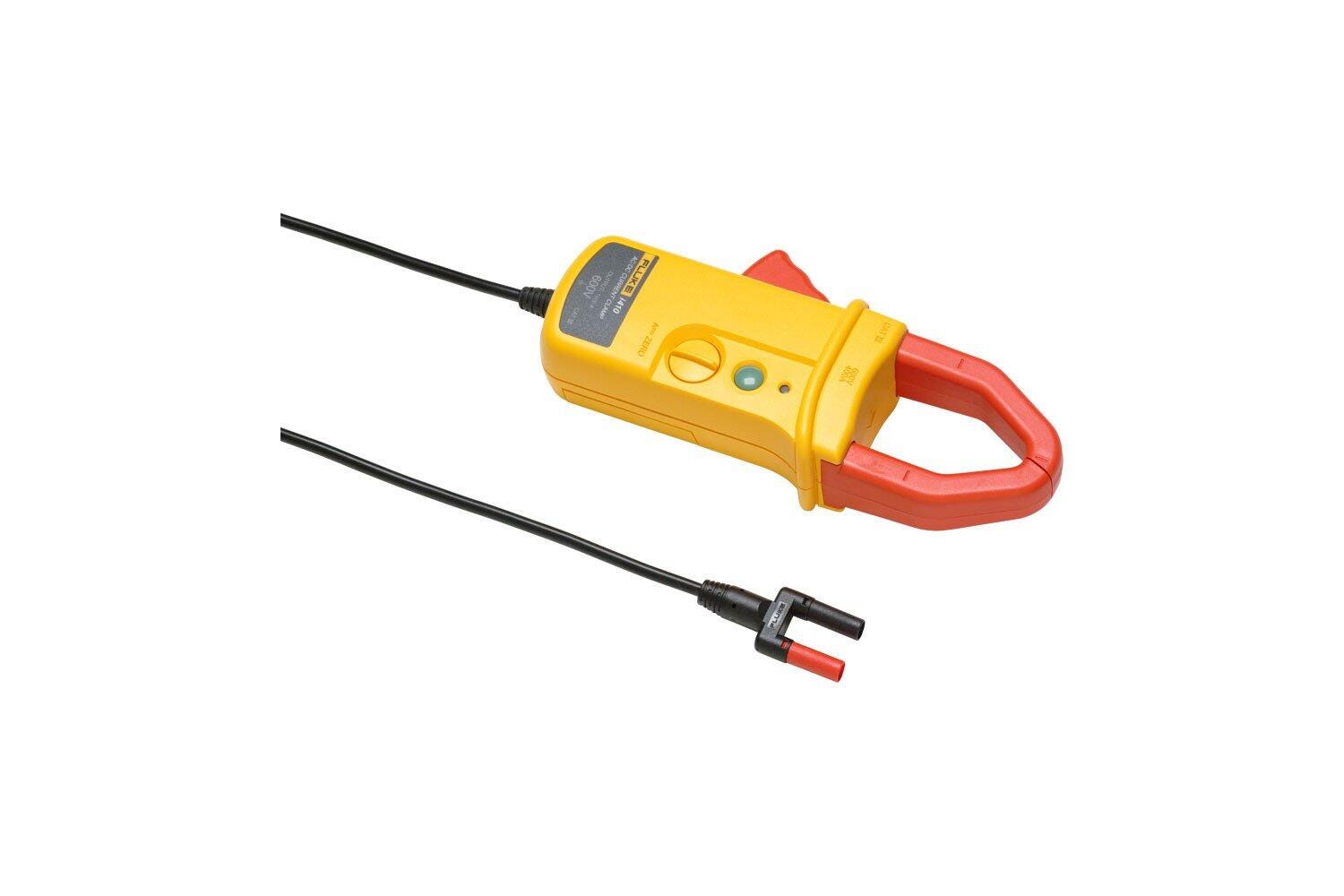

Fluke I410 AC/DC Current Clamp

Product Description

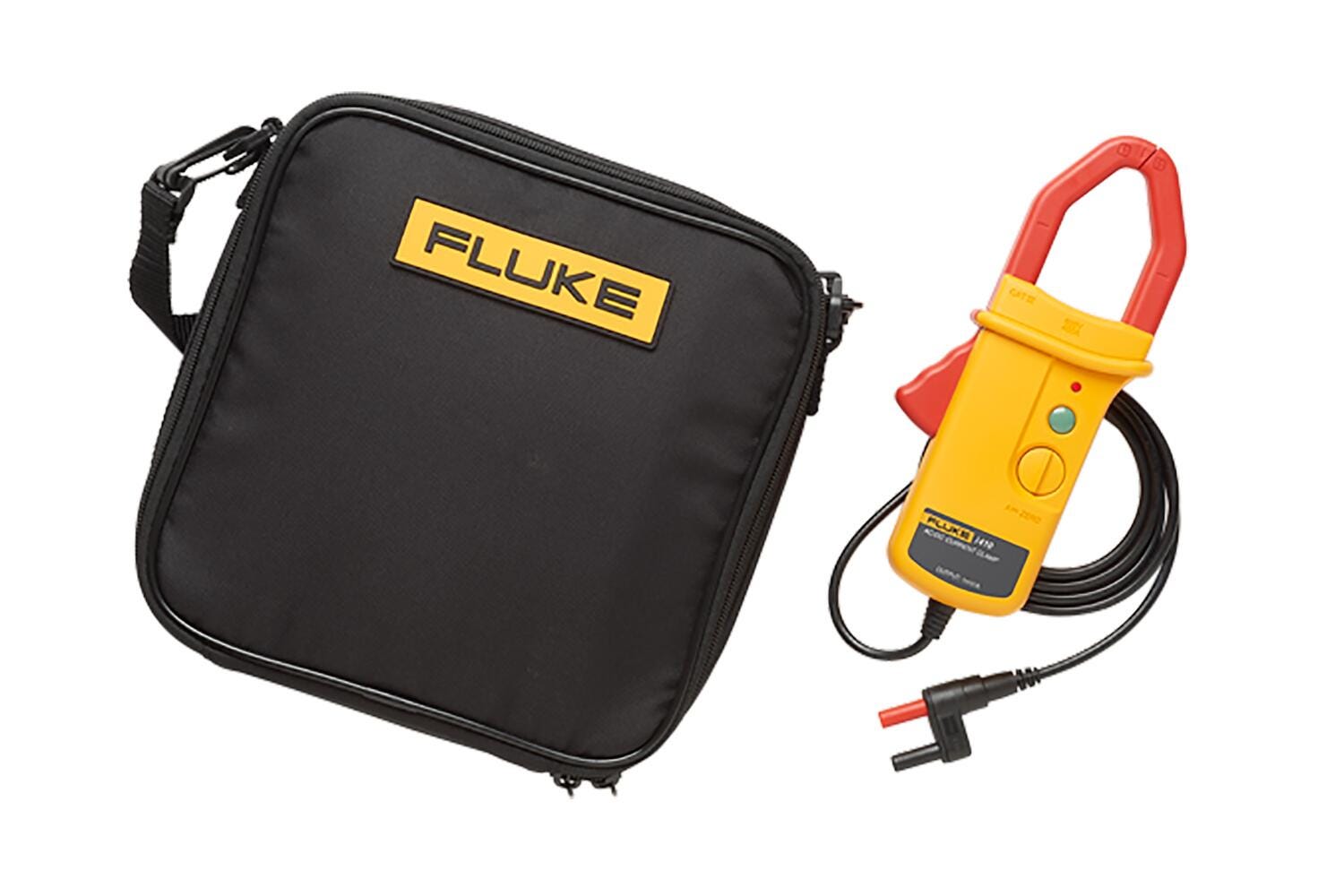

The Fluke I410 AC/DC current clamp expands the functionality of digital multimeters and measures up to 400 amps for both AC and DC current. The large clamp claw gives you access to difficult to reach areas. The kit includes a handy carrying case.

• Battery-powered Hall-effect probe measures 1A to 400 A
• 1mV/Amp output guarantees easy reading on your meter
• Take accurate current readings without breaking the circuit

Product Highlights

The Fluke I410 AC/DC current clamp measures up to 400 amps for both AC and DC current. It features a Hall-effect probe, 1mV/Amp output, and a maximum conductor diameter of 32 mm.

Product Information

Standard Information

• Brand: FLUKE
• Manufacturer Part Number: I410

Technical Specifications

• Measurement type: Hall sensor
• Nominal current range: 400 A, AC/DC
• Continuous current range: 1 A - 400 A AC/DC
• Maxium non-destructive current: 400 A
• Lowest measureable current: 0.5 A
• Basic accuracy: 3.5% + 0.5 A
• Useable frequency: DC - 3 kHz
• Output level(s): 1 mV/A
• Zerro error adjustmemt: Yes
• Safety: CAT III, 600 V
• Maximum voltage: 600 V
• Battery life: 9 V, 60 h
• Maximum conductor diameter: 30 mm 2 x 25 mm
• Output cable length: 1.6 m
• Shrouded banana plugs: Yes
• Brand: Fluke
• MPN: I410
