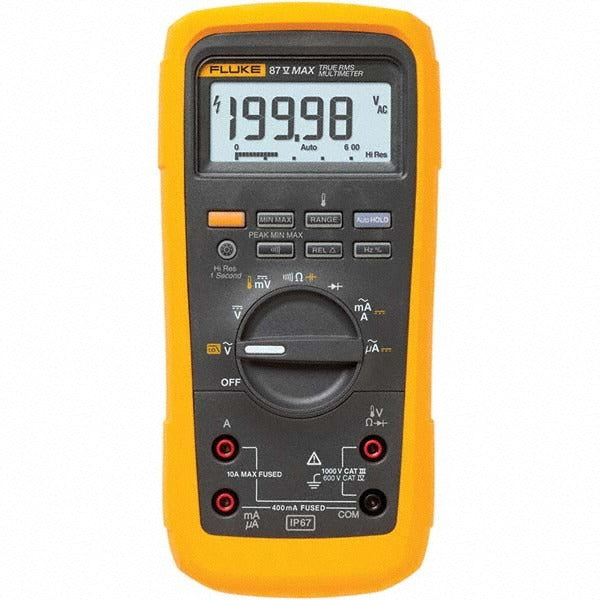

Fluke FLUKE-87V-MAX Digital Multimeter 1000 Vdc

Product Description

The FLUKE FLUKE-87V-MAX is a true-RMS digital multimeter built for trade professionals working in demanding electrical and industrial environments. It measures DC voltage up to 1,000 volts, AC voltage, current, resistance up to 50 megohms, capacitance up to 10,000 microfarads, frequency, and temperature across a wide range of -328 to 1,994 degrees F (-200 to 1,090 degrees C). Rated CAT III and CAT IV for use in high-energy distribution systems, this meter is appropriate for licensed electricians, HVAC technicians, and industrial maintenance personnel who need accurate, safe measurements at the service entrance and beyond.

The FLUKE-87V-MAX is suited for residential, commercial, and light industrial electrical work. Its multi-parameter measurement capability makes it a practical tool for troubleshooting motors, drives, transformers, HVAC systems, and control circuits. The CAT IV rating qualifies it for use at the utility service entrance level, while the CAT III rating covers downstream distribution panel and branch circuit work. Electricians and HVAC techs working across both building and equipment-level diagnostics will find the measurement range covers most field scenarios without switching instruments.

Key Features

• Measures DC and AC voltage up to 1,000 volts with CAT III and CAT IV safety ratings
• Resistance measurement up to 50 megohms (50,000,000 ohms) for insulation and continuity checks
• Capacitance measurement up to 10,000 microfarads for capacitor verification on motors and HVAC equipment
• Temperature measurement range of -328 to 1,994 degrees F for wide HVAC and industrial application coverage
• Measures current and frequency in addition to voltage, resistance, capacitance, and temperature
• Compact form factor at 8.5 x 4 x 2.5 inches and 1.54 pounds for field portability

Compatibility

Designed as a general-purpose digital multimeter for use by electricians, HVAC technicians, and industrial maintenance professionals requiring CAT III and CAT IV rated test equipment.

Installation Notes

This meter is a test instrument, not an installed component. Always verify test lead condition and ratings before use on energized circuits. De-energize and lock out equipment wherever safe measurement practices and applicable codes allow before probing. Follow NFPA 70E arc flash safety requirements and use appropriately rated PPE when working on or near energized conductors.
