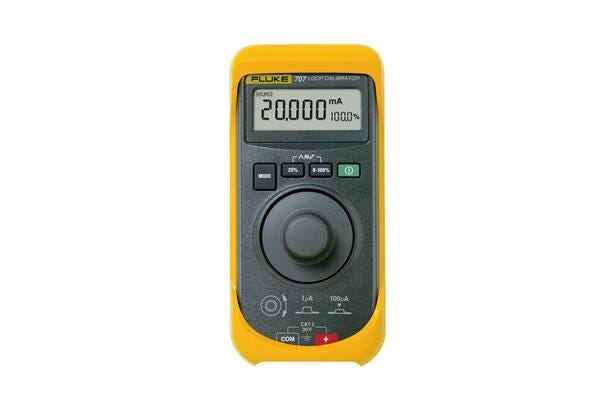

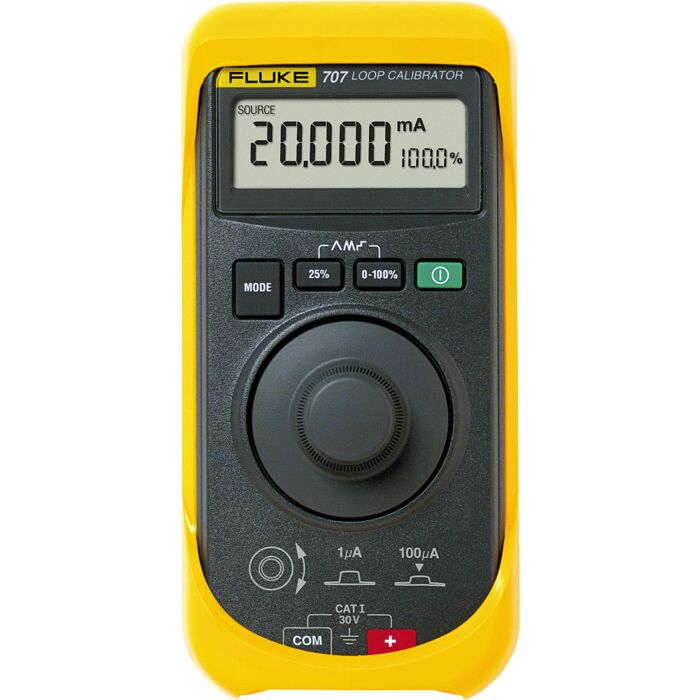

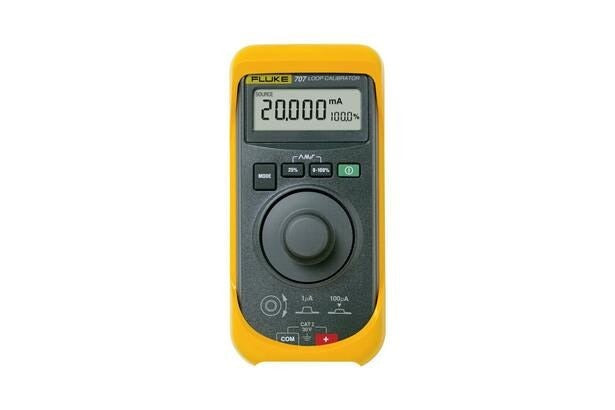

Fluke Fluke-707 Current Loop Calibrator with Quick Click Knob

Product Description

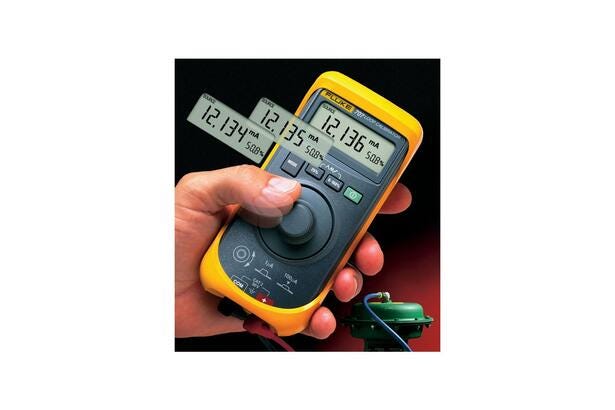

The Fluke 707 loop calibrator is a high performance solution for calibration, repair, and maintenance of current loops. It combines the best features of a push-button and knob-base loop calibrator, for extremely fast and easy calibration. The large display and simple quick click rotary button lets you make quick selections and adjustments with one hand.

• Features large display and simple, quick-click interface for easy one-handed operation.
• Provides simultaneous mA and % readout for quick, easy interpretation of readings.
• Includes HART compatible resistance connected in series with the loop supply for compatibility with HART communicators

Product Highlights

The Fluke 707 offers mA sourcing, simulation, and measurement with simultaneous display of mA and % of span, and selectable step or ramp outputs.

Product Information

Standard Information

• Brand: FLUKE
• Manufacturer Part Number: FLUKE-707

Technical Specifications

• Current measurement Range: 0 to 24 mA
• Current measurement Resolution: 0.001 mA
• Current measurement Accuracy: 0.015% Rdg + 2 LSD
• Current sourcing Range: 0 to 20 mA or 4 to 20 mA
• Current sourcing Accuracy: 0.015% Rdg + 2 LSD
• Current sourcing Drive capability: 1200 950 at 20 mA in HART mode
• Current simulation Range: 0 to 20 mA or 4 to 20 mA
• Current simulation Accuracy: 0.015% Rdg + 2 LSD
• Current simulation Ext. loop voltage requirement: 12-30 V
• Loop power: While measuring mA, 24 V
• Voltage measurement Range: 0 to 28 V DC
• Voltage measurement Resolution: 1 mV
• Voltage measurement Accuracy: 0.015% Rdg + 2 LSD
• Operating temperature: -10°C to 55°C
• Storage temperature: -30°C to 60°C
• Humidity (without condensation): 0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C)
• Temperature coefficient: -10°C to 18°C, 28°C to 55°C, ±.005% of range per °C
• Safety: CSA C22.2 No. 1010.1:1992
• EMC: EN50082-1:1992 and EN55022:1994 Class B
• Maximum voltage: 30 V
• Size: 152 x 70 x 41 mm
• Weight: 224 g (340 g including holster)
• Batteries: One 9 V battery Alkaline
• Warranty: Three years
• Shock and vibration: Per MIL-T-28800 for a Class 2 Instrument
• Display current and % of span: Yes
• Auto step, auto ramp: Yes
• Span check: Yes
