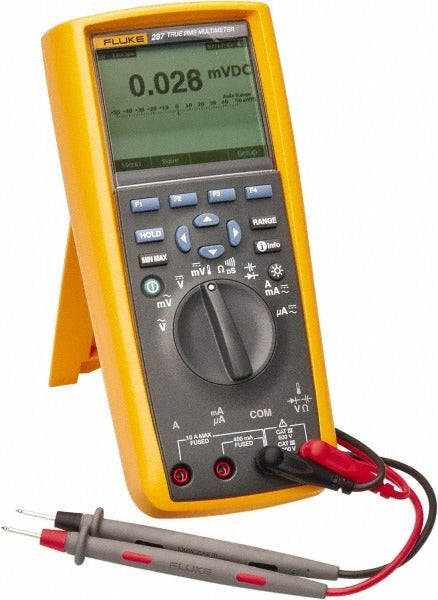

Fluke FLUKE-287 True Rms Digital Multimeter 1000V

Product Description

The FLUKE FLUKE-287 is a True RMS digital multimeter built for licensed electricians, industrial technicians, and field service professionals who need accurate measurements in demanding environments. It offers auto ranging and manual ranging in a single unit, with a 50,000-count display for high-resolution readings. Rated CAT III and CAT IV at 1,000 volts, it meets IEC 61010 safety standards for work on distribution panels, building electrical systems, and industrial equipment. The FLUKE-287 measures voltage, current, resistance, capacitance, frequency, and temperature, making it a comprehensive diagnostic tool for a wide range of electrical and HVAC service calls.

The FLUKE-287 is suited for residential, commercial, and industrial electrical work. It handles DC voltage up to 1,000 volts and AC voltage up to 1,000 volts, with current measurement up to 10 amps DC or AC and up to 400 milliamps on the milliamp ranges. The included temperature probe extends the measurement range from -328 to 2,462 degrees F (-200 to 1,350 degrees C). Electricians performing panel work, HVAC techs checking motor circuits, and industrial maintenance technicians troubleshooting control systems will all find practical use for this meter.

Key Features

• True RMS measurement for accurate readings on non-sinusoidal waveforms
• 50,000-count display for high-resolution voltage, resistance, and current readings
• Auto ranging and manual ranging modes for flexible operation
• CAT III and CAT IV rated at 1,000 volts per IEC 61010
• Measures capacitance up to 100,000 microfarads and resistance up to 500 megohms
• Additional functions include continuity, diode test, duty cycle, pulse width, peak, min and max, data logging, and dB measurement
• Powered by AA batteries; ships with test leads and manual

Compatibility

Designed as a general-purpose True RMS digital multimeter compatible with standard test lead accessories and probes. The included temperature probe supports the full measurement range stated in the specifications.

Installation Notes

Installation and use should be performed by qualified electricians or licensed technicians familiar with safe metering practices. Always verify the meter's CAT rating is appropriate for the circuit being tested before making contact. De-energize and lock out circuits where possible before connecting or disconnecting test leads. Follow IEC 61010 and applicable NEC guidelines when working on energized distribution or industrial systems.
