Product Description

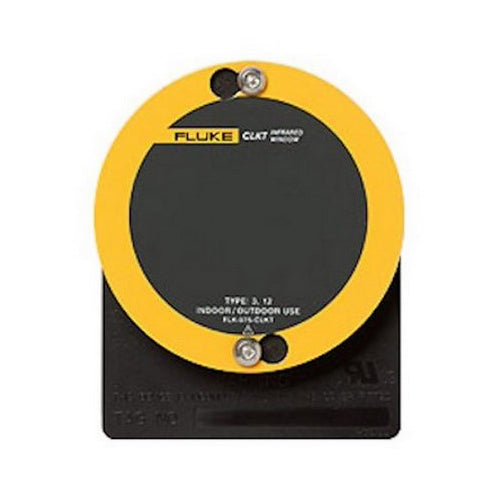

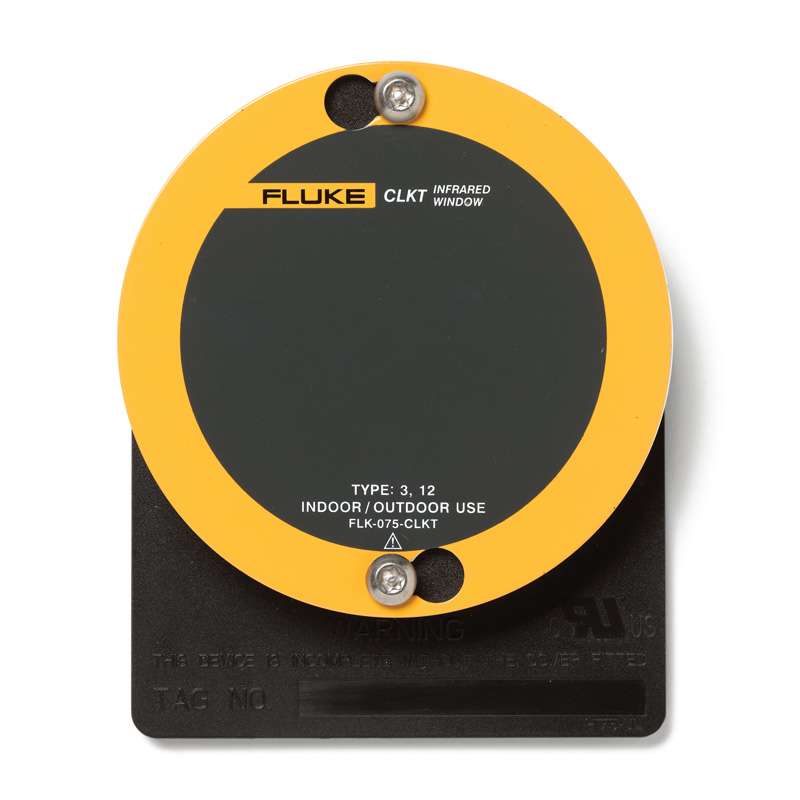

The Fluke FLK-100-CLKT is a C-Range Infrared Window designed for use with thermal imaging cameras. It features a crystal insert of one point nine seven inches and a window thickness of two millimeters. This product is engineered for quick inspections without needing to power down equipment. The design provides safety and ease of access while ensuring compliance with various industry standards.
- Engineered to withstand electric arcs up to fifty kA for thirty cycles
- ClirVu coating protects against moisture and enhances durability
- Includes installation instructions and security access key
Product Highlights
This infrared window is ideal for both indoor and outdoor applications, making it suitable for use in diverse environments.
Product Information
Standard Information
-
Manufacturer: Fluke
-
MPN: FLK-100-CLKT
Technical Specifications
-
Viewing Aperture Diameter: 89 mm
-
Crystal Insert Size: 1.97 in
-
Window Thickness: 2 mm
-
Viewing Aperture Area: 6322 sq-mm
-
Max Operating Temperature: 1400 °C for the optic, 659 °C for the body, 250 °C for gaskets
-
Standards: UL Listed, CSA Certified, IEC 62271, ANSI C37.20.7
-
NEMA Rating: Type 3/12
