Product Description

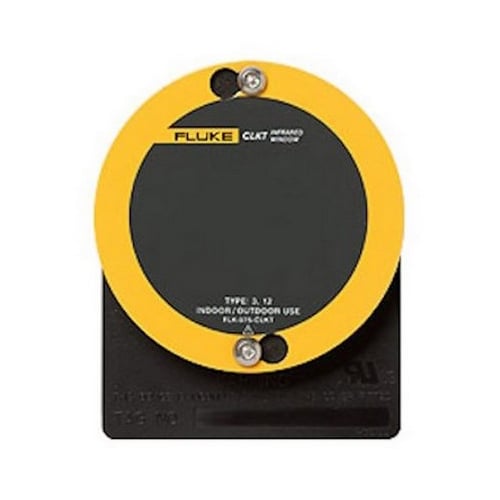

The Fluke FLK-075-CLKT is an infrared window designed for use with thermal imaging cameras. This device features a size of three inches with a viewing aperture diameter of two point seven inches, making it suitable for both indoor and outdoor applications.
- IP rating of sixty-five for robust protection against dust and water.
- Can withstand electric arcs up to fifty kA for thirty cycles, enhancing safety.
- Utilizes ClirVu coating to protect against moisture and harsh environments.
Product Highlights
This infrared window allows for safe temperature measurements without opening electrical enclosures, reducing downtime and risk of electric shock.
Product Information
Standard Information
-
Catalog Number: FLK-075-CLKT
-
Manufacturer: Fluke
Technical Specifications
-
Crystal Insert Size: 2.96 inches
-
Viewing Aperture Diameter: 2.7 inches
-
Window Thickness: 0.08 inches
-
NEMA Rating: Type 3/12
-
Maximum Operating Temperature: 1400 degrees Celsius
-
Pull-Out Strength: Up to 1388 pounds
-
Application: Indoor and outdoor
-
Compliance: UL Listed, CSA Certified
