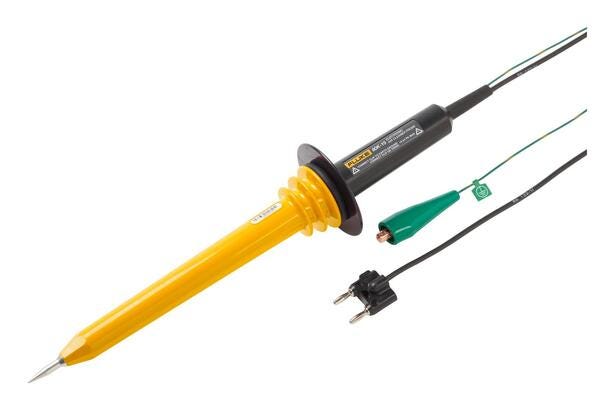

Fluke 618113 High Voltage Probe 15000V Ac Dc

Product Description

The FLUKE 618113 is a high voltage probe designed to extend the voltage measuring range of a standard AC/DC voltmeter up to 15,000 volts peak, covering both AC and DC measurements at Overvoltage Category I. Built for use with voltmeters that have a 10 megohm input impedance, this probe delivers high accuracy readings on energy-limited high voltage circuits. It is intended for use inside equipment such as televisions and photocopy machines where isolated, low-energy high voltage circuits are present. Electrical technicians and field service professionals working on high voltage electronics use this probe as a direct voltmeter accessory.

This probe is rated for Overvoltage Category I applications only, meaning it is limited to energy-restricted circuits found within enclosed equipment. Typical use cases include servicing high voltage supplies inside consumer electronics, imaging equipment, and similar apparatus. It is not rated for power distribution systems, utility connections, or any application outside Category I energy-limited circuits. When paired with a compatible voltmeter, it provides a reliable and accurate extension of standard measurement capability into the high voltage range.

Key Features

• Extends voltmeter range up to 15,000 volts peak AC or DC
• Overvoltage Category I rated for energy-limited circuit measurements
• Optimized for use with voltmeters having 10 megohm input impedance
• Suitable for high voltage circuits inside televisions, copiers, and similar equipment
• Not rated for power distribution or utility-connected systems

Compatibility

Designed for use with AC/DC voltmeters featuring a 10 megohm input impedance. Intended for energy-limited, Overvoltage Category I circuits within enclosed equipment only.

Installation Notes

This probe is installed and used by qualified electrical technicians familiar with high voltage safety procedures. Before connecting the probe, de-energize and discharge the circuit under test whenever possible, and follow all applicable safety protocols for high voltage work. Do not use this probe on power distribution systems, utility feeds, or any circuit outside Overvoltage Category I. Always inspect the probe and leads for damage before each use.

Technical Specifications

• Maximum Voltage: 15,000 volts peak AC or DC
• Overvoltage Category: Category I
• Required Voltmeter Input Impedance: 10 megohm

Standard Information

• Brand: FLUKE
• Manufacturer Part Number: 618113
