Product Description

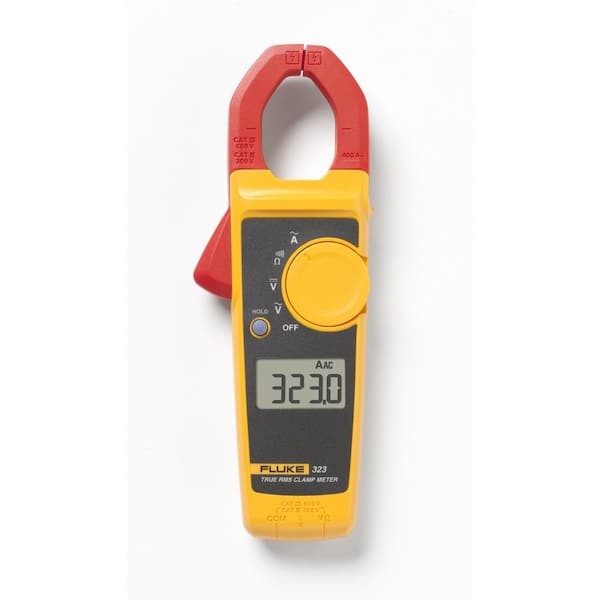

The Fluke 5065521 is a clamp meter with LCD display. With a slim design and back-lit display, the True-rms meter is used in residential and commercial situations. The Fluke 323 clamp meter is a good basic troubleshooting tool for commercial and residential electricians.
- 4 A ac current measurement
- 6 V ac and dc voltage measurement
- True-rms ac voltage and current for accurate measurements on non-linear signals
Product Highlights
The clamp meter measures AC current to 400 A and AC/DC voltage to 600 V. It provides True RMS AC voltage and current for accurate measurements. The meter measures resistance to 4 k
with continuity detection.
Product Information
Standard Information
-
Brand: FLUKE
-
Manufacturer Part Number: 5065521
-
Country of Origin: CN
Technical Specifications
-
Product Type: Clamp Meter
-
Clamp Meter Type: Current and Voltage Tester
-
Functions Measured: AC Voltage; DC Voltage; AC Current; Resistance; Continuity
-
Display Type: LCD
-
Power Source: Battery
-
Maximum AC Current Measurement: 400A
-
Maximum AC Voltage Measurement: 600V
-
Maximum DC Voltage Measurement: 600V
-
AC Current Measurement Resolution: 0.1A
-
AC Voltage Measurement Resolution: 0.1V
-
DC Voltage Measurement Resolution: 0.1V
-
Best AC Current Accuracy: 2%
-
Best AC Voltage Accuracy: 1.5%
-
Best DC Voltage Accuracy: 1%
-
Best Resistance Measurement Accuracy: 1%
-
Safety Category: CAT IV 300 V; CAT III 600 V
-
Safety Category Level: CAT IV; CAT III
-
Safety Category Voltage: 300; 600V
-
Dimensions: 207 x 75 x 34mm
-
Width: 75mm
-
Height: 34mm
-
Length: 207mm
-
Model Number: FLUKE-323
-
Maximum Operating Temperature: +50
C
-
Minimum Operating Temperature: -10
C
-
AC current Range: 400.0 A
-
AC current Accuracy: 2%
5 digits (45 Hz to 65 Hz)
2.5%
5 digits (65 Hz to 400 Hz)
-
DC current Range: -
-
DC current Accuracy: -
-
AC voltage Range: 600.0 V
-
AC voltage Accuracy: 1.5%
5 digits
-
DC voltage Range: 600.0 V
-
DC voltage Accuracy: 1.0%
5 digits
-
Resistance Range: 400.0
/ 4000
-
Resistance Accuracy: 1.0%
5 digits
-
Continuity: 70
-
Capacitance: -
-
Frequency: -
-
AC response: True-RMS
-
Backlight: -
-
Data hold: Yes
-
Contact temperature: -
-
Min/Max: -
-
Size H x W x D (mm): 207 x 75 x 34
-
Max wire diameter: 30 mm (600 MCM)
-
Weight: 265 g
-
Category rating: CAT III 600 V
CAT IV 300 V
-
Warranty: Two-year
-
Maximum Resistance Measurement: 4000Ω
-
Minimum Resistance Measurement: 400Ω
-
Resistance Measurement Resolution: 10Ω
-
True RMS (TRMS): True
-
Low Impedance (LoZ): False
-
Temperature Measurement: False
-
Auto-Ranging: Yes
-
Data Logging: False
-
Part No: 5065521
-
Alias/AKA: FLUKE-323
-
Unit of Measure: Per Each
-
RoHS: Yes
-
COO: MY
-
ECCN: 3A992
-
Item: 323 400A AC, 600V AC/DC TRUE-RMS CLAMP METER, CAT IV 300V/CAT III 600 V SAFETY RATING
-
OEM: Fluke Electronics Corp (Industrial Div.)
-
OEM #: 5065521
-
Condition: New OEM Original
-
Returnable: No
-
AC Current Accuracy: +/-2.0% + 5 Digits
-
Audible Continuity: Yes
-
Auto Power Off: Yes
-
Bar Graph: No
-
Battery Type: AAA
-
Clamp Meter Jaw Style: Clamp On
-
Country of Origin: China
-
Counts: 6000
-
Digital/Analog: Digital
-
Display: LCD
-

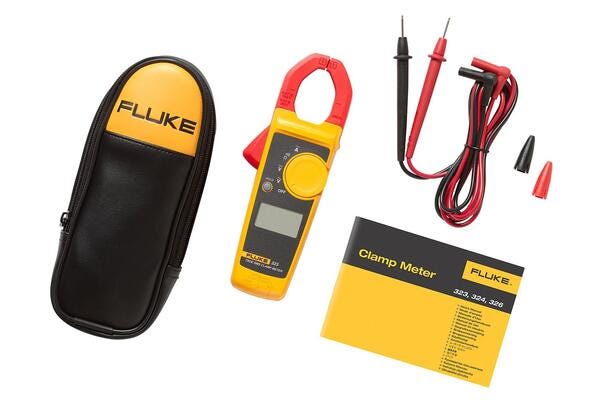

Includes: Display Container, Manual, Soft Case, Test Leads, WEEE Sheet
-
Jaw Capacity: 1.1 in (28mm)
-
Max AC Amps: 400
-
Max AC Volts: 600
-
Max Conductor Size: 600MCM
-
Max DC Volts: 600
-
Max Ohms: 4,000
-
Operating Temperature: 14 Degrees to 122 Degrees F
-
Peak Hold: No
-
Safety Rating: CAT IV 300V, CAT III 600V
