Fluke 2538815 Electricians True Rms Multimeter

Product Description

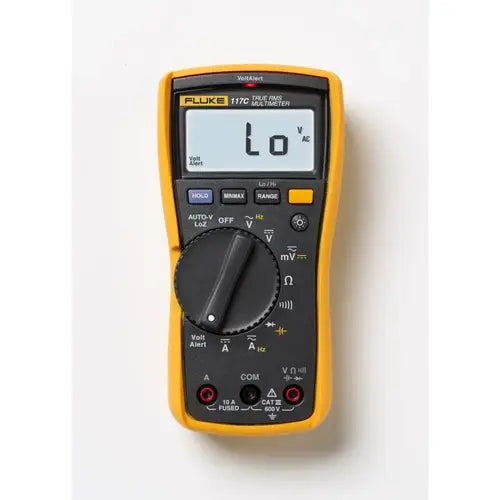

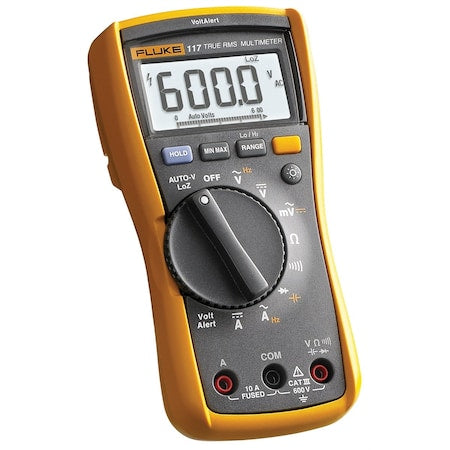

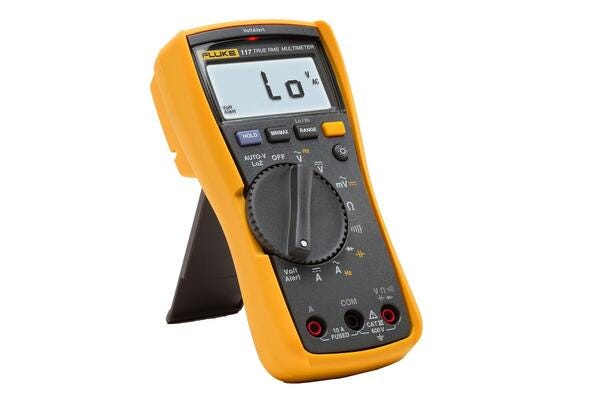

The FLUKE 2538815 is a versatile electrician's multimeter designed to make electrical measurements quick and easy. The Fluke 117 Electricians Multimeter is a compact, CAT III 600 V, True-rms meter that includes an easy-to-use interface with a bright backlight for darker worksites. It saves you time and enables you to move from job to job more quickly.

• Compact, true-rms digital multimeter for electricians
• Integrated non-contact voltage detection keeps you safe
• Prevent false readings from ghost voltage with selectable low-impedance mode

Product Highlights

This reliable tool comes with a non-contact voltage feature, allowing users to quickly identify live wires without making direct contact.

Product Information

Standard Information

• Brand: FLUKE
• Manufacturer Part Number: 2538815
• Country of Origin: China

Technical Specifications

• Maximum voltage between any terminal and earth ground: 600 V
• Safety: IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V
• Fuse for A input: 11 A, 1000 V FAST Fuse (Fluke PN 803293)
• Display: Digital: 6,000 counts, updates 4 per second
• Bar graph: 33 segments, updates 32 per second
• Operating temperature: -10 C to +50 C
• Storage temperature: -40 C to +60 C
• Battery type: 9 volt Alkaline, IEC 6LR61
• Battery life: 400 hours typical, without backlight
• DC millivolts Range/resolution: 600.0 mV / 0.1 mV
• DC millivolts Accuracy: ([% of reading] + [counts]): 0.5% + 2
• DC volts Range/resolution: 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V
• DC volts Accuracy: ([% of reading] + [counts]): 0.5% + 2
• Auto volts Range/resolution: 600.0 V / 0.1 V
• Auto volts Accuracy: 2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)
• AC millivolts True RMS Range/resolution: 600.0 mV / 0.1 mV
• AC millivolts True RMS Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
• AC volts True RMS Range/resolution: 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V
• AC volts True RMS Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
• Continuity Range/resolution: 600 / 1
• Continuity Accuracy: Beeper on < 20 , off > 250 detects opens or shorts of 500 s or longer.
• Ohms Range/resolution: 600.0 / 0.1 6.000 k / 0.001 k 60.00 k / 0.01 k 600.0 k / 0.1 k 6.000 M / 0.001 M
• Ohms Accuracy: 0.9% + 1
• Diode test Range/resolution: 2.00 V / 0.001 V
• Diode test Accuracy: 0.9% + 2
• Capacitance Range/resolution: 1000 nF / 1 nF 10.00 F / 0.01 F 100.0 F / 0.1 F 9999 F / 1 F 100 F to 1000 F
• Capacitance Accuracy: 1.9% + 2
• Lo-Z capacitance Range: 1 nF to 500 F
• Lo-Z capacitance Accuracy: 10% + 2 typical
• AC amps True RMS (45 Hz to 500 Hz) Range/resolution: 6.000 A / 0.001 A 10.00 A / 0.01 A
• AC amps True RMS (45 Hz to 500 Hz) Accuracy: 1.5% + 3 20 A continuous overload for 30 seconds max
• DC amps Range/resolution: 6.000 A / 0.001 A 10.00 A / 0.01 A
• DC amps Accuracy: 1.0% + 3 20 A continuous overload for 30 seconds max
• Hz (V or A input) Range/resolution: 99.99 Hz / 0.01 Hz 999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 Hz 50.00 kHz / 0.01 Hz
• Hz (V or A input) Accuracy: 0.1% + 2
• Display Type: Digital
• Probe Type: Probe Leads
• Maximum DC Voltage Measurement: 600 V dc
• Maximum AC Voltage Measurement: 600 V ac
• Best Dc Voltage Accuracy: 0.05%+2 V dc
• Measurement Functions: AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Insulation Test, Resistance, Temperature
• Safety Category: CAT III 600V
• Power Source: Battery
• Housing Color: Yellow
