Product Description

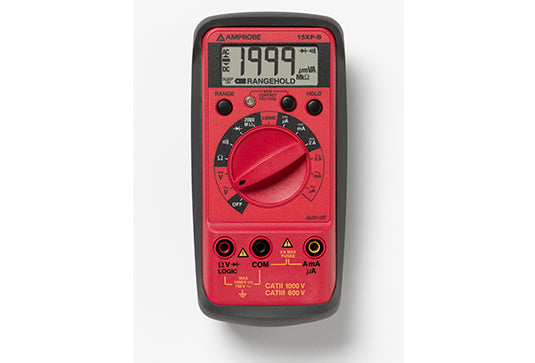

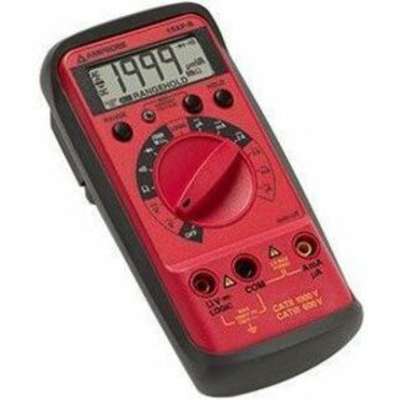

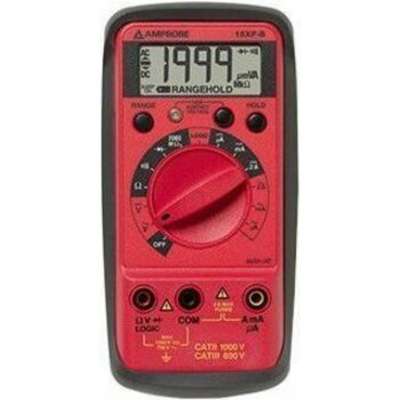

The FLUKE 15XP-B is a digital multimeter designed for electronics engineers and field service technicians. It effectively measures both AC and DC voltage, current, resistance, and also performs diode and TTL logic tests. This multimeter features a three and a half digit LCD that allows for a maximum reading of one thousand nine hundred ninety-nine. It includes non-contact voltage detection, which enhances safety and usability in various environments.
- Diode test functionality for effective component troubleshooting.
- TTL logic test capability for digital circuit applications.
- Non-contact voltage detection range from seventy to six hundred volts AC.
Product Highlights

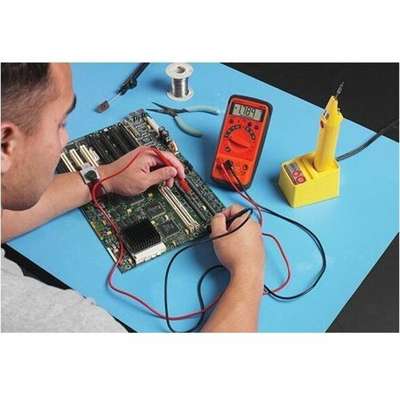

The multimeter is essential for accurate electrical measurements and is suitable for both professional and educational settings.
Product Information
Standard Information
Technical Specifications
-
Meter Type: Digital
-
Display: Three and a half digit LCD, maximum reading of 1999
-
Max AC Voltage Measurement: 600 V
-
Max DC Voltage Measurement: 600 V
-
Max AC Current Measurement: 2 A
-
Max DC Current Measurement: 2 A
-
Max Resistance Measurement: 2000 MΩ
-
AC Voltage Ranges: 200.0 mV, 2.000 V, 20.00 V, 200.0 V, 600 V
-
DC Voltage Ranges: 200.0 mV, 2.000 V, 20.00 V, 200.0 V, 600 V
-
AC Current Ranges: 200.0 µA, 2.000 mA, 20.00 mA, 200.0 mA, 2 A
-
DC Current Ranges: 200.0 µA, 2.000 mA, 20.00 mA, 200.0 mA, 2 A
-
Resistance Ranges: 200.0 Ω, 2.000 kΩ, 20.00 kΩ, 200.0 kΩ, 2.000 MΩ, 20.00 MΩ, 2000 MΩ
-
Continuity: Audible indication for less than 25 Ω
-
Non-contact Voltage Indicator: Detects voltage from 70 V to 600 V AC
-
Logic Test: TTL at 20 MHz
-
Measurement Rate: Two times per second
-
Operating Environment: 0 °C to 50 °C at less than 70 % R.H.
-
Power: One standard nine-volt battery
-
Diode Test Current: 1.2 mA (approximate)
-
Safety Rating: CAT III 600V
-
Frequency Measurement: 20 MHz
-
Measures: Voltage, current, resistance, capacitance, frequency, temperature
-
Dimensions: Height of 6.1 inches, Width of 2.8 inches, Depth of 1.3 inches
