Product Description

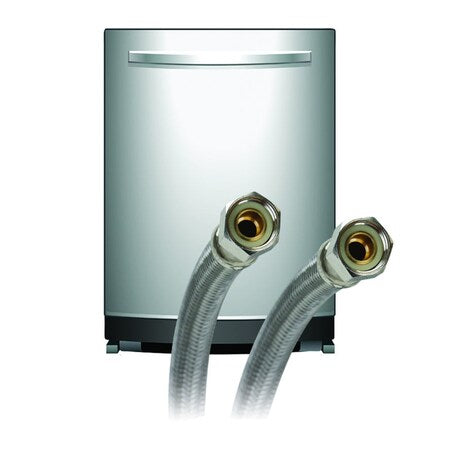

The FLUIDMASTER 6w48 is a 48-inch braided stainless steel dishwasher supply connector designed for residential dishwasher installations. It features 3/8-inch compression fittings on both ends and includes a pre-attached elbow fitting to simplify tight-space connections behind the appliance. The braided stainless steel construction provides durability and resistance to kinking. This connector is installed by licensed plumbers or experienced tradespeople during new dishwasher installations or appliance replacements where the existing supply line is damaged or undersized.
This connector is suited for residential kitchen plumbing where a dishwasher must be connected to the hot water supply line. The 48-inch length accommodates standard under-sink cabinet depths and provides enough slack for appliance positioning. The included elbow is especially useful when the water inlet valve on the dishwasher is oriented in a direction that makes a straight connection difficult. Both compression ends connect to standard 3/8-inch supply stops and dishwasher inlet valves without requiring solder or additional fittings.
Key Features

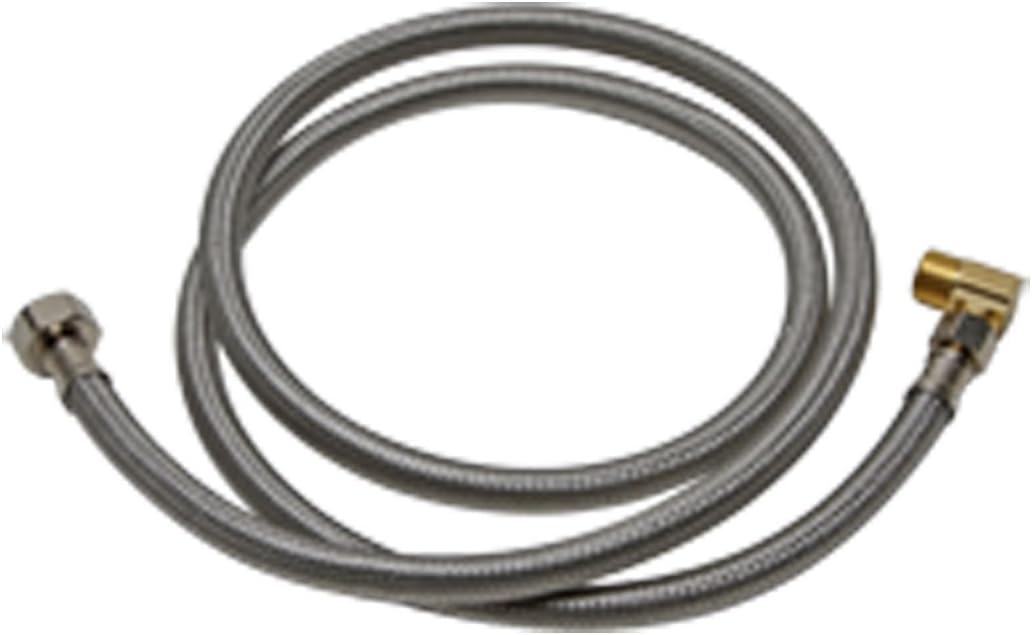

- 48-inch overall length for flexible routing in standard cabinet installations
- 3/8-inch compression x 3/8-inch compression end connections

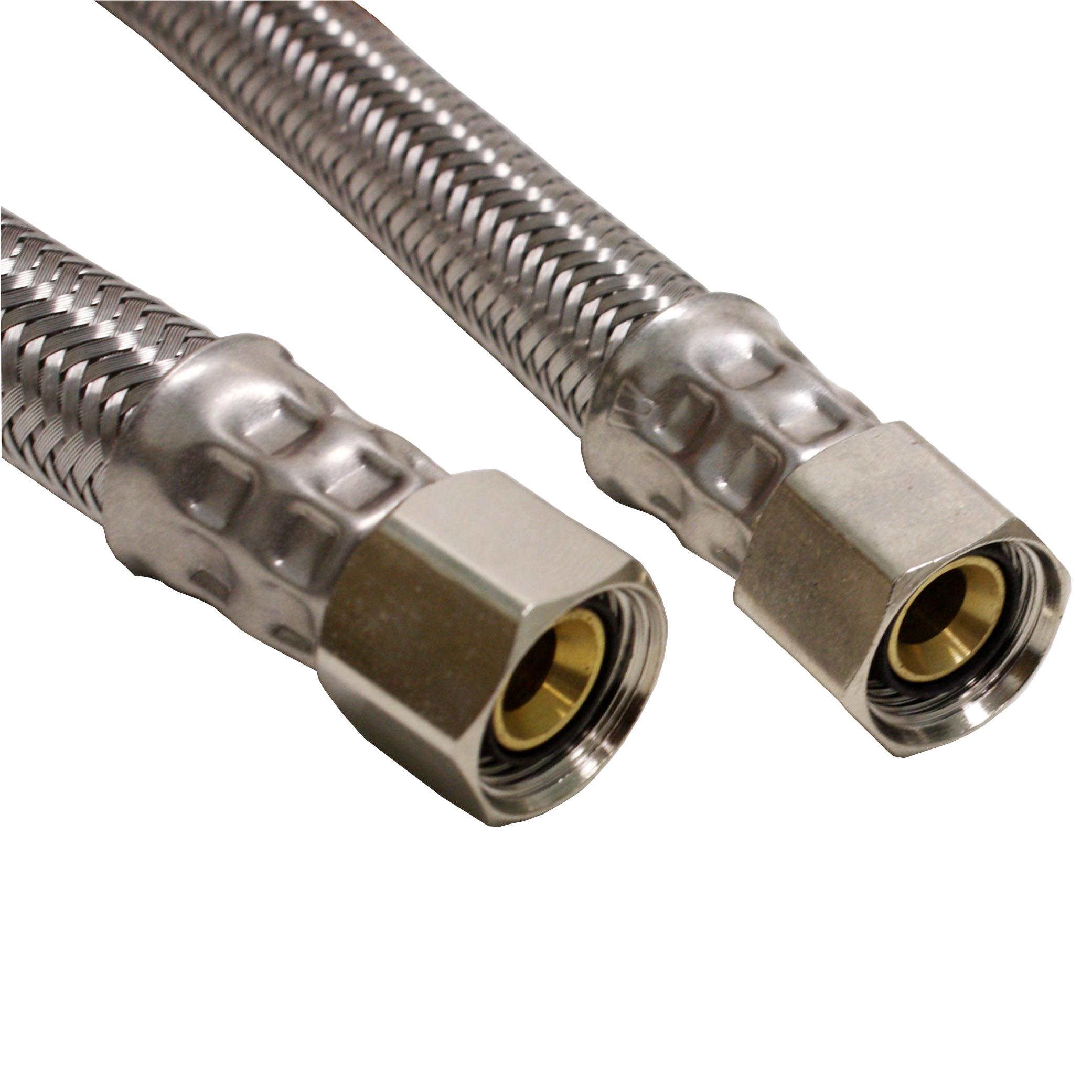

- Braided stainless steel outer jacket resists kinking and physical damage

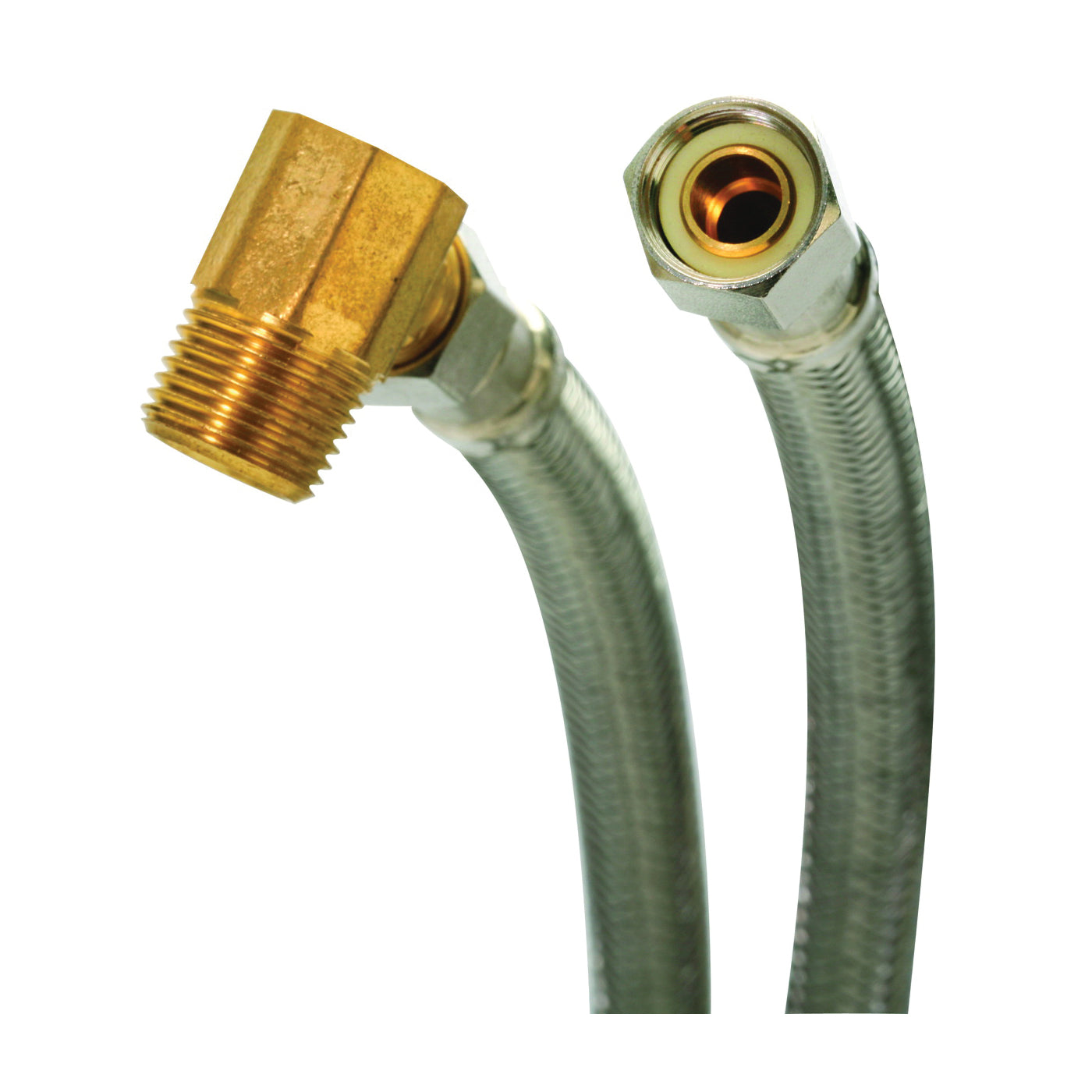

- Includes elbow fitting for tight or angled connection at the dishwasher inlet
- No soldering or specialty tools required for compression-style connections
Compatibility
Designed as an OEM-style replacement dishwasher supply connector for residential installations using 3/8-inch compression supply stops and 3/8-inch dishwasher inlet valves.
Installation Notes
Shut off the hot water supply at the angle stop under the sink before disconnecting any existing supply line. Hand-tighten compression fittings first, then snug with a wrench — do not overtighten, as compression fittings can crack if overstressed. Verify there are no kinks in the line after the dishwasher is pushed into its final position. Installation should comply with applicable local plumbing codes and IPC guidelines for appliance connections.
Technical Specifications
-
Length: 48 inches
-
Inlet Connection: 3/8 inch compression
-
Outlet Connection: 3/8 inch compression
-
Jacket Material: Braided stainless steel
-
Includes: Elbow fitting
-
UPC: 039961001160
Standard Information
-
Brand: FLUIDMASTER
-
Manufacturer Part Number: 6w48
