Fluidmaster 12IM60 Ice Maker Connector 60 inch

Product Description

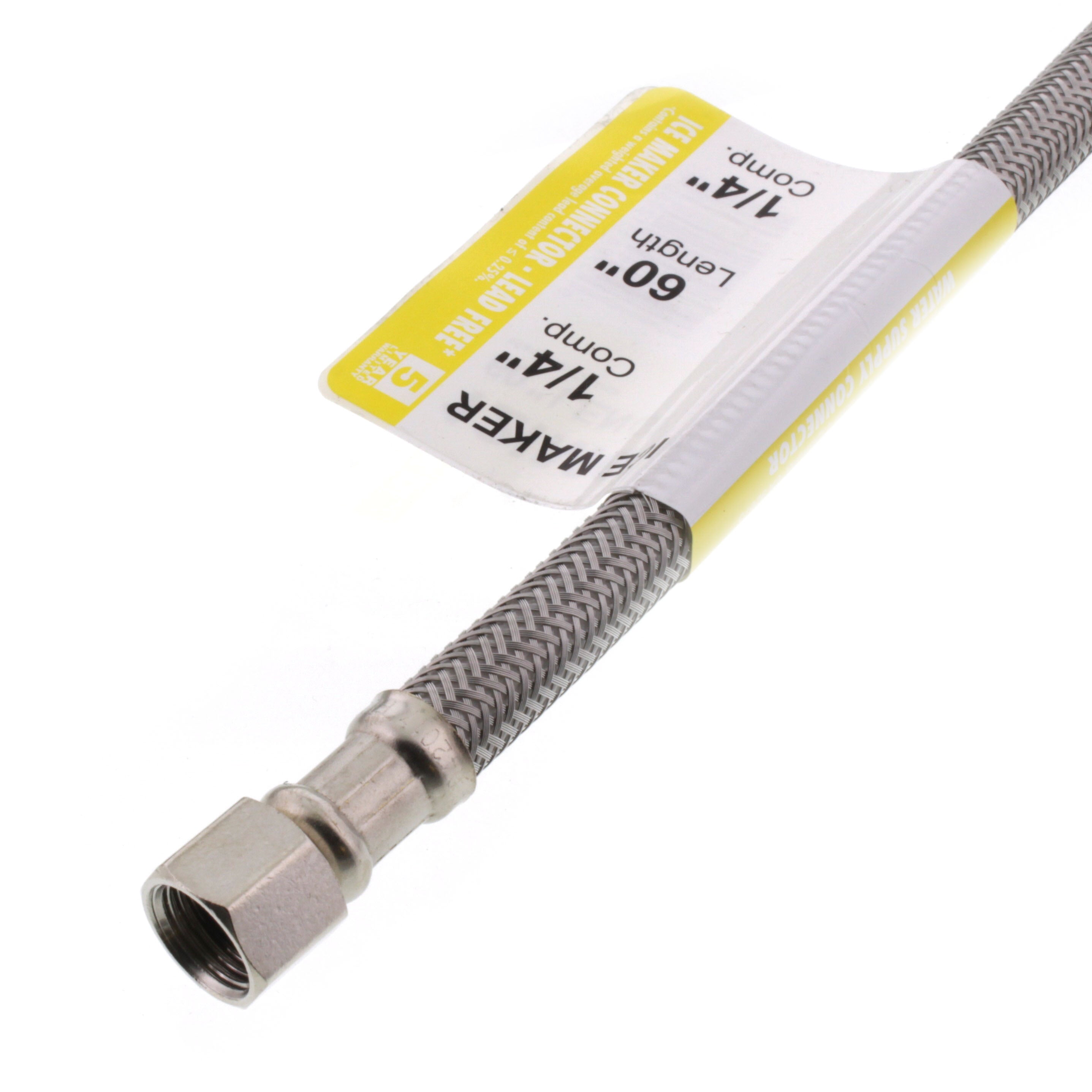

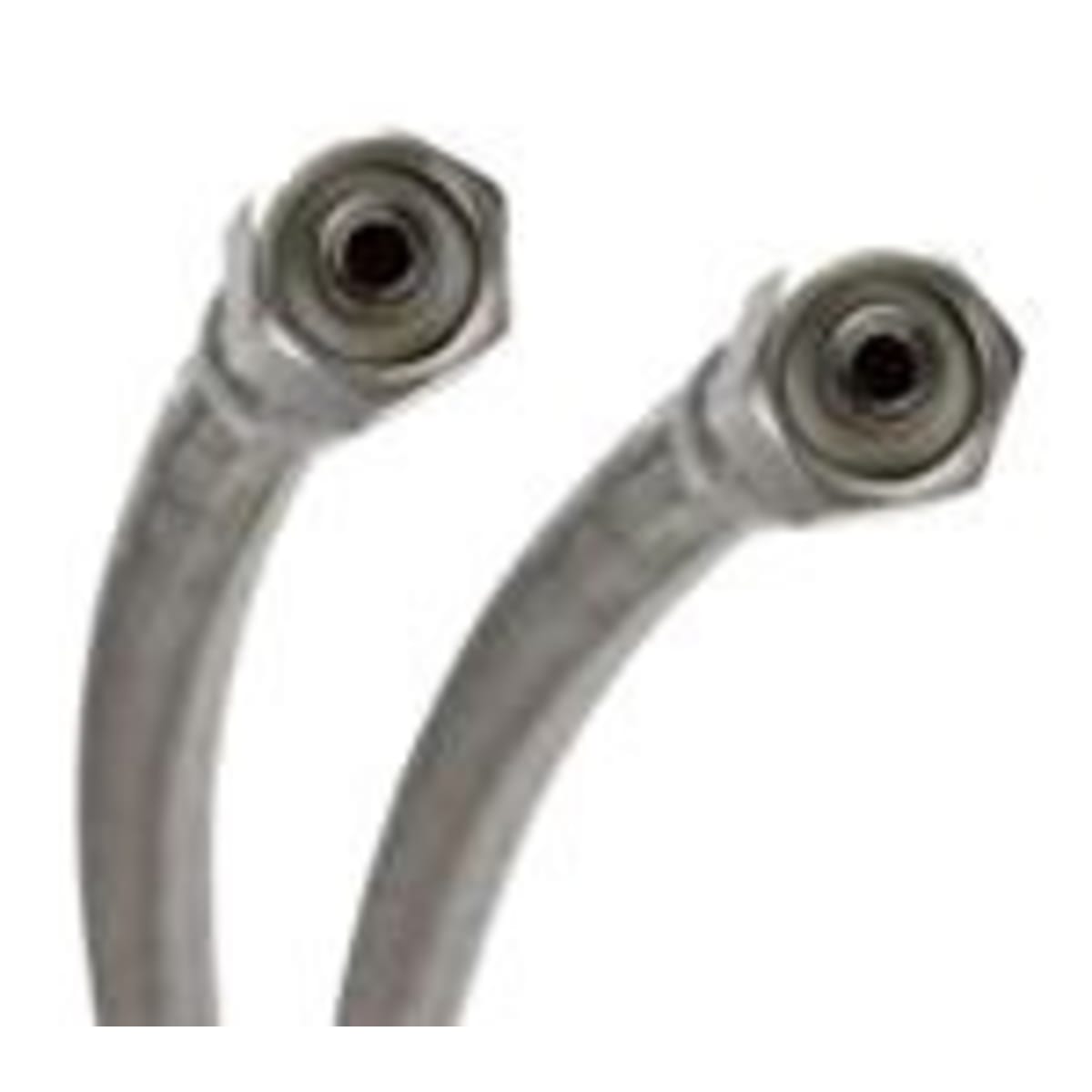

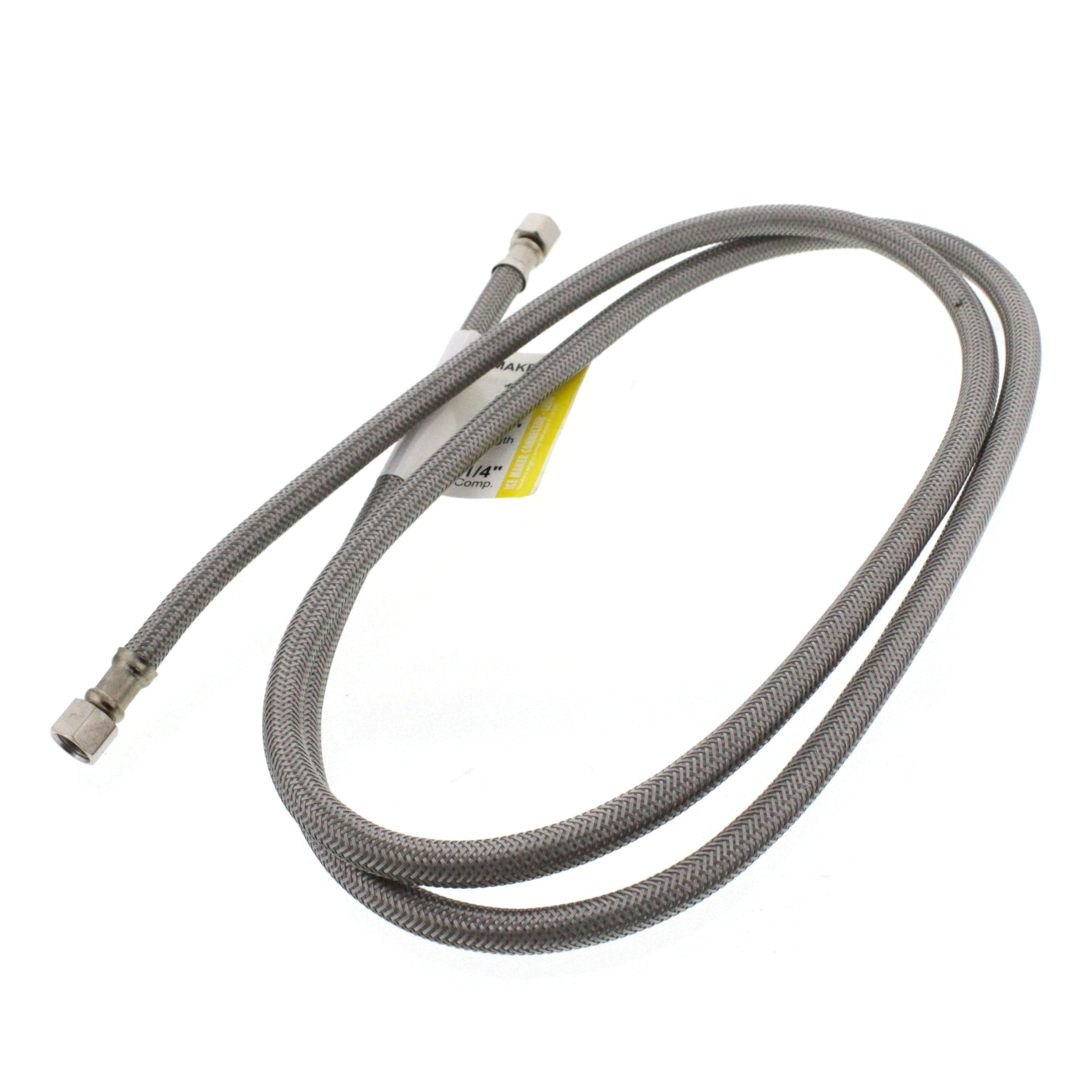

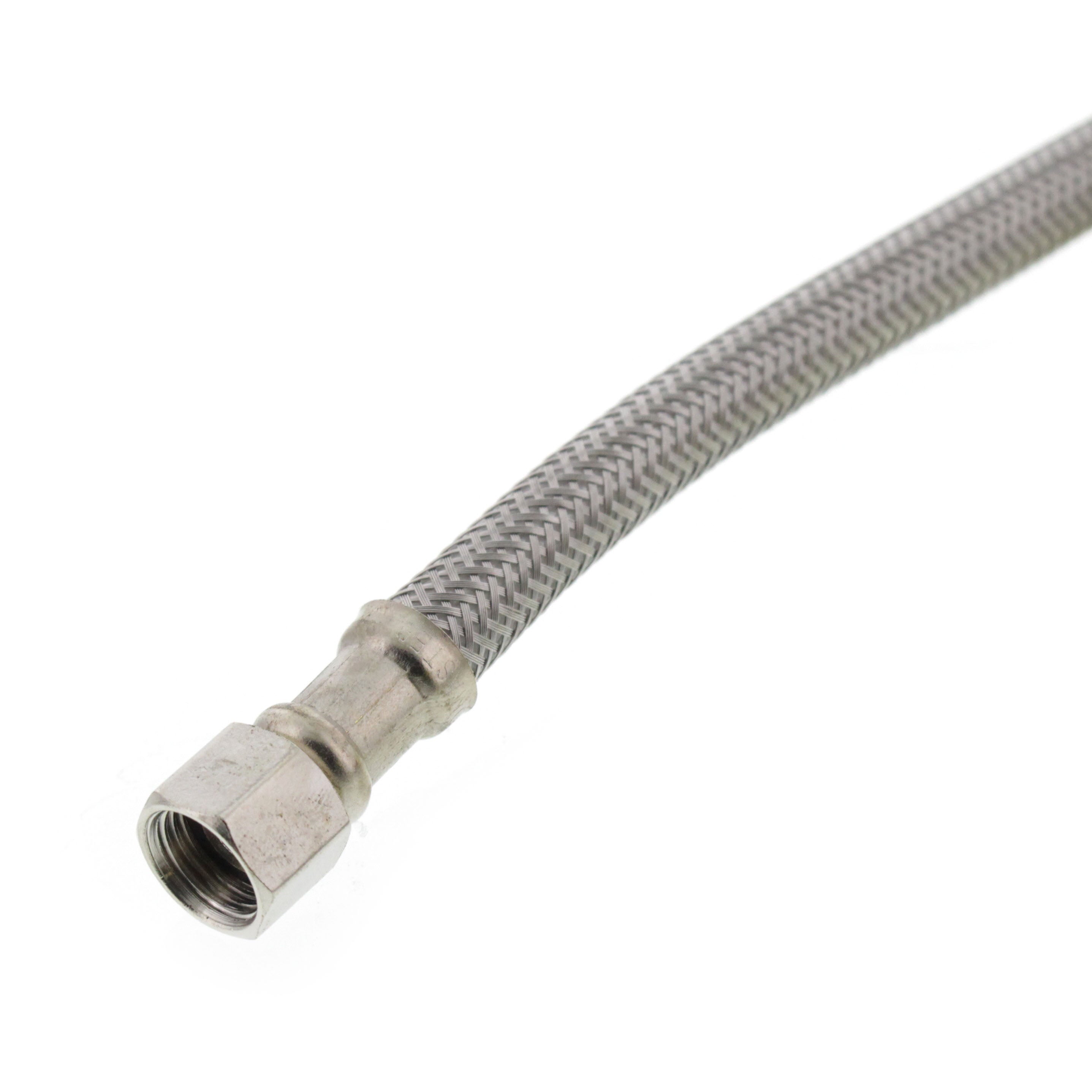

The Fluidmaster 12IM60 ice maker connector connects your icemaker to the wall water supply. It features a tough polymer core covered with braided stainless steel wire. The connector has a 1/4-Inch female compression thread by 1/4-Inch female compression thread with an efficient flow rate.

• Braided stainless steel construction
• 60-inch length
• Nickel plated brass hex nuts for easy tightening

Product Highlights

This Fluidmaster ice maker connector is highly flexible, durable and won't kink or crease, even in tight spaces.

Product Information

Standard Information

• Brand: FLUIDMASTER
• Manufacturer Part Number: 12IM60
• Country of Origin: China

Technical Specifications

• Color: Stainless Steel
• Material: Stainless Steel
• Model Info: 12IM60
• Thread Size: 0.25 inch
• Material Type: Stainless Steel
• Exterior Finish: Brass
• Number of Pieces: 1
• Included Components: Braided stainless steel connector
• Applicable Standard: ASME A112.18.6/CSA B125.6, NSF 61, IAPMO, IPC, NPCC
• End Connection: 1/4 Inch Compression x 1/4 Inch Compression
• End Fitting Material: Nickel Plated Brass Alloy
• Length: 60 Inch
• Pressure Rating: 125 PSI
• Temperature Rating: 40 to 150 Deg F
• Tubing Material: Santoprene Core Covered with Braided 304 Stainless Steel Wire
• Type: Ice Maker Supply
• Brand: FLUIDMASTER
• MPN: 12IM60
• Nominal Size: 1/4 inch x 1/4 inch
• Inlet Connection Size: 1/4 inch
• Connection Type: Compression
• Inlet Connection Type: Compression
• Outlet Connection Type: Compression
• Outlet Connection: 1/4 in
