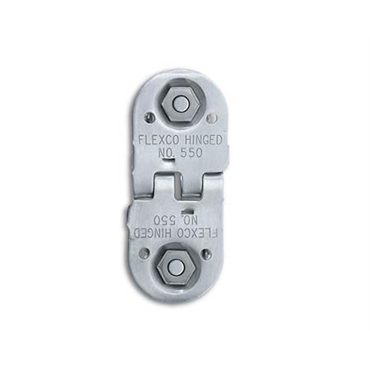

Flexco 550J60NC Bolt Hinged Fastener - 60 in Belt Width - 40054

Product Description

The Flexco 550J60NC Bolt Hinged Fastener is designed for extendable belts, particularly where smaller pulley diameters are used. This fastener is made of plated steel, providing durability and reliability. The zinc plating helps to resist mild corrosion, making this fastener suitable for various applications in material handling. This fastener accommodates a belt width of sixty inches and offers a belt thickness range from one quarter inch to five eighths inch.

• Hinge pin included with each fastener
• Minimum pulley diameter required is nine inches
• Maximum belt tension of three hundred pounds per inch

Product Highlights

This fastener provides essential support and stability for conveyor systems in industrial settings, ensuring efficient operation.

Product Information

Standard Information

• Brand: Flexco
• Part Number: 550J60NC

Technical Specifications

• Belt Width: 60 in
• Belt Thickness Range: 1/4 in to 5/8 in
• Hinge Pin Diameter: 0.25
• Hinge Pin Material: Nylon Covered Steel Cable
• Material: Steel
• Fastener Type: Bolt Hinged
• Fastener Series: 550
• Weight: 5.571 LB
