Flange Wizard PG-602-1.430 Plasma Cutting Guide

Product Description

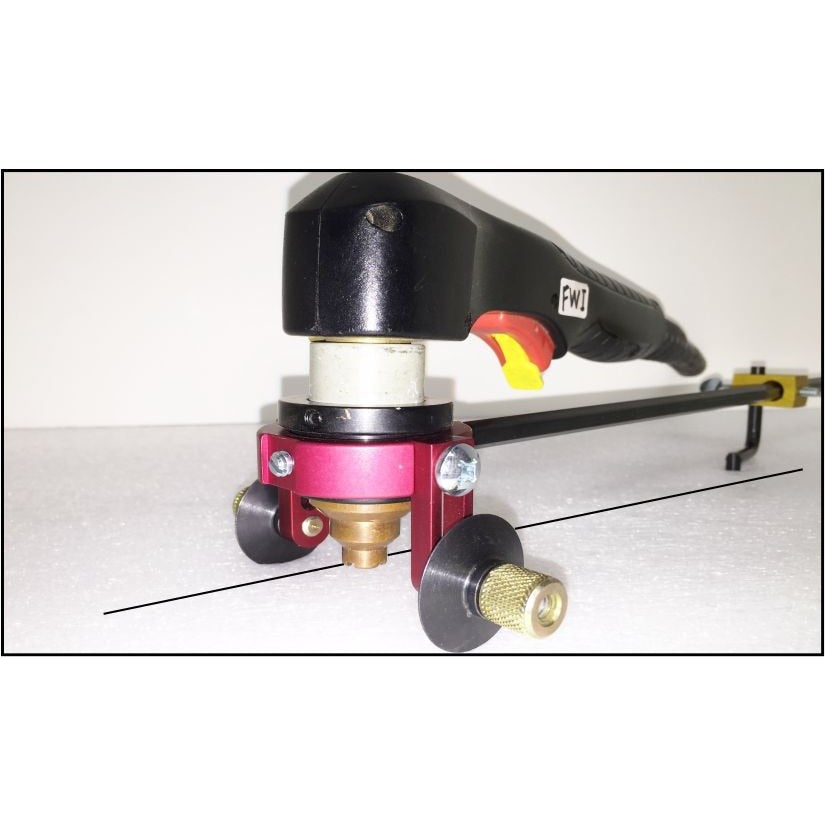

The FLANGE WIZARD PG-602-1.430 is a plasma cutting guide designed to help fabricators and pipe fitters make accurate cuts on metal plate and pipe. It works with plasma torches and cutting torches to guide cuts for straight lines, circles up to 36 inches in diameter, irregular shapes, bevels, and patterns. The kit includes a 62-1.430 bushing sized to match common plasma torch bodies, which seats in the guide to keep the torch centered and eliminate drift during cutting. The result is a repeatable, clean cut without the need for scribed templates or manual freehand technique.

This guide is intended for use in fabrication shops, field pipe work, and structural steel applications where precise torch cuts are required. It suits both stationary and portable plasma cutting setups. Pipefitters, ironworkers, and metal fabricators working on circle cuts, gussets, flanges, and custom plate profiles will find this tool useful for maintaining consistent geometry across repeated cuts. The included bushing is matched to a 1.430-inch torch body diameter.

Key Features

• Cuts circles up to 36 inches in diameter
• Guides plasma or cutting torch for straight lines, bevels, and irregular shapes
• Includes a 62-1.430 bushing sized to 1.430-inch torch body diameter for a precise fit
• Eliminates freehand drift for cleaner, more consistent cuts
• Sold as a single unit ready for field or shop use

Compatibility

Designed for use with plasma torches and cutting torches with a 1.430-inch body diameter. Match bushing size to your specific torch model to ensure proper fit and cut accuracy.

Installation Notes

Ensure the plasma cutter is fully powered off and the torch is cool before attaching the guide bushing. Seat the bushing firmly into the guide before beginning any cut. Follow applicable AWS and shop safety standards for plasma cutting operations, including appropriate PPE for arc flash, UV exposure, and metal spatter. Do not use the guide on a torch body diameter other than the rated 1.430-inch size without the correct matching bushing.

Technical Specifications

• Maximum Circle Cut Diameter: 36 inches
• Bushing Diameter: 1.430 inches
• Package Length: 17.25 inches
• Package Width: 17.25 inches
• Package Height: 17.25 inches
• Weight: 1.23 pounds
• UPC: 672435826021
• Sold As: Each

Standard Information

• Brand: FLANGE WIZARD
• Manufacturer Part Number: PG-602-1.430
