First Company 6HBC3-LH HBC Series 600 CFM Horizontal Fan Coil Left Hand

Product Description

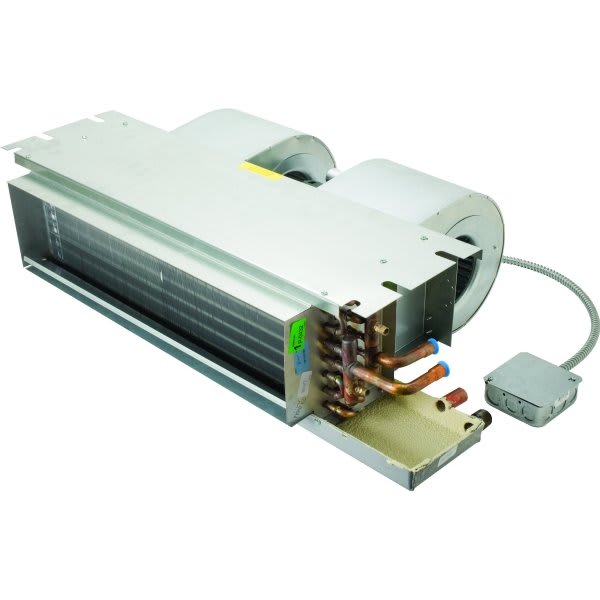

The First Company 6HBC3-LH is a concealed ceiling fan coil designed for efficient air handling in tight spaces. This horizontal fan coil is part of the HBC Series, offering a maximum air flow of 600 CFM, making it suitable for various applications. The seamless copper tubes and headers ensure durability and effective heat transfer.

• Designed for fully concealed applications
• Insulated with Tuf-Skin for sound dampening
• Features a positive slope drain pan for easy drainage

Product Highlights

This fan coil provides essential air flow for heating and cooling systems, making it reliable for hydronic applications.

Product Information

Standard Information

• Product Category: Hydronic Air Handler
• Country of Origin: US

Technical Specifications

• Type: Fan Coil
• Product Line: HBC Series
• Configuration: Horizontal
• Maximum Air Flow: 600 CFM
• Width: 40 1/8 inches
• Depth: 21 inches
• Height: 10 inches
• Amperage Rating: 1.9 A
• Flow Rate: 600 CFM
• Frequency Rating: 60 Hz
• Material: Aluminum/Copper
• Motor HP: 1/8 hp
• Motor RPM: 1550 rpm
• Mounting Type: Ceiling
• Refrigerant Type: R-410A
• Voltage Rating: 120 VAC
• Connection Type: Left
• Package Quantity: 1
