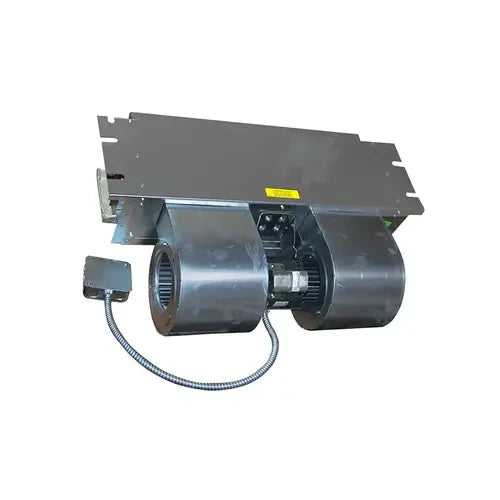

FIRST COMPANY FIRST COMPANY 450603L Horizontal Ceiling Mount Air Handler 1/8 HP 600 CFM
FIRST COMPANY FIRST COMPANY 450603L Horizontal Ceiling Mount Air Handler 1/8 HP 600 CFM

FIRST COMPANY 450603L Horizontal Ceiling Mount Air Handler 1/8 HP 600 CFM

FIRST COMPANY
Brand: FIRST COMPANY
SKU: 450603L
Availability: Out Of Stock
$918.00
$918.00
LTL Delivery

This product weighs 54 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The FIRST COMPANY 450603L is a horizontal ceiling-mount hydronic air handler rated at 600 CFM with a 3-row cooling coil and left-hand orientation. It uses a 120 VAC single-phase blower motor (1/8 HP, 1550 RPM) and requires no refrigerant, intended for chilled water or hot water systems. The unit has a compact footprint (21.0 x 40.1 x 10.0 inches) and is designed for concealed ceiling installation.

  • 600 CFM airflow with a 3-row cooling coil configuration suitable for chilled or hot water (hydronic) systems
  • 120 VAC single-phase blower motor, 1/8 HP, 1550 RPM; electrical draw 1.9 A, 60 Hz, single phase
  • Left-hand coil connection, copper tube coils with 5/8 inch sweat connections, sloped insulated drain pan with primary and secondary drains

Key Features

  • Horizontal hydronic ceiling fan coil
  • 600 CFM airflow
  • 3-row coil
  • 1/8 HP blower motor
  • Left-hand coil connection
  • No refrigerant required
Technical Specifications
Product Type
Horizontal ceiling mount air handler / concealed fan coil
Equipment Type
Hydronic (chilled water / hot water)
Airflow (CFM)
600
Coil Configuration
3-row
Coil Material
Copper tube coils
Coil Connection
5/8 inch (sweat)
Unit Orientation
Left-hand
Input Voltage
120 VAC
Amps
1.9 A
Phase
Single
Frequency
60 Hz
Blower Motor Power
1/8 HP
Blower Motor Speed (RPM)
1550 RPM
Drain Pan
Sloped and insulated with primary and secondary drains
Mounting Type
Ceiling mount (horizontal, concealed)
Dimensions (L x W x H)
21.0 inches x 40.1 inches x 10.0 inches
Weight
54.0 lb
Refrigerant
None required
Country of Origin
USA
Tier / Series
HBC Series
Brand
FIRST COMPANY
Manufacturer Part Number
450603L
