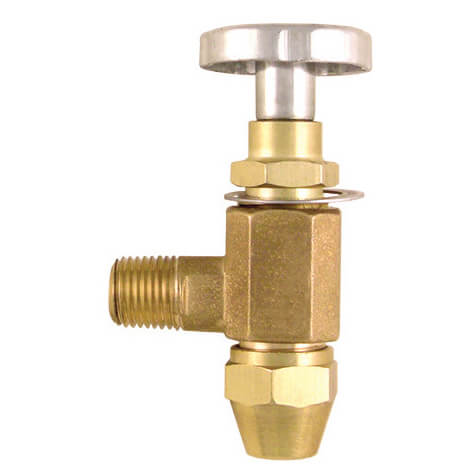

Firomatic 12210 Fusible Burner Angle Valve 3/8 ODF Inlet x 1/4 MPT Outlet

Product Description

The Firomatic 12210 is a fusible burner angle valve with a three-eighths inch ODF inlet and a one-quarter inch MPT outlet. This valve is essential for providing secondary protection at the burner. The durable brass construction ensures reliability and effectiveness in reducing fire damage by automatically shutting off the oil flow from the tank during a fire. These valves are mandated by code for residential oil heating systems in line with NFPA 31.

• Approved for use with kerosene and No. 2 fuel oil
• Manually operated with a standard handwheel closure that functions at an ambient temperature of one hundred sixty-five degrees Fahrenheit
• Listed by Underwriters Laboratories for structural compliance in the U.S. and Canada

Product Highlights

Product Information

Standard Information

• Product Type: Valve
• Valve Type: Angle

Technical Specifications

• Size: 3/8 ODF Inlet x 1/4 MPT Outlet
• Length: 3/4 inches
• Connection Type: ODF x MNPT
• Material: Brass
• Thread Type: Male Pipe Thread
• Inlet Connection Type: Outside Diameter Flared
• Number of Ports: 2
• Outlet Connection Size: 0.25 inches
• Specification Met: CSA, UL
• Manufacturer: Firomatic
• Part Number: 12210
