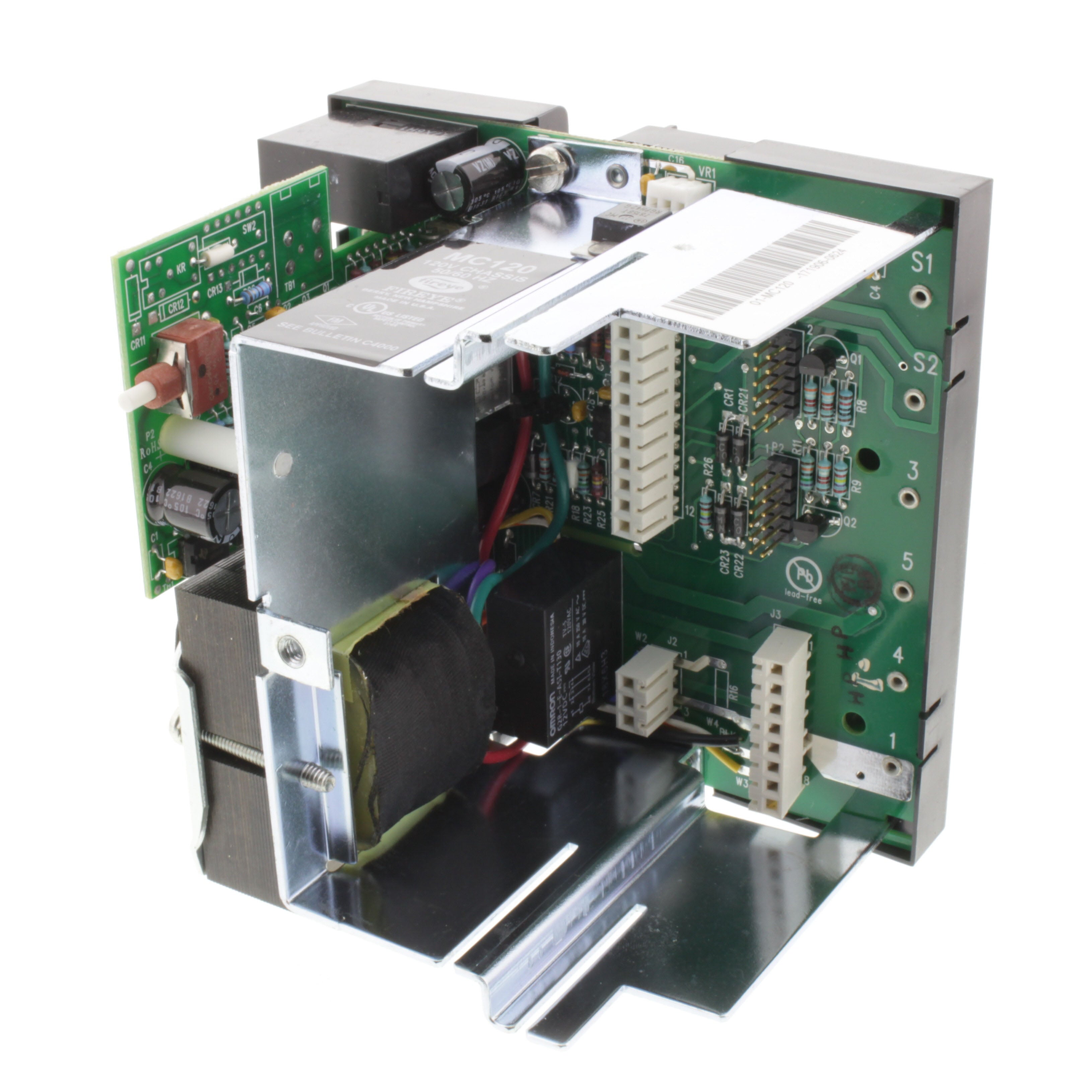

Fireye MC230 50/60 Hz M-Series II Chassis 230V

Product Description

The Fireye MC230 is a modular M-Series II chassis designed for use in flame safeguard control applications. This unit operates at 230 volts and supports both gas and light oil fuels. It is designed for commercial heating and process burners. The MC230 provides automatic ignition and continuous flame monitoring to ensure safety and efficiency in burner operations.

• Compatible with miniature UV scanners and flame rods.
• Features interchangeable programmer and amplifier modules.
• Includes safety lockout for ignition failure or safety shutdowns.

Product Highlights

The MC230 is a compact and modular burner management system ideal for commercial settings. It is engineered for reliable flame monitoring and control.

Product Information

Standard Information

• Manufacturer: Fireye
• Minimum Quantity: 1

Technical Specifications

• MPN: MC230
• Weight: 2.85 pounds
• Length: 5.85 inches
• Width: 7.1 inches
• Height: 6.2 inches
• Operating Hertz: 50/60 Hz
• Voltage: 230V
• Product Type: Chassis
